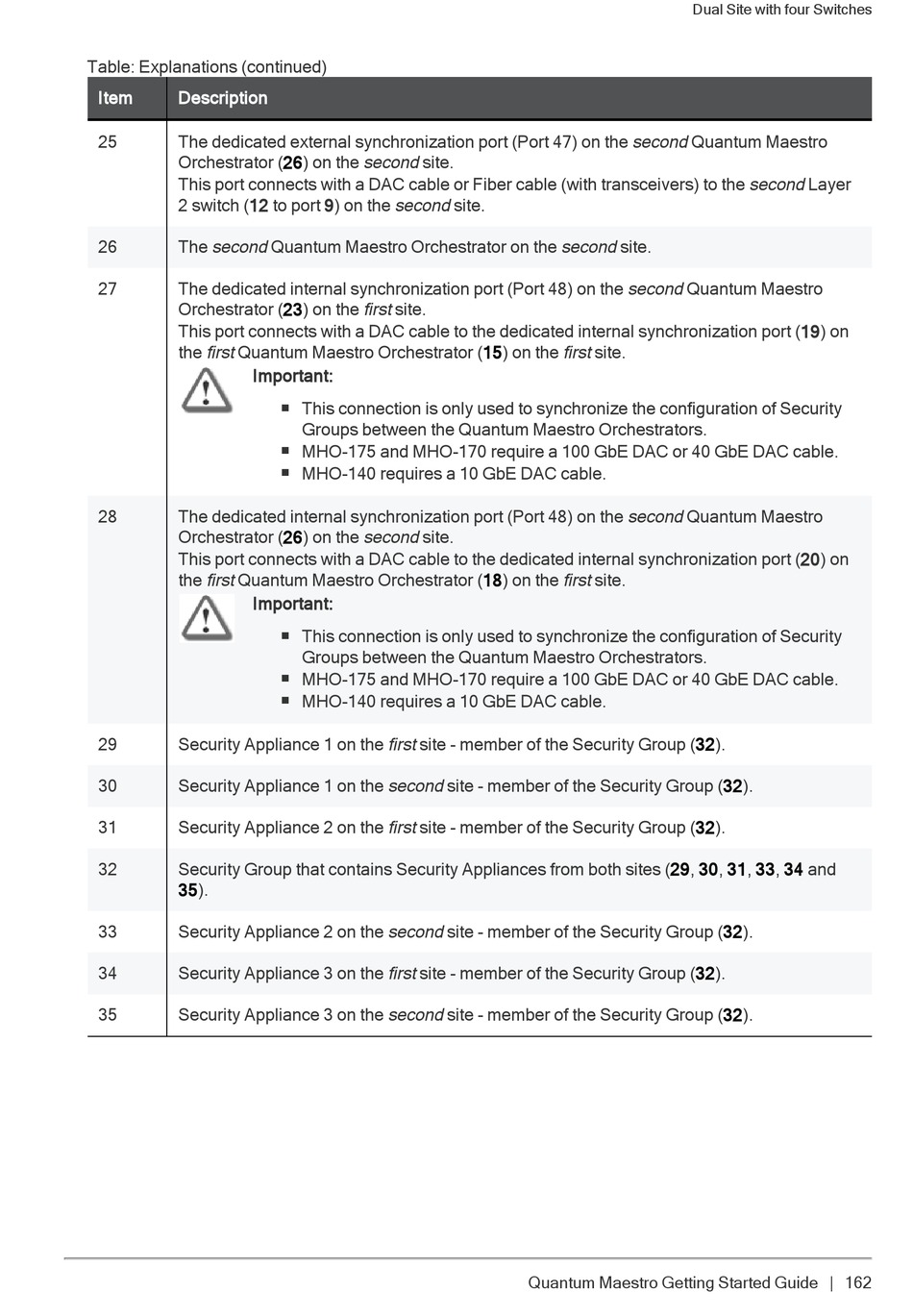

Table: Explanations (continued)
Item Description
25 The dedicated external synchronization port (Port 47) on the second Quantum Maestro
Orchestrator (26) on the second site.
This port connects with a DAC cable or Fiber cable (with transceivers) to the second Layer
2 switch (12 to port 9) on the second site.
The second Quantum Maestro Orchestrator on the second site.
26
27 The dedicated internal synchronization port (Port 48) on the second Quantum Maestro
Orchestrator (23) on the first site.
This port connects with a DAC cable to the dedicated internal synchronization port (19) on
the first Quantum Maestro Orchestrator (15) on the first site.
Important:
28 The dedicated internal synchronization port (Port 48) on the second Quantum Maestro
Orchestrator (26) on the second site.
This port connects with a DAC cable to the dedicated internal synchronization port (20) on
the first Quantum Maestro Orchestrator (18) on the first site.
Important:
Security Appliance 1 on the first site - member of the Security Group (32).
29
30 Security Appliance 1 on the second site - member of the Security Group (32).
31 Security Appliance 2 on the first site - member of the Security Group (32).
32 Security Group that contains Security Appliances from both sites (29, 30, 31, 33,
35).
Security Appliance 2 on the second site - member of the Security Group (32).
33
34 Security Appliance 3 on the first site - member of the Security Group (32).
35 Security Appliance 3 on the second site - member of the Security Group (32).
This connection is only used to synchronize the configuration of Security
n
Groups between the Quantum Maestro Orchestrators.
MHO-175 and MHO-170 require a 100 GbE DAC or 40 GbE DAC cable.
n
MHO-140 requires a 10 GbE DAC cable.
n
n This connection is only used to synchronize the configuration of Security
Groups between the Quantum Maestro Orchestrators.
MHO-175 and MHO-170 require a 100 GbE DAC or 40 GbE DAC cable.
n
MHO-140 requires a 10 GbE DAC cable.
n
