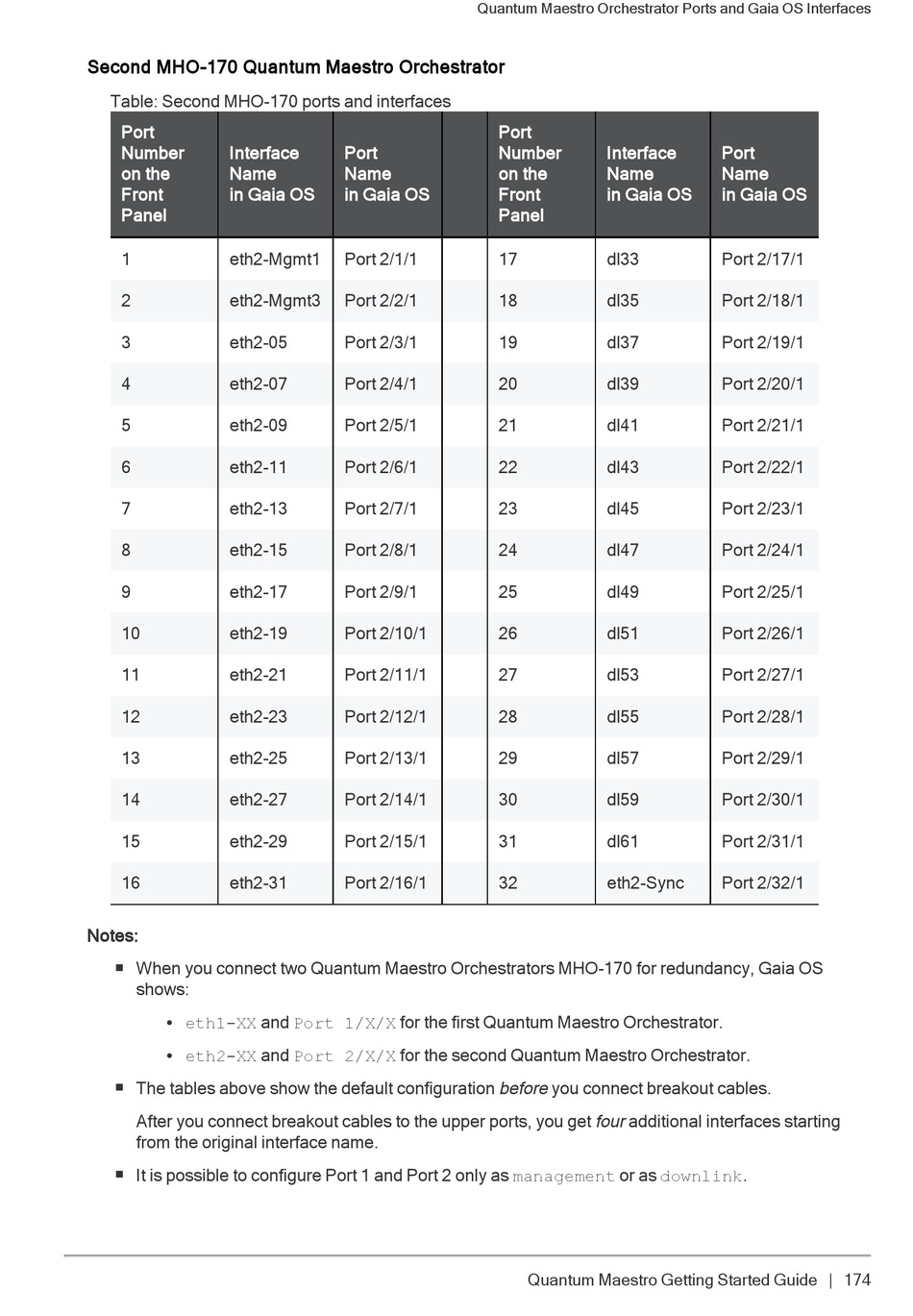

Second MHO-170 Quantum Maestro Orchestrator
Table: Second MHO-170 ports and interfaces
Port
Number Interface
on the Name
Front in Gaia OS
Panel
1 eth2-Mgmt1
2 eth2-Mgmt3
3 eth2-05
4 eth2-07
5 eth2-09
6 eth2-11
7 eth2-13
8 eth2-15
9 eth2-17
10 eth2-19
11 eth2-21
12 eth2-23
13 eth2-25
14 eth2-27
15 eth2-29
16 eth2-31
Notes:
When you connect two Quantum Maestro Orchestrators MHO-170 for redundancy, Gaia OS
n
shows:
eth1-XX and Port 1/X/X for the first Quantum Maestro Orchestrator.
l
eth2-XX and Port 2/X/X for the second Quantum Maestro Orchestrator.
l
The tables above show the default configuration before you connect breakout cables.
n
After you connect breakout cables to the upper ports, you get four additional interfaces starting
from the original interface name.
It is possible to configure Port 1 and Port 2 only as management or as downlink.
n
Quantum Maestro Orchestrator Ports and Gaia OS Interfaces
Port
Port Number
Name on the
in Gaia OS Front
Panel
Port 2/1/1 17
Port 2/2/1 18
Port 2/3/1 19
Port 2/4/1 20
Port 2/5/1 21
Port 2/6/1 22
Port 2/7/1 23
Port 2/8/1 24
Port 2/9/1 25
Port 2/10/1 26
Port 2/11/1 27
Port 2/12/1 28
Port 2/13/1 29
Port 2/14/1 30
Port 2/15/1 31
Port 2/16/1 32
Interface
Name
in Gaia OS
dl33
dl35
dl37
dl39
dl41
dl43
dl45
dl47
dl49
dl51
dl53
dl55
dl57
dl59
dl61
eth2-Sync
Quantum Maestro Getting Started Guide | 174
Port
Name
in Gaia OS
Port 2/17/1
Port 2/18/1
Port 2/19/1
Port 2/20/1
Port 2/21/1
Port 2/22/1
Port 2/23/1
Port 2/24/1
Port 2/25/1
Port 2/26/1
Port 2/27/1
Port 2/28/1
Port 2/29/1
Port 2/30/1
Port 2/31/1
Port 2/32/1
