MHO-140 Splitting Options

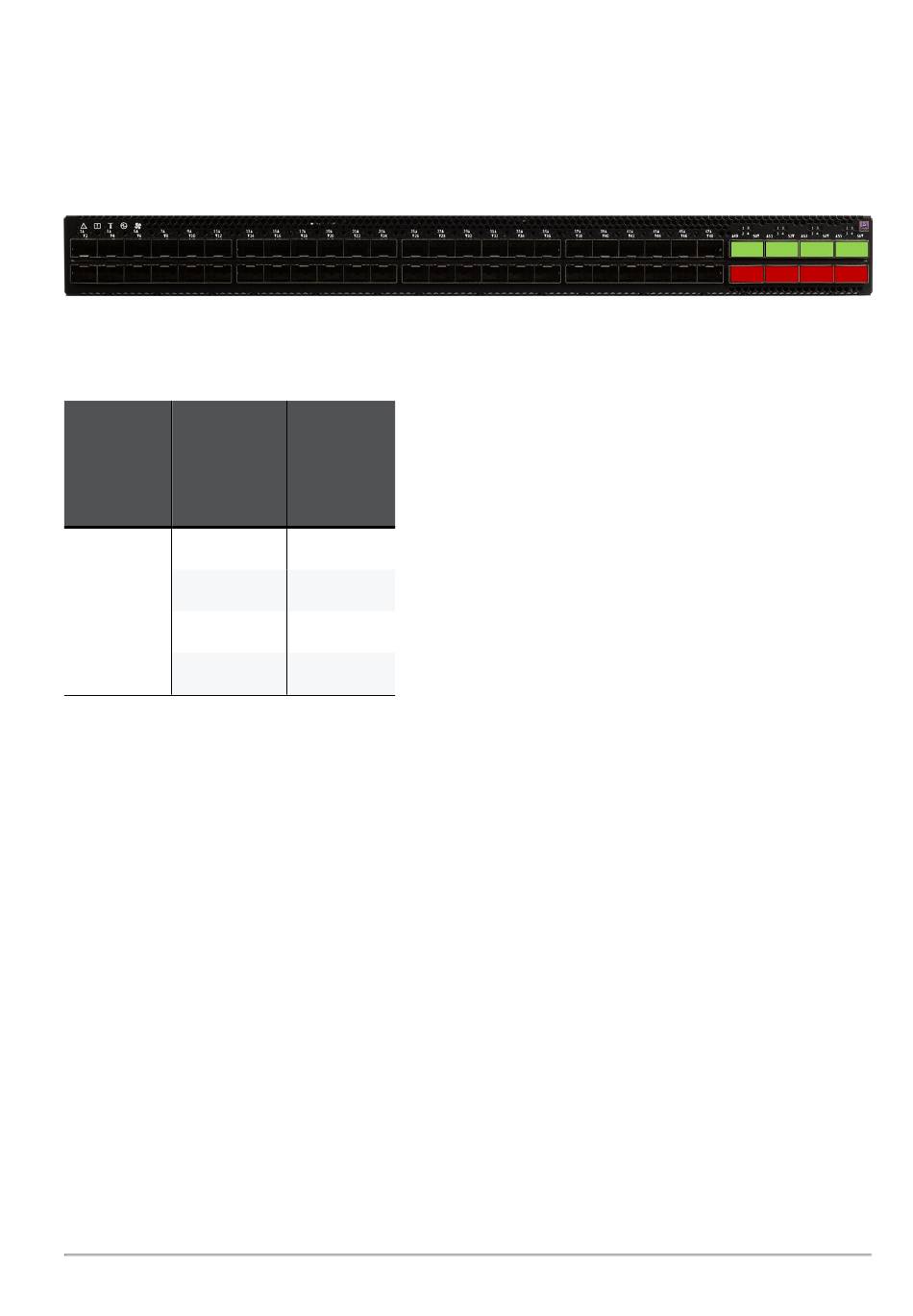

It is possible to split only the top QSFP28 ports 49, 51, 53, and 55 (colored green) into four SFP28 ports,
each.
When the top ports (colored green) are in a split mode, the corresponding bottom QSFP28 ports 50, 52, 54,
and 56 are disabled (colored red).
After you connect breakout cables to the supported top ports, you get four additional interfaces starting from
the original interface name. You assign these interfaces to Security Groups.
Example - When you connect a breakout cable to the top port 49 (eth1-49), you get:
Port
Number Interface
on the Name
Front in Gaia OS
Panel
49 eth1-49
eth1-50
eth1-51
eth1-52
Note - For more information about the ports and interface names in Gaia, see
Orchestrator Ports and Gaia OS Interfaces" on page 170
Port
Name
in Gaia OS
Port 1/49/1
Port 1/49/2
Port 1/49/3
Port 1/49/4
"Quantum Maestro
.
