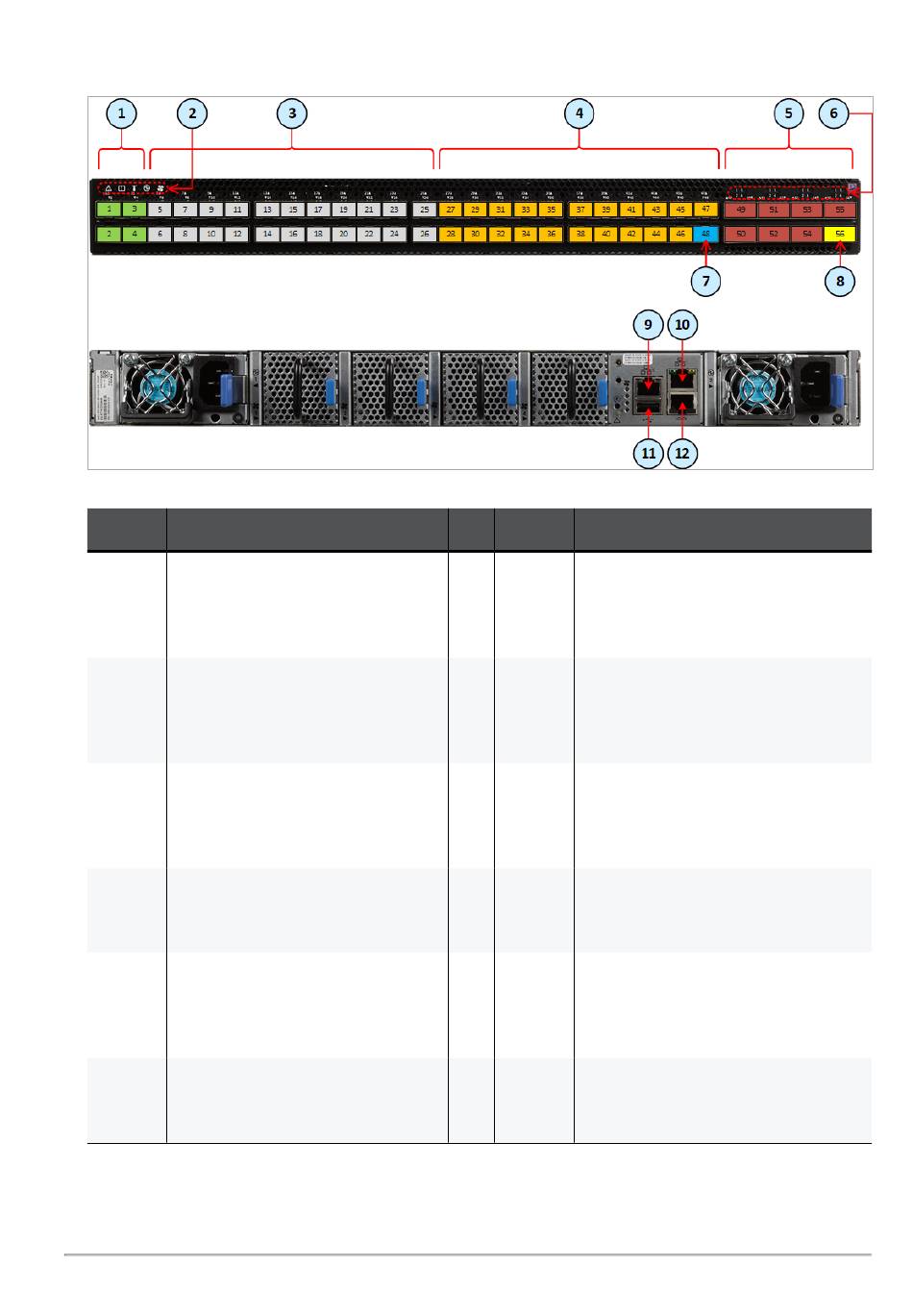

Port Mapping for the Quantum Maestro Orchestrator MHO-140
Legend
Item Description
1 Ports 1 - 4 are the Management
port for Security Groups
(lead to the Check Point
Management Server)
2 System Health LEDs
3 Ports 5 – 26 are the Uplink ports 1
Gbps / 10 Gbps
(lead to external and internal
networks)
4 Ports 27 – 47 are the Downlink
ports
(lead to Security Appliances)
5 Ports 49 – 55 are the Uplink ports
40 Gbps / 100 Gbps
(lead to external and internal
networks)
6 LEDs that show the state of the
split ports
when connecting Breakout cables
Item Description
7 Port 48 is the Synchronization port
on the same Site
(leads to the peer Orchestrator on
the same Site)
8 Port 56 is the Synchronization port in
Dual Site
(leads to the peer Orchestrator on
another Site)
9 Management port (Mgmt1) for the
Gaia OS on the Orchestrator
10 Management port (Mgmt2) for the
Gaia OS on the Orchestrator
11 USB 2.0 port
12 RJ45 port for Console connection
