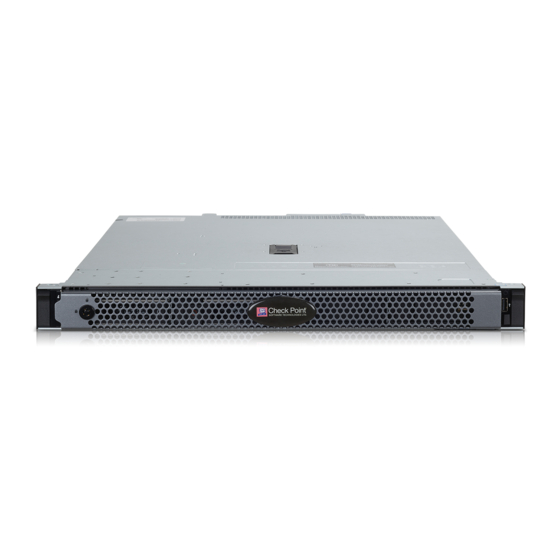

Summary of Contents for Check Point QUANTUM SMART-1
- Page 1 13 April 2021 QUANTUM SMART-1 600-M/6000-L/6000-XL APPLIANCES REPLACING LINE CARDS...
- Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
- Page 3 Latest Version of this Document in English Download the latest version of this document in PDF format Feedback Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments Revision History Date...
-
Page 4: Table Of Contents
Reassembling the Appliance Procedure for Smart-1 6000-L/6000-XL Appliances Preparing the Appliance Installing an Expansion Line Card into the Riser Removing an Expansion Line Card from the Riser Reassembling the Appliance Replacing a Transceiver Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 4... -
Page 5: Safety Instructions
Installing or removing components incorrectly can permanently damage the Security Management Appliance. Important - Make sure that you are electromagnetically grounded when working with hardware components of the appliance. ESD (electrostatic discharge) can damage the appliance. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 5... -
Page 6: Hardware Components
Hardware Components Hardware Components Smart-1 600-M Item Description Front panel Riser Rear panel Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 6... - Page 7 Hardware Components Smart-1 6000-L/6000-XL Item Description Front panel Riser 1 Rear panel Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 7...
-
Page 8: Supported Expansion Line Cards
In the Smart-1 6000-L/6000-XL appliances, there are 3 available expansion line card slots. For a list of supported line cards, see: https://www.checkpoint.com/downloads/products/smart-1-security-management-platform-datasheet.pdf Important - On Smart-1 6000-L/6000-XL appliances, do not move the RAID Controller from the right-most slot to any other slot. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 8... -
Page 9: Procedure For Smart-1 600-M Appliances
5. Remove the hook-and-loop straps that hold and secure the system cables, if they interfere with the PSU removal. 6. Remove the appliance from the rack. See the Installing the Quantum Smart-1 600-M Telescopic Rails guide. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 9... -
Page 10: Removing The Riser
1. Open the blue expansion card riser retention latch located on the appliance (1). 2. Holding the blue touch points (2), lift the expansion card riser from the appliance. Note - The illustration shows a riser with only the onboard NIC installed. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 10... -
Page 11: Removing An Expansion Line Card From The Riser
4. Locate the expansion line card connector on the riser. 5. Holding the expansion line card by its edges, position the card so that the card connector aligns with the connector on the riser. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 11... -
Page 12: Installing The Riser
3. Lower the riser until the riser is firmly seated in the connector on the system board. 4. Close the riser latch. Reassembling the Appliance Make sure that all internal cables are routed correctly and connected, and no tools or extra parts are left inside the appliance. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 12... - Page 13 6. Connect the power cables from the AC PSUs. 7. If you opened the hook-and-loop straps, close them to secure the appliance cables. 8. Press the Power button on the front panel to turn on the Security Management appliance. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 13...
-
Page 14: Procedure For Smart-1 6000-L/6000-Xl Appliances
4. If AC PSUs are installed in the appliance: Disconnect the power cables from the AC PSUs. 5. If DC PSUs are installed in the appliance: Disconnect the safety ground wires from the DC PSUs. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 14... - Page 15 The tabs on the cover should disengage from the guide slots on the appliance. d. Hold the cover on both sides and lift the cover away from the appliance. Item Description Latch release lock Latch Cover Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 15...
-
Page 16: Installing An Expansion Line Card Into The Riser
4. Insert the card edge connector firmly into the expansion line card connector until the card is fully seated. 5. Close/push the expansion line card latch. Best Practice - We recommend that you populate the bottom-most slot first. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 16... -
Page 17: Removing An Expansion Line Card From The Riser
Note - If you do not immediately install a replacement expansion line card when a line card fails, leave the failed line card in place to ensure proper appliance cooling until the new line card is installed. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 17... -
Page 18: Reassembling The Appliance
Use a flat or Phillips head screwdriver to rotate the latch release lock clockwise to the locked position. Item Description Latch release lock Latch Cover 2. Install the appliance into the rack. Installing the Quantum Smart-1 6000-L/6000-XL Telescopic Rails See the booklet for illustrated installation procedures. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 18... - Page 19 6. If you opened the hook-and-loop straps, close them to secure the system cables. 7. Make a loop and secure the power cables to the PSUs using the retention strap. 8. Press the Power button on the front panel to turn on the Security Management Appliance. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 19...
-
Page 20: Replacing A Transceiver
To remove a transceiver: 1. Disconnect the fiber optic cables from the transceiver. 2. Pull the latch lever down to release the transceiver. 3. Gently, pull the transceiver out of the expansion line card. Quantum Smart-1 600-M/6000-L/6000-XL Appliances Replacing Line Cards | 20...
