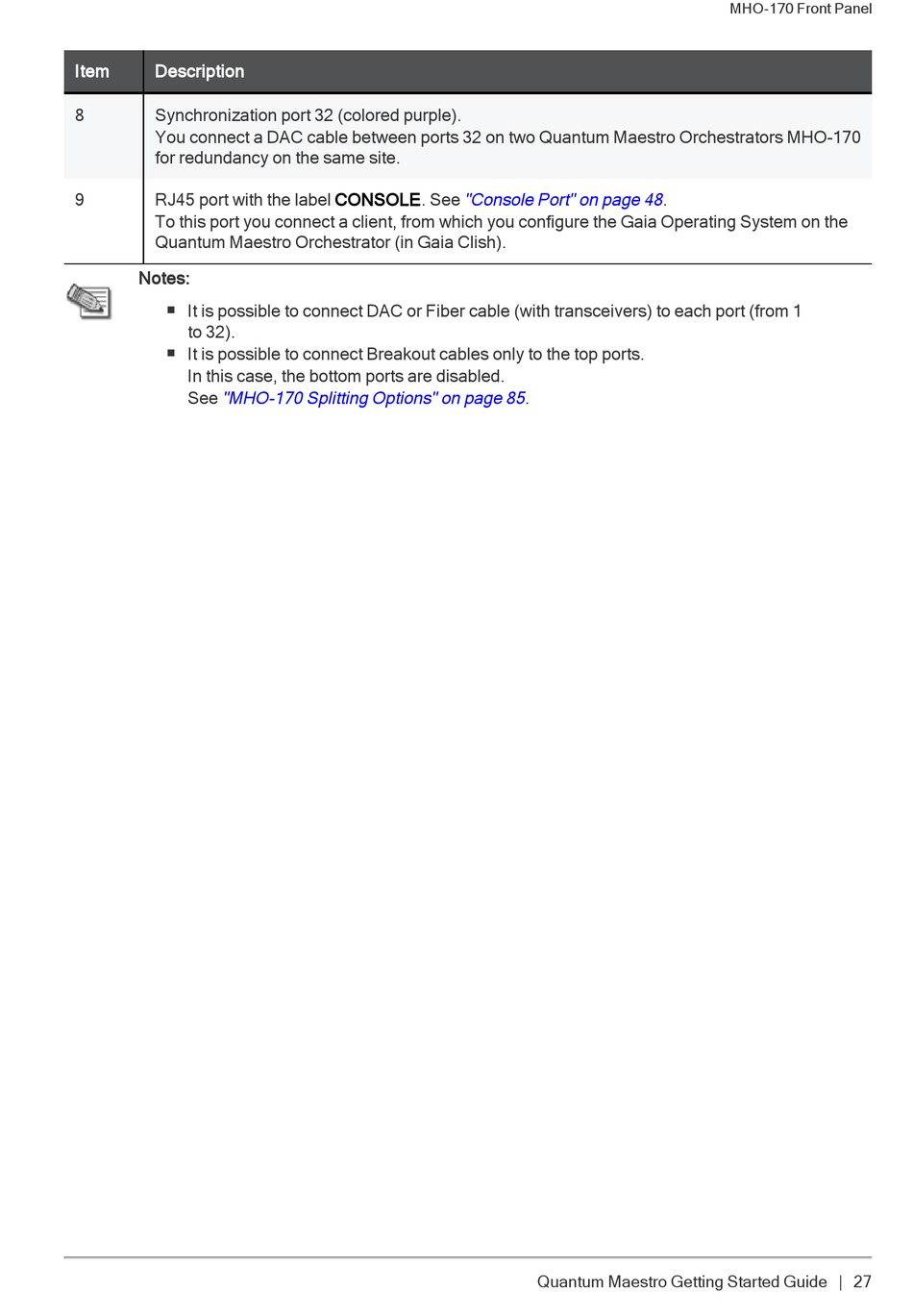

Item Description
8 Synchronization port 32 (colored purple).
You connect a DAC cable between ports 32 on two Quantum Maestro Orchestrators MHO-170
for redundancy on the same site.
9 RJ45 port with the label CONSOLE. See
To this port you connect a client, from which you configure the Gaia Operating System on the
Quantum Maestro Orchestrator (in Gaia Clish).
Notes:
It is possible to connect DAC or Fiber cable (with transceivers) to each port (from 1
n
to 32).
It is possible to connect Breakout cables only to the top ports.
n
In this case, the bottom ports are disabled.
"MHO-170 Splitting Options" on page 85
See
"Console Port" on page 48
.
