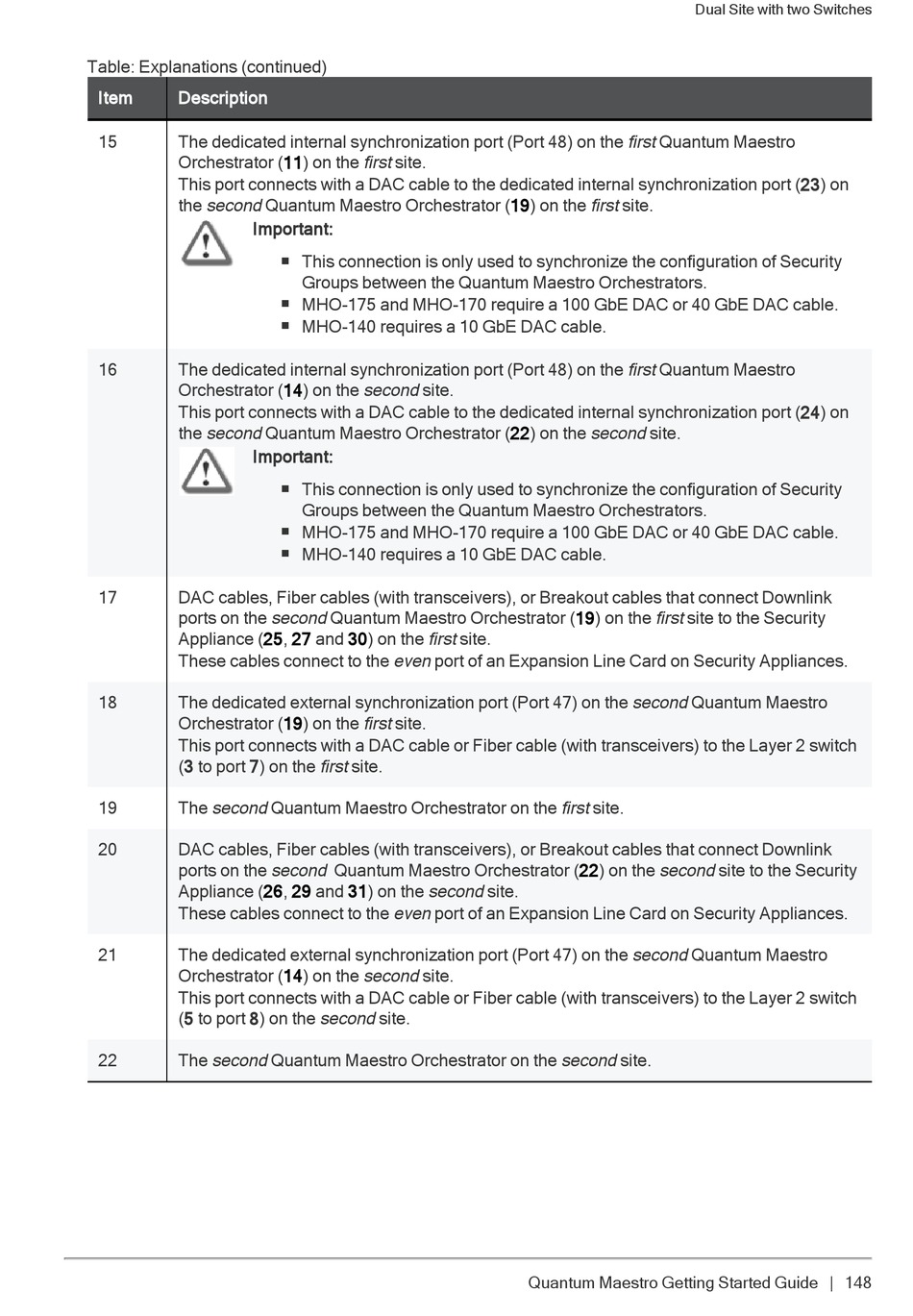

Table: Explanations (continued)
Item Description
15 The dedicated internal synchronization port (Port 48) on the first Quantum Maestro
Orchestrator (11) on the first site.
This port connects with a DAC cable to the dedicated internal synchronization port (23) on
the second Quantum Maestro Orchestrator (19) on the first site.
Important:
16 The dedicated internal synchronization port (Port 48) on the first Quantum Maestro
Orchestrator (14) on the second site.
This port connects with a DAC cable to the dedicated internal synchronization port (24) on
the second Quantum Maestro Orchestrator (22) on the second site.
Important:
17 DAC cables, Fiber cables (with transceivers), or Breakout cables that connect Downlink
ports on the second Quantum Maestro Orchestrator (19) on the first site to the Security
Appliance (25,
These cables connect to the even port of an Expansion Line Card on Security Appliances.
18 The dedicated external synchronization port (Port 47) on the second Quantum Maestro
Orchestrator (19) on the first site.
This port connects with a DAC cable or Fiber cable (with transceivers) to the Layer 2 switch
(3 to port 7) on the first site.
19 The second Quantum Maestro Orchestrator on the first site.
20 DAC cables, Fiber cables (with transceivers), or Breakout cables that connect Downlink
ports on the second Quantum Maestro Orchestrator (22) on the second site to the Security
Appliance (26,
These cables connect to the even port of an Expansion Line Card on Security Appliances.
The dedicated external synchronization port (Port 47) on the second Quantum Maestro
21
Orchestrator (14) on the second site.
This port connects with a DAC cable or Fiber cable (with transceivers) to the Layer 2 switch
(5 to port 8) on the second site.
22 The second Quantum Maestro Orchestrator on the second site.
This connection is only used to synchronize the configuration of Security
n
Groups between the Quantum Maestro Orchestrators.
n MHO-175 and MHO-170 require a 100 GbE DAC or 40 GbE DAC cable.
MHO-140 requires a 10 GbE DAC cable.
n
This connection is only used to synchronize the configuration of Security
n
Groups between the Quantum Maestro Orchestrators.
MHO-175 and MHO-170 require a 100 GbE DAC or 40 GbE DAC cable.
n
MHO-140 requires a 10 GbE DAC cable.
n
27 and 30) on the first site.
29 and 31) on the second site.
Dual Site with two Switches
