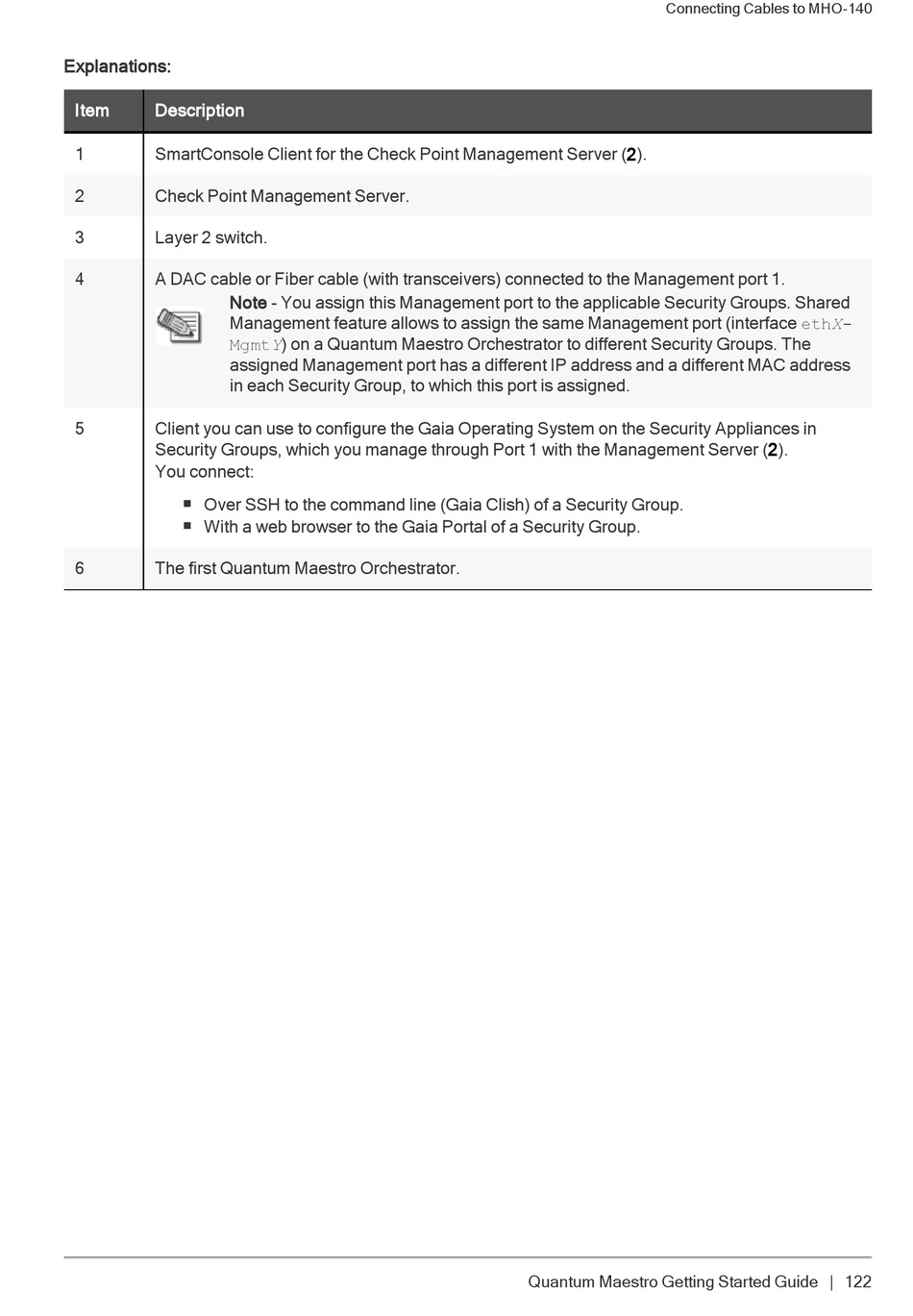

Explanations:
Item Description
1 SmartConsole Client for the Check Point Management Server (2).
2 Check Point Management Server.
3 Layer 2 switch.
4 A DAC cable or Fiber cable (with transceivers) connected to the Management port 1.
Note - You assign this Management port to the applicable Security Groups. Shared
Management feature allows to assign the same Management port (interface ethX-
MgmtY) on a Quantum Maestro Orchestrator to different Security Groups. The
assigned Management port has a different IP address and a different MAC address
in each Security Group, to which this port is assigned.
5 Client you can use to configure the Gaia Operating System on the Security Appliances in
Security Groups, which you manage through Port 1 with the Management Server (2).
You connect:
Over SSH to the command line (Gaia Clish) of a Security Group.
n
With a web browser to the Gaia Portal of a Security Group.
n
6 The first Quantum Maestro Orchestrator.
