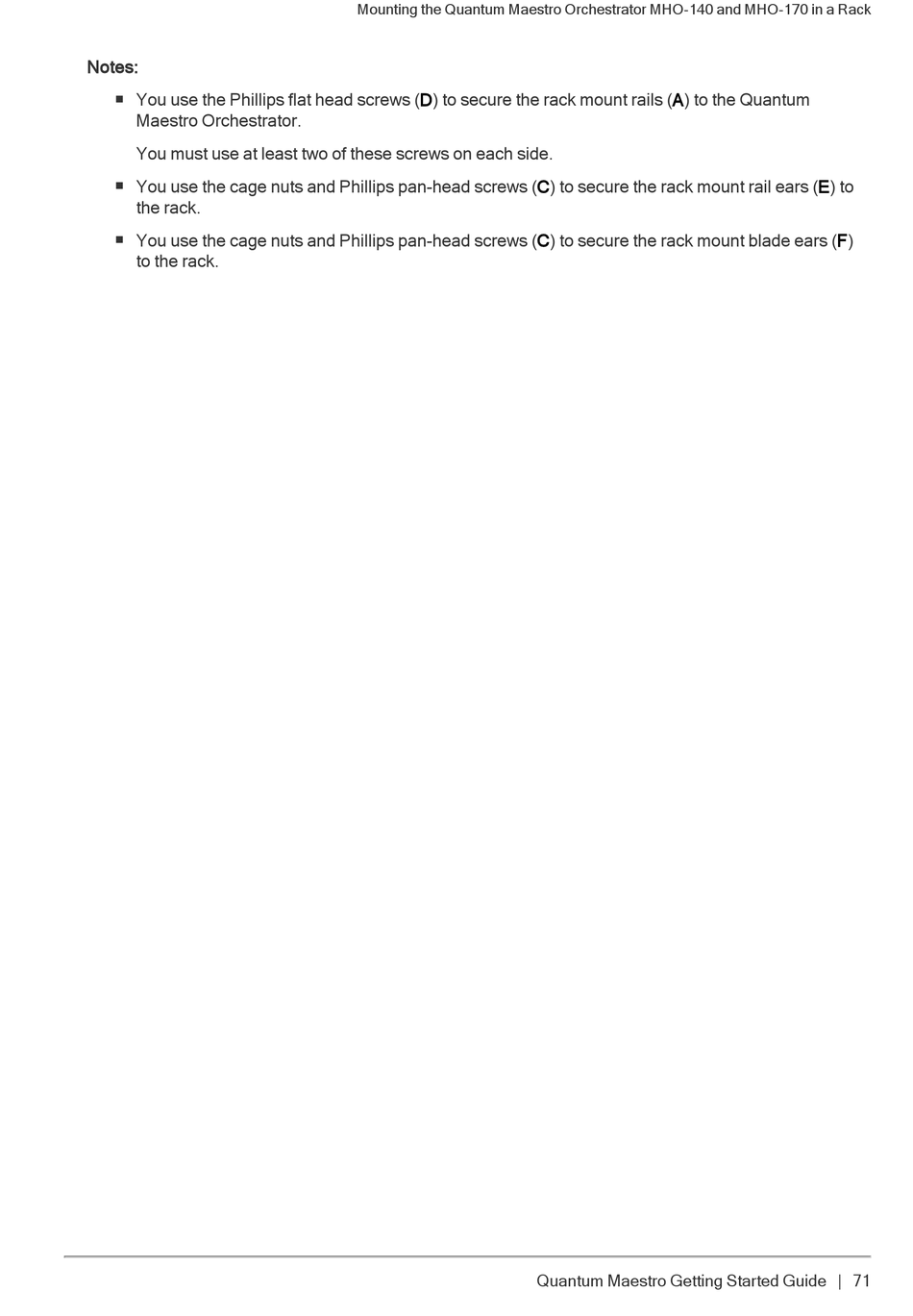

Check Point QUANTUM MAESTRO Manual page 71

Notes:
You use the Phillips flat head screws (D) to secure the rack mount rails (A) to the Quantum
n
Maestro Orchestrator.
You must use at least two of these screws on each side.
You use the cage nuts and Phillips pan-head screws (C) to secure the rack mount rail ears (E) to
n
the rack.
You use the cage nuts and Phillips pan-head screws (C) to secure the rack mount blade ears (F)
n
to the rack.
