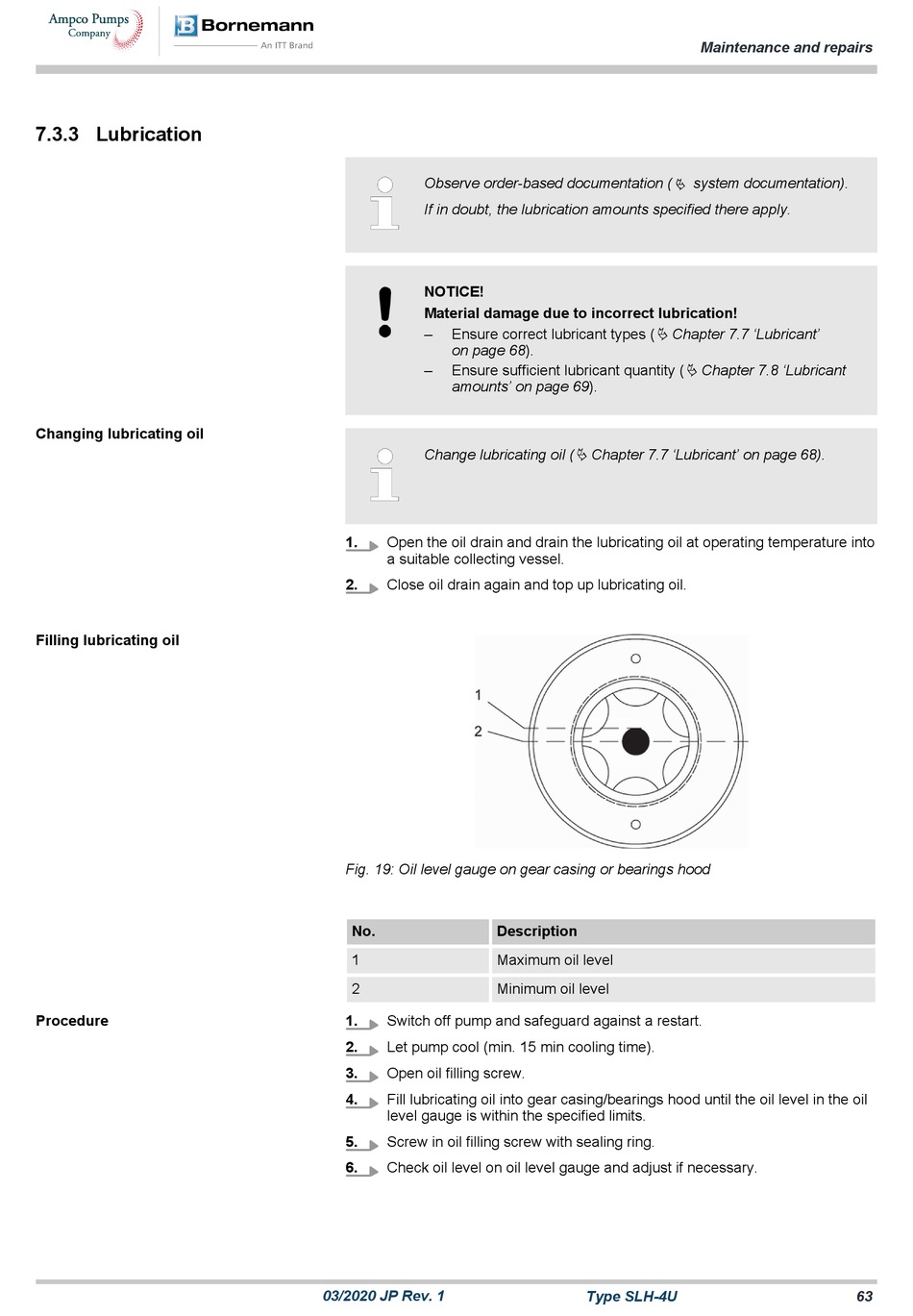

7.3.3 Lubrication

Changing lubricating oil
Filling lubricating oil
Procedure
Observe order-based documentation (
If in doubt, the lubrication amounts specified there apply.
NOTICE!
Material damage due to incorrect lubrication!
– Ensure correct lubricant types (
on page 68).
– Ensure sufficient lubricant quantity (
amounts' on page 69).
Change lubricating oil (
1. Open the oil drain and drain the lubricating oil at operating temperature into
a suitable collecting vessel.
2. Close oil drain again and top up lubricating oil.
Fig. 19: Oil level gauge on gear casing or bearings hood
No.
1
2
1. Switch off pump and safeguard against a restart.
2. Let pump cool (min. 15 min cooling time).
3. Open oil filling screw.
4. Fill lubricating oil into gear casing/bearings hood until the oil level in the oil
level gauge is within the specified limits.
5. Screw in oil filling screw with sealing ring.
6. Check oil level on oil level gauge and adjust if necessary.
03/2020 JP Rev. 1
Ä Chapter 7.7 'Lubricant'
Ä Chapter 7.7 'Lubricant' on page 68).
Description
Maximum oil level
Minimum oil level
Type SLH-4U
Maintenance and repairs
system documentation).
Ä Chapter 7.8 'Lubricant
