5.5.5 Aligning the motor

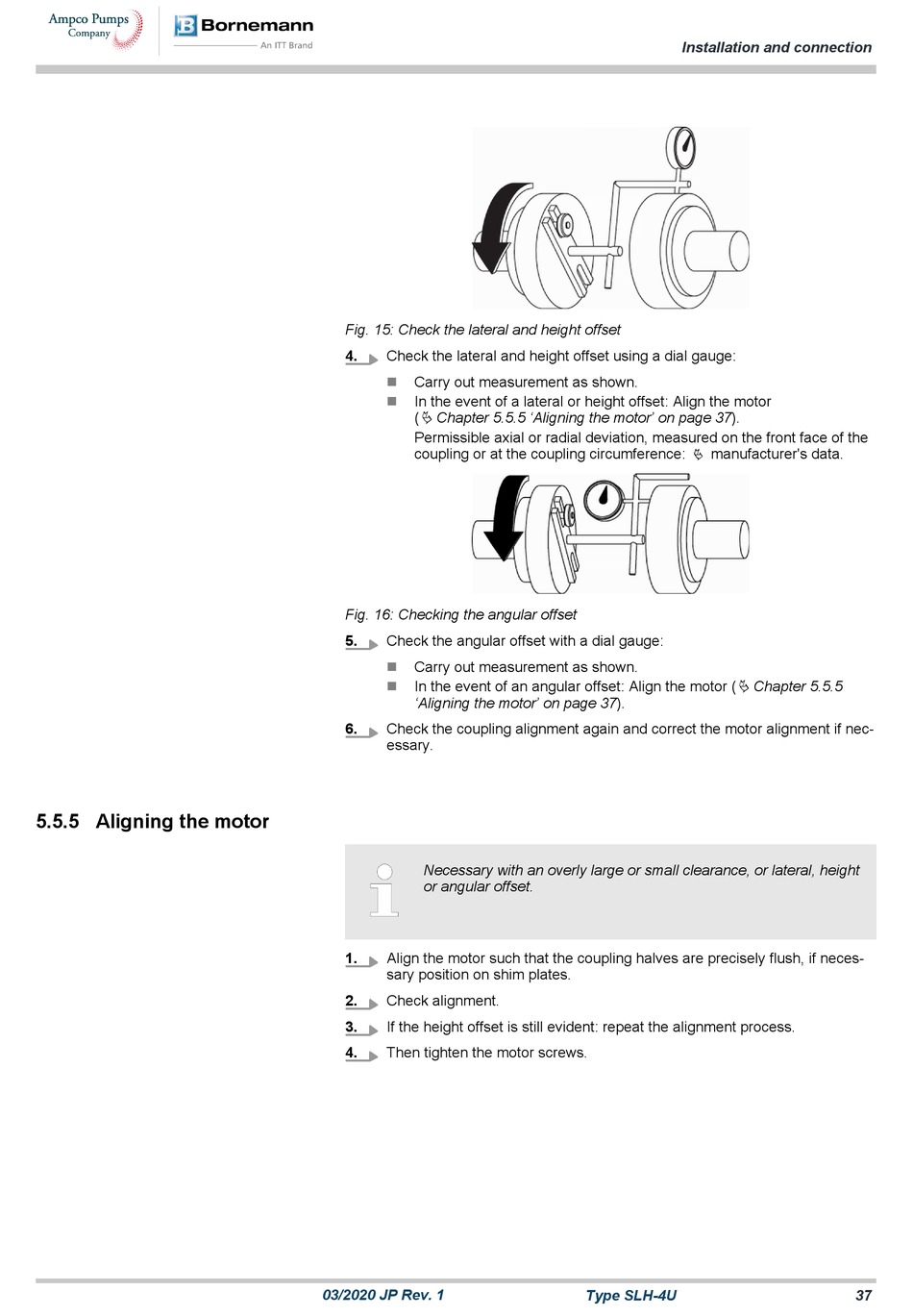

Fig. 15: Check the lateral and height offset
4. Check the lateral and height offset using a dial gauge:
n Carry out measurement as shown.
n In the event of a lateral or height offset: Align the motor
Ä Chapter 5.5.5 'Aligning the motor' on page 37).
(
Permissible axial or radial deviation, measured on the front face of the
coupling or at the coupling circumference:
Fig. 16: Checking the angular offset
5. Check the angular offset with a dial gauge:
n Carry out measurement as shown.
n In the event of an angular offset: Align the motor (
'Aligning the motor' on page 37).
6. Check the coupling alignment again and correct the motor alignment if nec-
essary.
Necessary with an overly large or small clearance, or lateral, height
or angular offset.
1. Align the motor such that the coupling halves are precisely flush, if neces-
sary position on shim plates.
2. Check alignment.
3. If the height offset is still evident: repeat the alignment process.
4. Then tighten the motor screws.
03/2020 JP Rev. 1
Installation and connection
manufacturer's data.
Ä Chapter 5.5.5
Type SLH-4U 37
