Front panel LEDs and connectors

Front panel LEDs and connectors

LEDs

86
From the FortiSwitch-5003 font panel you can view the status of the module LEDs
to verify that the module is functioning normally. You also connect the
FortiSwitch-5003 module in one chassis to a FortiSwitch-5003 module in another
chassis through the front panel ethernet connections. The front panel also
includes and out of band management ethernet interface and the RJ-45 console
port for connecting to the FortiSwitch-5003 CLI.

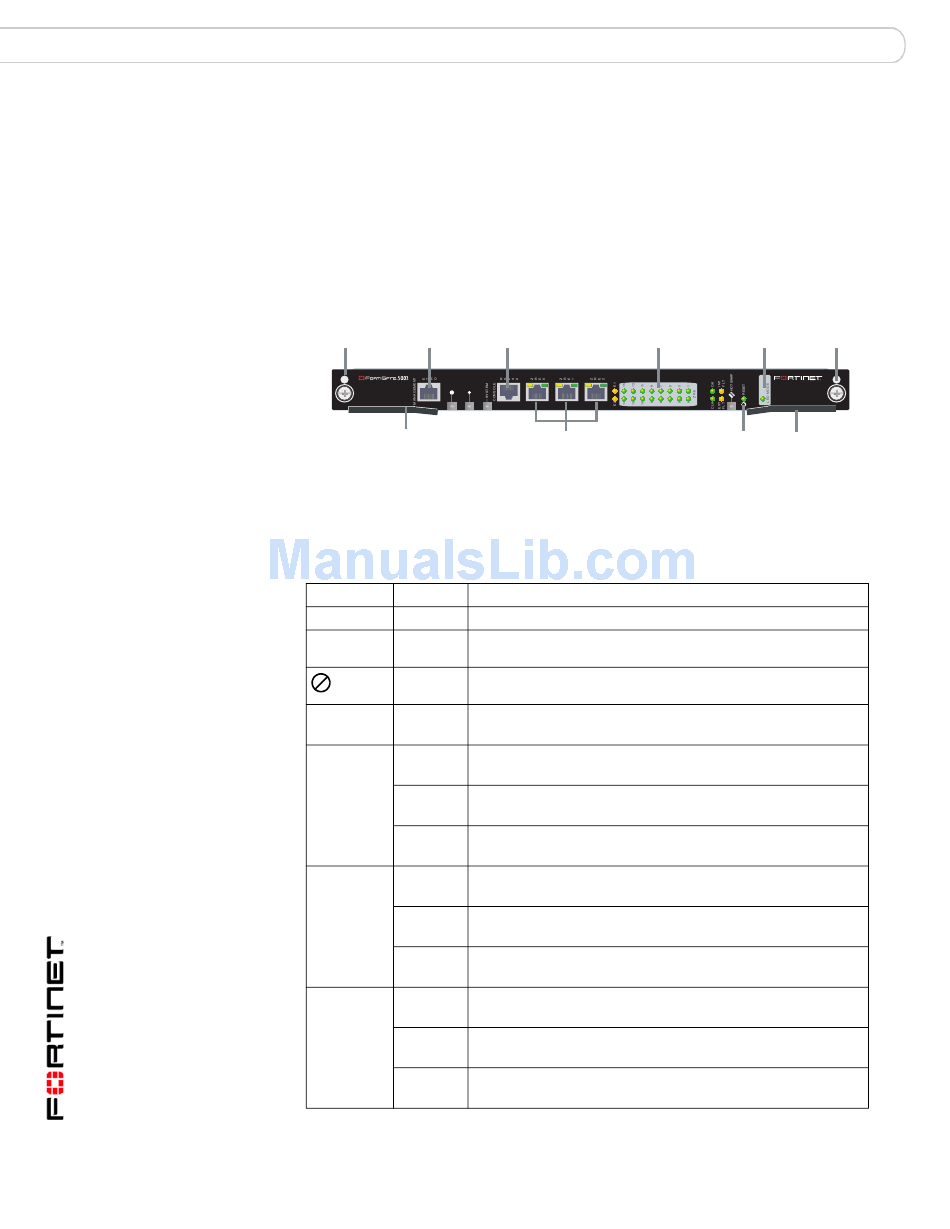

Figure 40: FortiSwitch-5003 front panel
Out of Band Managemnt
100Base-TX
Mounting
Ethernet
Knot
Extraction
Lever
Table 15 lists and describes the FortiSwitch-5003 module LEDs.
Table 15: FortiSwitch-5003 module LEDs
LED State Description
+ Green The FortiSwitch-5003 module is powered on.
Yellow Caution status. Caution status is indicated by the fault condition
of the CLOCK, OK or INT FLT LEDs.
Yellow Out of service. Normally off. The LED is on when there is a
+
switch failure.
System Green Normal operation.
Console
Yellow Link/Activity mode - Port is not forwarding packets.
Link/Speed mode - Indicates 1000 Mbps connection
Network
activity Green Link/Activity mode - Blinking LED indicates network traffic.
LEDs Link/Speed mode - Indicates 100 Mbps connection.
0-15
Off Link/Activity mode - No link.
Link/Speed mode - Indicates 10 Mbps connection.
Yellow Link/Activity mode - Port is not forwarding packets.
Link/Speed mode - Indicates 1000 Mbps connection
Green Link/Activity mode - Blinking LED indicates network traffic.
E1
Link/Speed mode - Indicates 100 Mbps connection.
Off Link/Activity mode - No link.
Link/Speed mode - Indicates 10 Mbps connection.
Yellow Link/Activity mode - Port is not forwarding packets.
Link/Speed mode - Indicates 1000 Mbps connection
Green Link/Activity mode - Blinking LED indicates network traffic.
E0
Link/Speed mode - Indicates 100 Mbps connection.
Off Link/Activity mode - No link.
Link/Speed mode - Indicates 10 Mbps connection.
RJ-45 Network
Serial Activity LEDs
1000Base-T
Ethernet
FortiGate-5000 Series Hardware Guide
FortiSwitch-5003 module
Mounting
LED Mode
Knot
Reset Extraction
Lever
