FortiGate-5002FB2 security system
3
4
5
6
7
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315

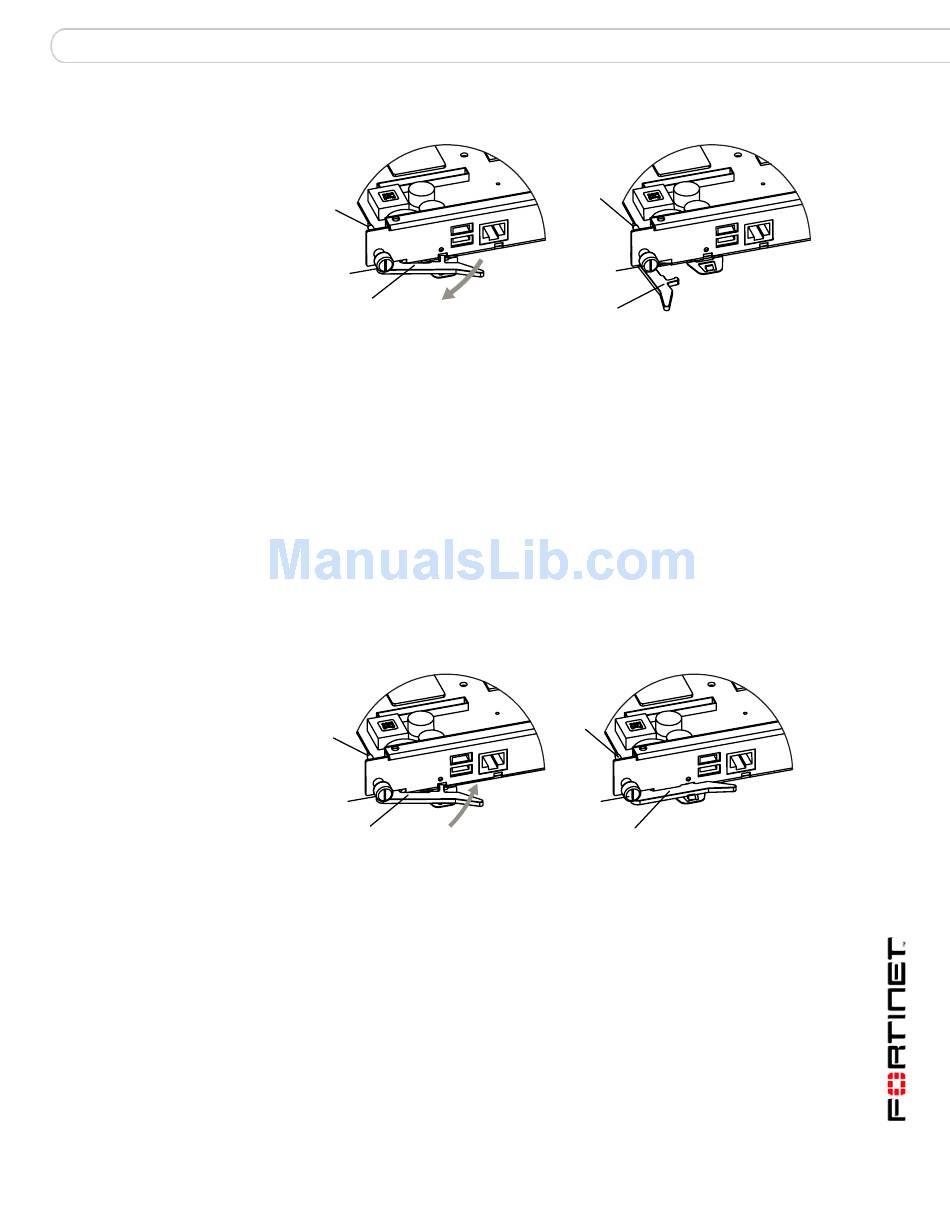

Open the left and right extraction levers to their fully open positions.
Alignment
Pin
Mounting
Knot
Extraction
Open
Lever
Insert the FortiGate-5002FB2 module into the empty slot in the chassis.
Carefully guide the module into the chassis using the rails in the slot.
The module should glide smoothly into the chassis. If you encounter any
resistance while sliding the module in, the module could be aligned incorrectly.
Pull the module back out and try inserting it again.
Slide the module in until the alignment pins are inserted half way into their sockets
in the chassis.
If the chassis is powered on the IPM LED lights up and turns blue.
Turn both extraction levers to their fully-closed positions. Gently press down on
the extraction lever lock to prevent interference with the extraction lever.
The extraction levers should hook into the sides of the chassis slot. Closing the
extraction levers draws the FortiGate-5002FB2 module into place in the chassis
slot and into contact with the chassis backplane. The FortiGate-5002FB2 front
panel should be in contact with the chassis front panel.
Alignment
Pin
Mounting
Knot
Extraction Close
Lever
If the chassis is powered on, as the module slides into place the IPM LED starts
flashing blue.
Inserting a FortiGate-5002FB2 module into a chassis
Alignment
Pin
Mounting
Knot
Fully Open
Extraction
Lever
Alignment
Pin
Mounting
Knot
Fully Closed
Extraction
Lever
