FortiSwitch-5003 module
1
2
3
4
5
6
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315
To complete this procedure, you need:
• A FortiGate-5000 series chassis with a FortiSwitch-5003 module installed in it
• An electrostatic discharge (ESD) preventive wrist or ankle strap with
connection cord
Attach the ESD wrist or ankle strap to your wrist or ankle and to an ESD socket or
to a bare metal surface on the chassis or frame.
Disconnect all cables from the FortiSwitch-5003 unit, including all network cables
and console cables.

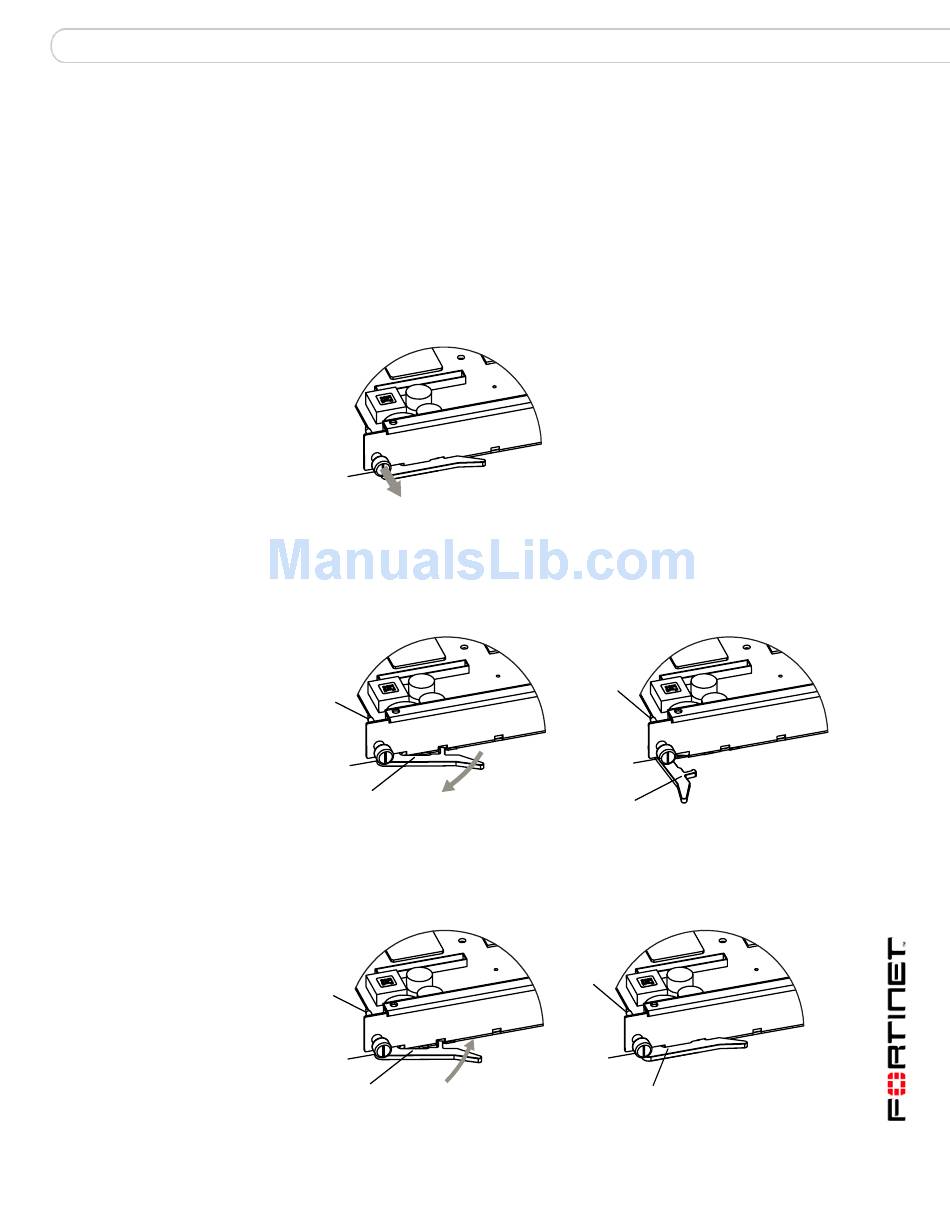

Fully loosen the mounting knots on the left and right sides of the FortiSwitch-5003
front panel.
Mounting
Knot
Loosen
Open the left and right extraction levers to their fully open positions.
Opening the extraction levers slides the module a short distance out of the slot,
disconnecting the module from the chassis backplane.
The Hot Swap LED turns blue. All other LEDs turn off.
Alignment
Pin
Mounting
Knot
Extraction
Open
Lever
Pull the module about half way out.
All LEDs turn off.
Turn both extraction levers to their fully-closed positions.
Alignment
Pin
Mounting
Knot
Close
Extraction
Lever
Removing a FortiSwitch-5003 module from a chassis
Alignment Pin
Mounting
Knot
Fully Open
Extraction
Lever
Alignment
Pin
Mounting
Knot
Fully Closed
Extraction
Lever
