FortiGate-5050 chassis

Physical description of the FortiGate-5050 chassis

Mounting the FortiGate-5050 chassis

FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315

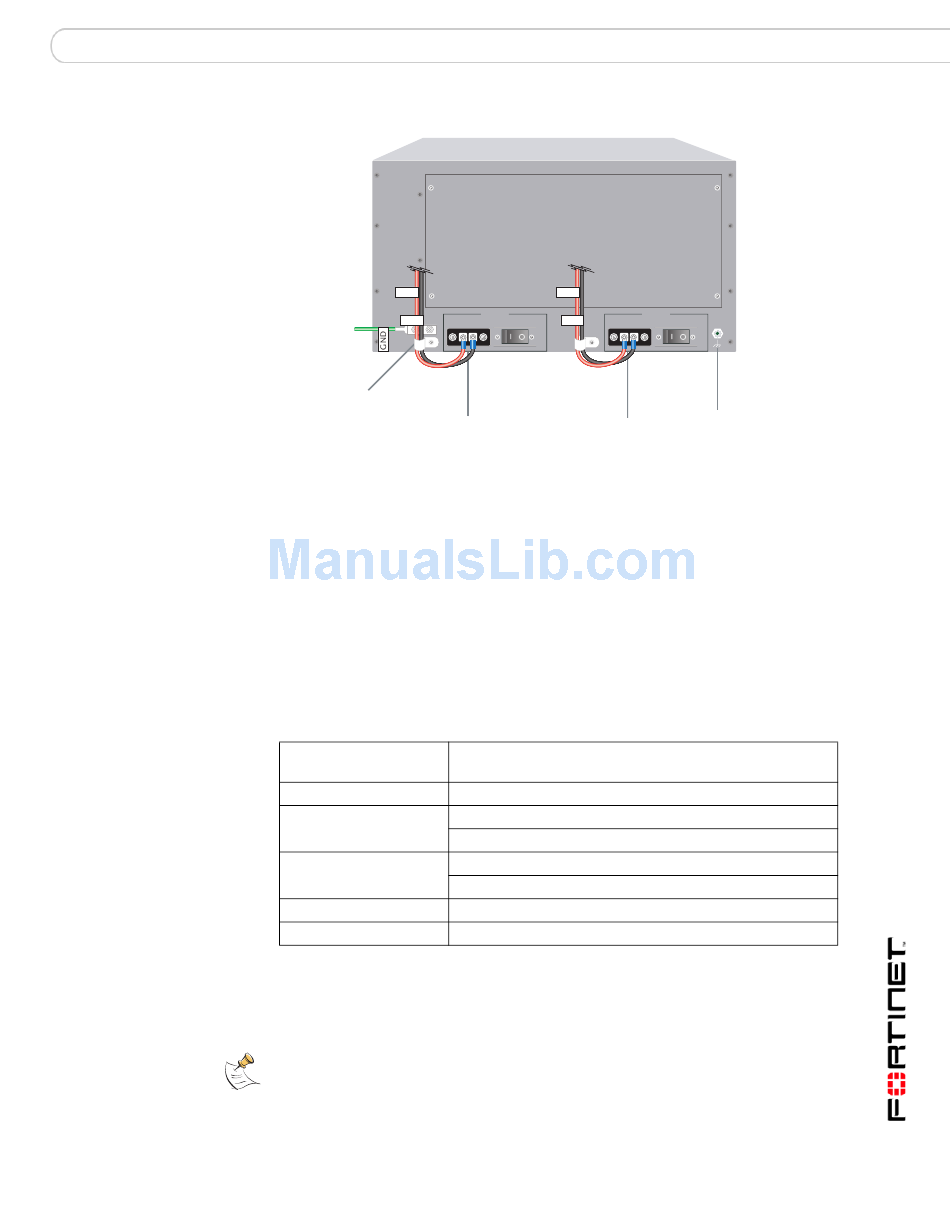

Figure 14: FortiGate-5050 chassis back panel
5
4
3
2
RTN
1
Ground
DC VOLTAGE RANGE
-48V
-48V TO -58V
RTN
Connector
(green)
Positive
(RTN)
Power
(red)
wire
fixture
DC Power
Input A
The back panel also includes the FortiGate-5050 chassis ground connector which
must be connected to Data Center ground. Use the power wire fixtures for
securing and managing DC power wires. The FortiGate-5050 chassis also has a
second ESD socket on the back panel.
The FortiGate-5050 chassis is a 5U chassis that can be installed in a standard
19-inch rack. Table 2 describes the physical characteristics of the FortiGate-5050
chassis.
Table 2: FortiGate-5050 chassis physical description
Dimensions 8.75 x 17 x 15.5 in. (13.3 x 43.2 x 39.4 cm)
(H x W x D)
Weight 26.75 lb. (12.1 kg)
Operating environment Temperature: 32 to 104°F (0 to 40°C)
Relative humidity: 5 to 95% (Non-condensing)
Storage environment Temperature: -13 to 158 °F (-25 to 70°C)
Relative humidity: 5 to 95% (Non-condensing)
Power consumption Maximum: 1,135 W
Power input 2x redundant -48VDC to -58VDC
Note: Mount the FortiGate chassis before installing the FortiGate-5000 series modules.
