FortiGate-5050 chassis
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315
Connecting the FortiGate-5050 chassis to AC power using the FortiGate-5053 power converter tray
Redundant FortiGate-5050 power supplies
You can supply redundant power to a FortiGate-5050 chassis by adding a third
FortiGate-5020/5050 power supply to the FortiGate-5053 power converter tray
(see Figure 20). If one of the FortiGate-5020/5050 power supplies in the
FortiGate-5053 power converter tray fails, the third power supply takes its place
without a power interruption.

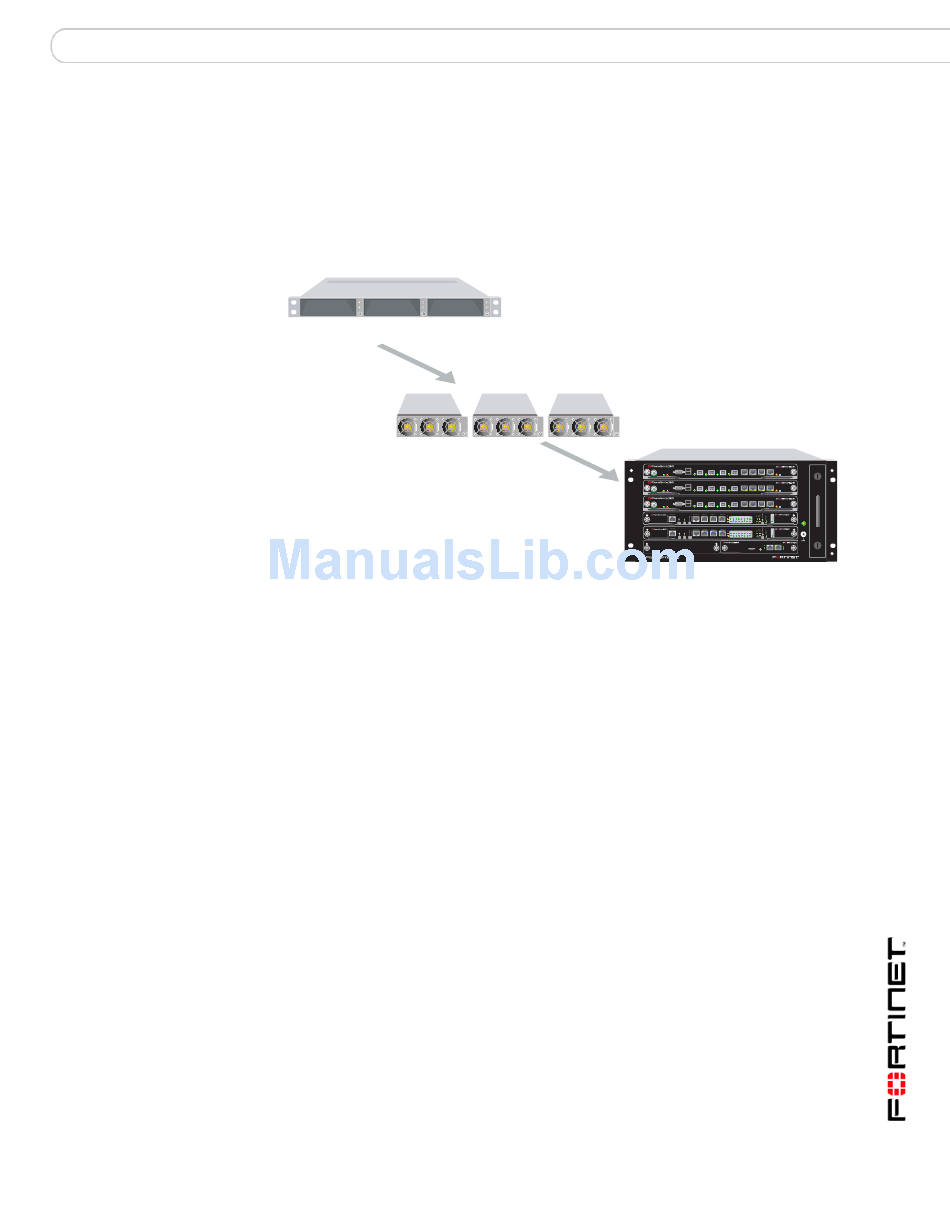

Figure 20: 2 + 1 redundant FortiGate-5020/5050 power supplies
Slot 3 Slot 2 Slot 1
3 FortiGate-5020/5050
power supplies
2 x 800W = 1600W
2 + 1 redundancy
Redundant FortiGate-5053 power converter trays
A single FortiGate-5053 power converter tray is usually only connected to one
FortiGate-5050 power input connector. If this power input connector or
FortiGate-5053 power converter tray fails or is disconnected the FortiGate-5050
chassis will loose power.
You can supply redundant power to the entire FortiGate-5050 chassis by adding a
second FortiGate-5053 power converter containing two or three
FortiGate-5020/5050 power supplies and connected this FortiGate-5053 power
converter tray to the second FortiGate-5050 power input connector.
1 FortiGate-5053
power convertor tray
CONSOLE USB
5
PWR ACC
4 CONSOLE USB
PWR ACC
1 FortiGate-5050
3 CONSOLE USB
PWR ACC
chassis
2
1
ShMC
2
1 2 3 4 5 6 7 8
STA IPM
1 2 3 4 5 6 7 8
STA IPM
1 2 3 4 5 6 7 8
STA IPM
POWER
ShMC
Critical
Hot Swap
Major
1
Status
Alarm Minor
Alarm Console Ethernet
Reset
