Inserting a FortiSwitch-5003 module into a chassis
88

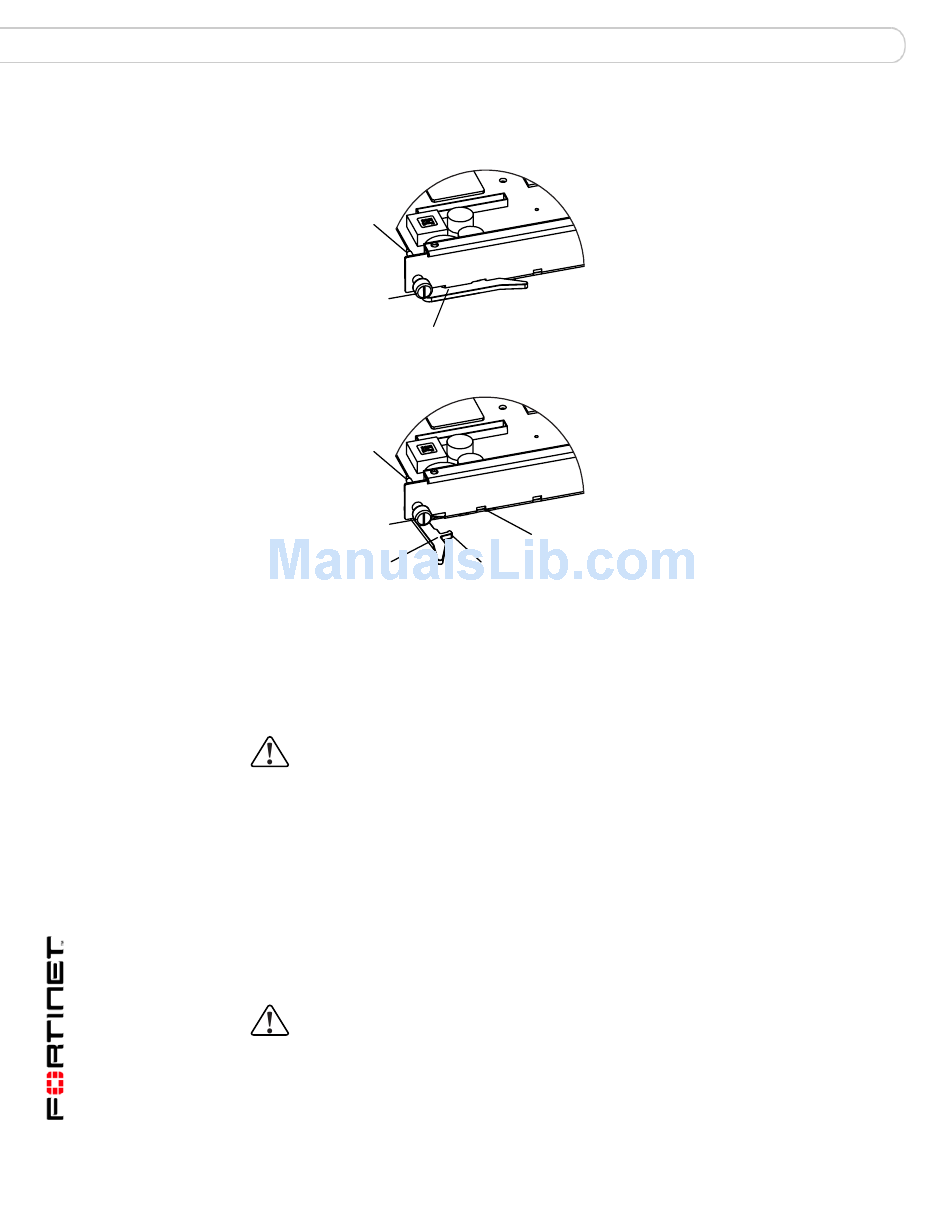

Figure 41: FortiSwitch-5003 module mounting components
Closed
Alignment Pin
Mounting
Knot
Extraction
Lever
Open
Alignment Pin
Mounting
Knot
Extraction
Switch
Lever
Contact
FortiSwitch-5003 modules are hot swappable. The procedure for inserting the
FortiSwitch-5003 module into a FortiGate-5000 series chassis slot is the same
whether or not the FortiGate-5000 series chassis is powered on or not.
To insert a FortiSwitch-5003 module into a FortiGate-5000 series chassis
Caution: Do not carry the FortiSwitch-5003 module by holding the extraction levers. When
inserting or removing the FortiSwitch-5003 module from a chassis slot, handle the module
by the front panel. The extraction levers are designed for positioning and locking the
FortiSwitch-5003 module into a slot in a chassis only and should not be used for handling
the module. If the extraction levers become bent or damaged the FortiSwitch-5003 module
may not align correctly in the chassis slot and the left extraction lever may not activate the
power switch.
To complete this procedure, you need:
• A FortiSwitch-5003 module
• A FortiGate-5000 series chassis with an empty slot
• An electrostatic discharge (ESD) preventive wrist or ankle strap with
connection cord
Caution: FortiGate-5000 series and FortiSwitch-5000 series modules must be protected
from static discharge and physical shock. Only handle or work with FortiGate-5000 series
and FortiSwitch-5000 series modules at a static-free workstation. Always wear a grounded
electrostatic discharge (ESD) preventive wrist or ankle strap when handling FortiGate-5000
series or FortiSwitch-5000 series modules.
Power
Switch
