FortiSwitch-5003 module
1
2
3
4
5
6
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315
Attach the ESD wrist or ankle strap to your wrist or ankle and to an ESD socket or
to a bare metal surface on the chassis or frame.

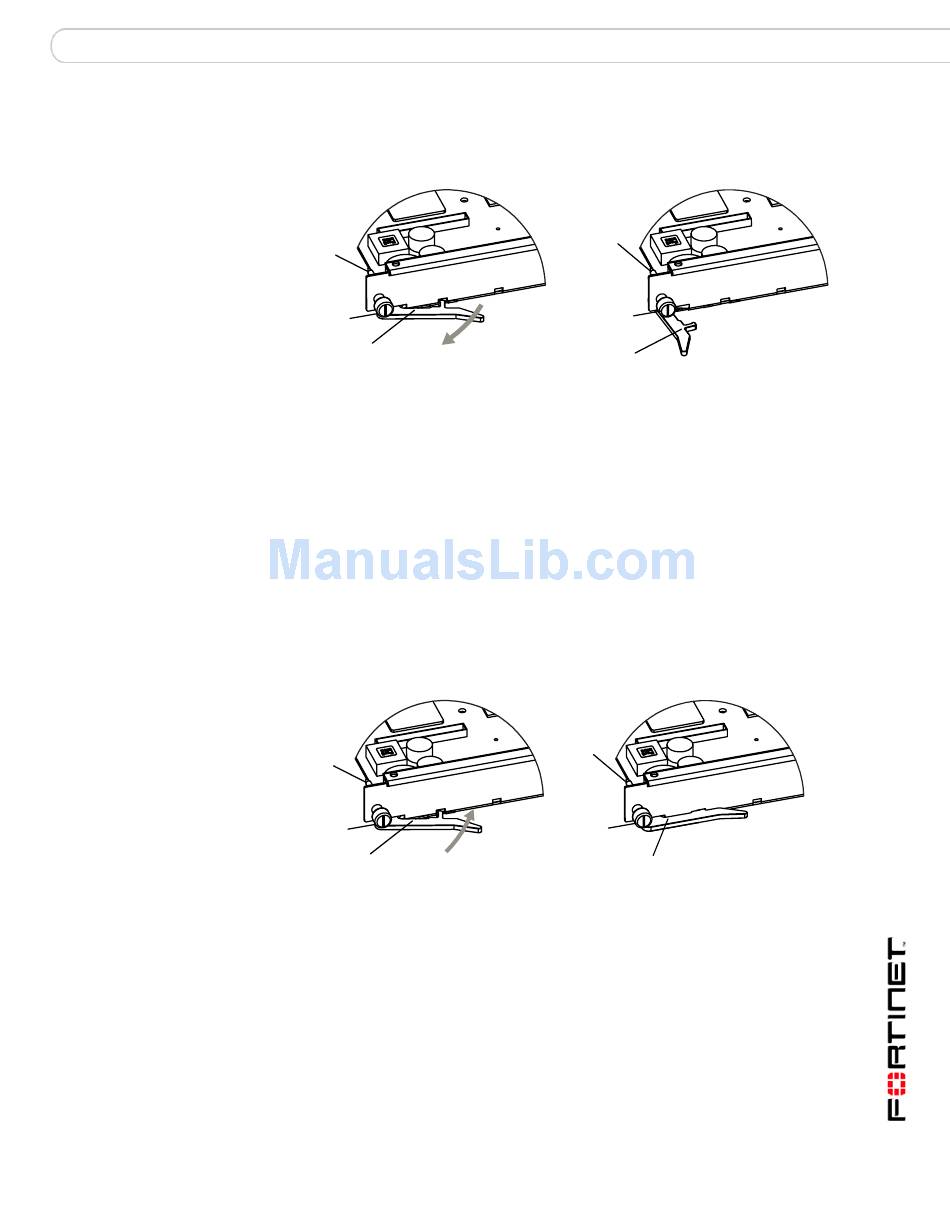

Open the left and right extraction levers to their fully open positions.
Alignment
Pin
Mounting
Knot
Extraction
Open
Lever
Insert the FortiSwitch-5003 module into the empty slot in the chassis.
Carefully guide the module into the chassis using the rails in the slot.
The module should glide smoothly into the chassis. If you encounter any
resistance while sliding the module in, the module could be aligned incorrectly.
Pull the module back out and try inserting it again.
Slide the module in until the alignment pins are inserted half way into their sockets
in the chassis.
If the chassis is powered on the Hot Swap LED lights up and turns blue.
Turn both extraction levers to their fully-closed positions.
The extraction levers should hook into the sides of the chassis slot. Closing the
extraction levers draws the FortiSwitch-5003 module into place in the chassis slot
and into contact with the chassis backplane. The FortiSwitch-5003 front panel
should be in contact with the chassis front panel.
Alignment
Pin
Mounting
Knot
Close
Extraction
Lever
If the chassis is powered on, as the module slides into place the Hot Swap LED
starts flashing blue.
Inserting a FortiSwitch-5003 module into a chassis
Alignment Pin
Mounting
Knot
Fully Open
Extraction
Lever
Alignment
Pin
Mounting
Knot
Fully Closed
Extraction
Lever
