Inserting a FortiGate-5001SX module into a chassis
54
7 Turn both extraction levers to their fully-closed positions.
The extraction levers should hook into the sides of the chassis slot. Closing the
extraction levers draws the FortiGate-5001SX module into place in the chassis
slot and into contact with the chassis backplane. The FortiGate-5001SX front
panel should be in contact with the chassis front panel.
If the chassis is powered on, as the module slides into place the IPM LED starts
flashing blue.

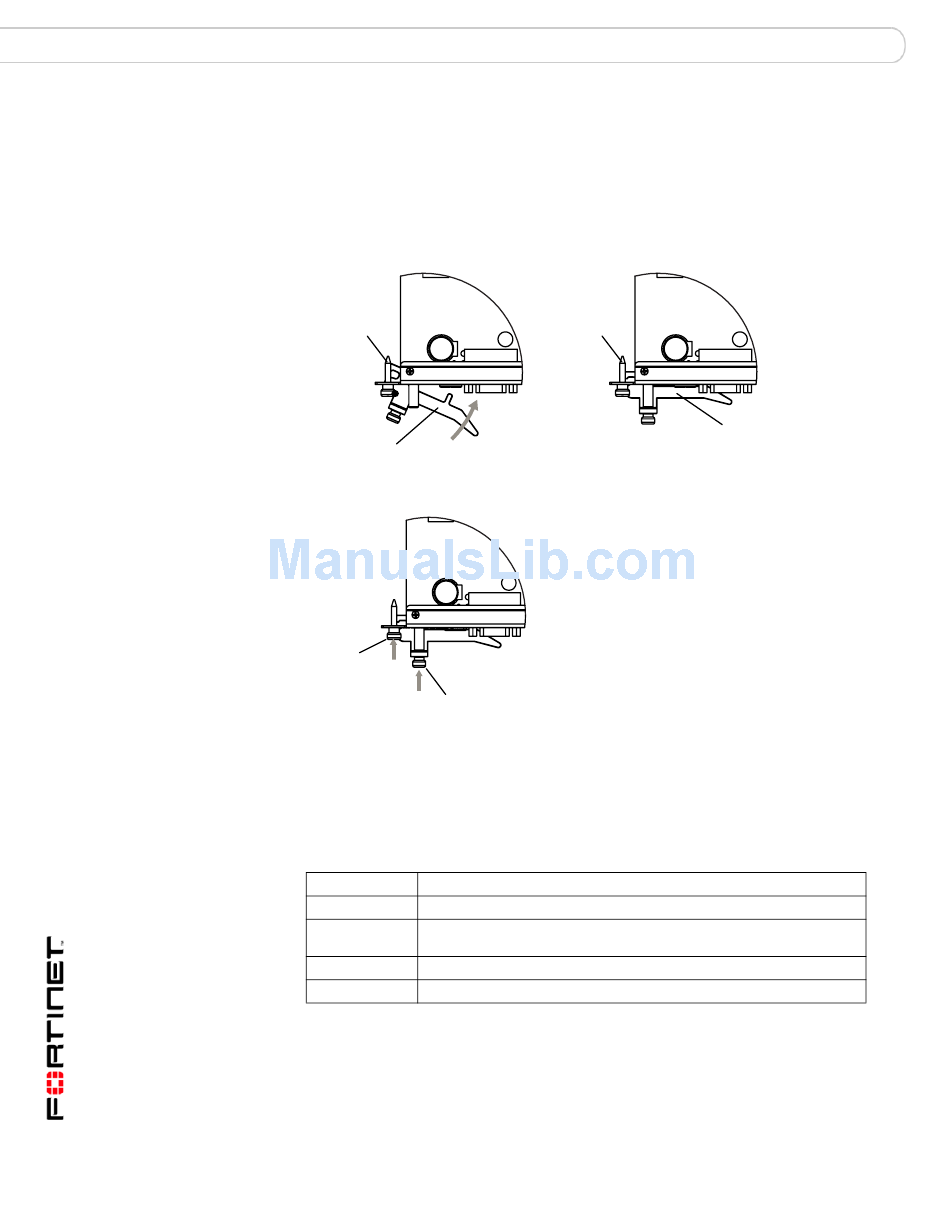

Alignment Pin
Close
Left Extraction
Lever
8 Fully tighten the left extraction lever locking screw to lock the left extraction lever.
.
Mounting
Knot
Tighten
Locking Screw
9 Fully tighten the left and right mounting knots to lock the FortiGate-5001SX
module into position in the chassis slot.
If the chassis is powered on the PWR LED turns green and the STA LED turns
RED. The ACC LED also starts flashing red. After a few minutes, if the module is
operating correctly the front panel LEDs are lit as described in
Table 7: FortiGate-5001SX normal operating LEDs
LED State
PWR Green
ACC Off (Or flashing red when the system accesses the FortiGate-5001SX
flash disk.)
STA Green
IPM Off
FortiGate-5001SX security system
Alignment Pin
Left Extraction
Fully Closed
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315
Lever
Table 7.
