FortiGate-5002FB2 security system
1
2
3
4
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315
Caution: Do not carry the FortiGate-5002FB2 module by holding the extraction levers.
When inserting or removing the FortiGate-5002FB2 module from a chassis slot, handle the
module by the front panel. The extraction levers are designed for positioning and locking
the FortiGate-5002FB2 module into a slot in a chassis only and should not be used for
handling the module. If the extraction levers become bent or damaged the
FortiGate-5002FB2 module may not align correctly in the chassis slot and the left extraction
lever may not activate the power switch.
To complete this procedure, you need:
• A FortiGate-5000 series chassis with a FortiGate-5002FB2 module installed
• An electrostatic discharge (ESD) preventive wrist or ankle strap with
connection cord
Attach the ESD wrist or ankle strap to your wrist or ankle and to an ESD socket or
to a bare metal surface on the chassis or frame.
Disconnect all cables from the FortiGate-5002FB2 unit, including all network
cables, the console cable, and any USB cables or keys.

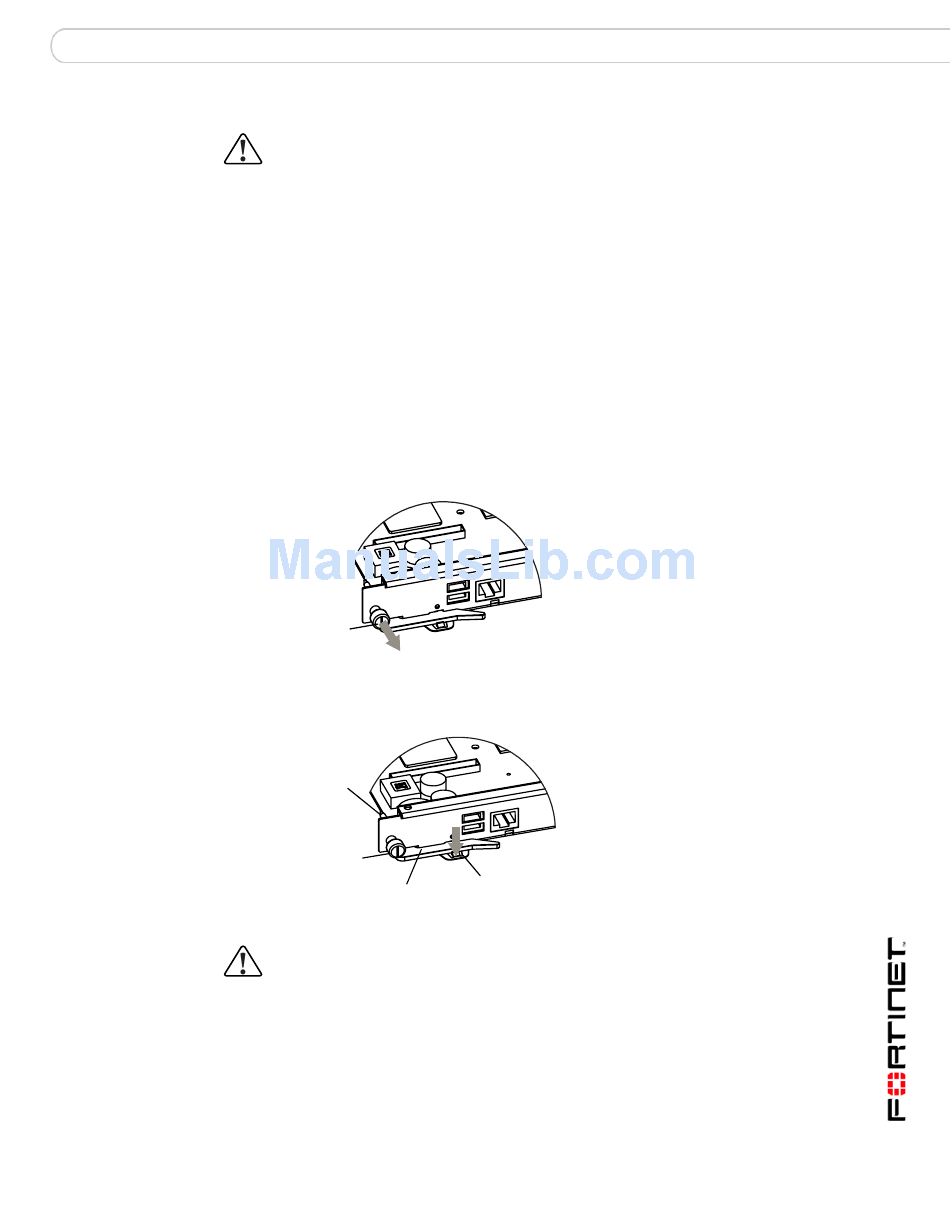

Fully loosen the mounting knots on the left and right sides of the
FortiGate-5002FB2 front panel.
Mounting
Knot
Loosen
Before opening the left and right extraction levers, gently push down on the
extraction lever locks to release the extraction levers.
Alignment Pin
Mounting
Knot
Extraction Lever
Extraction
Lever
Caution: Excessive force on the extraction lever locks may cause permanent damage.
Removing a FortiGate-5002FB2 module from a chassis
Lock
