Front panel LEDs and connectors

Front panel LEDs and connectors

LEDs

46
From the FortiGate-5001SX font panel you can view the status of the module
LEDs to verify that the module is functioning normally. You also connect the
FortiGate-5001SX module to your network through the front panel ethernet
connections. The front panel also includes the RS-232 console port for connecting
to the FortiOS CLI and a USB port.

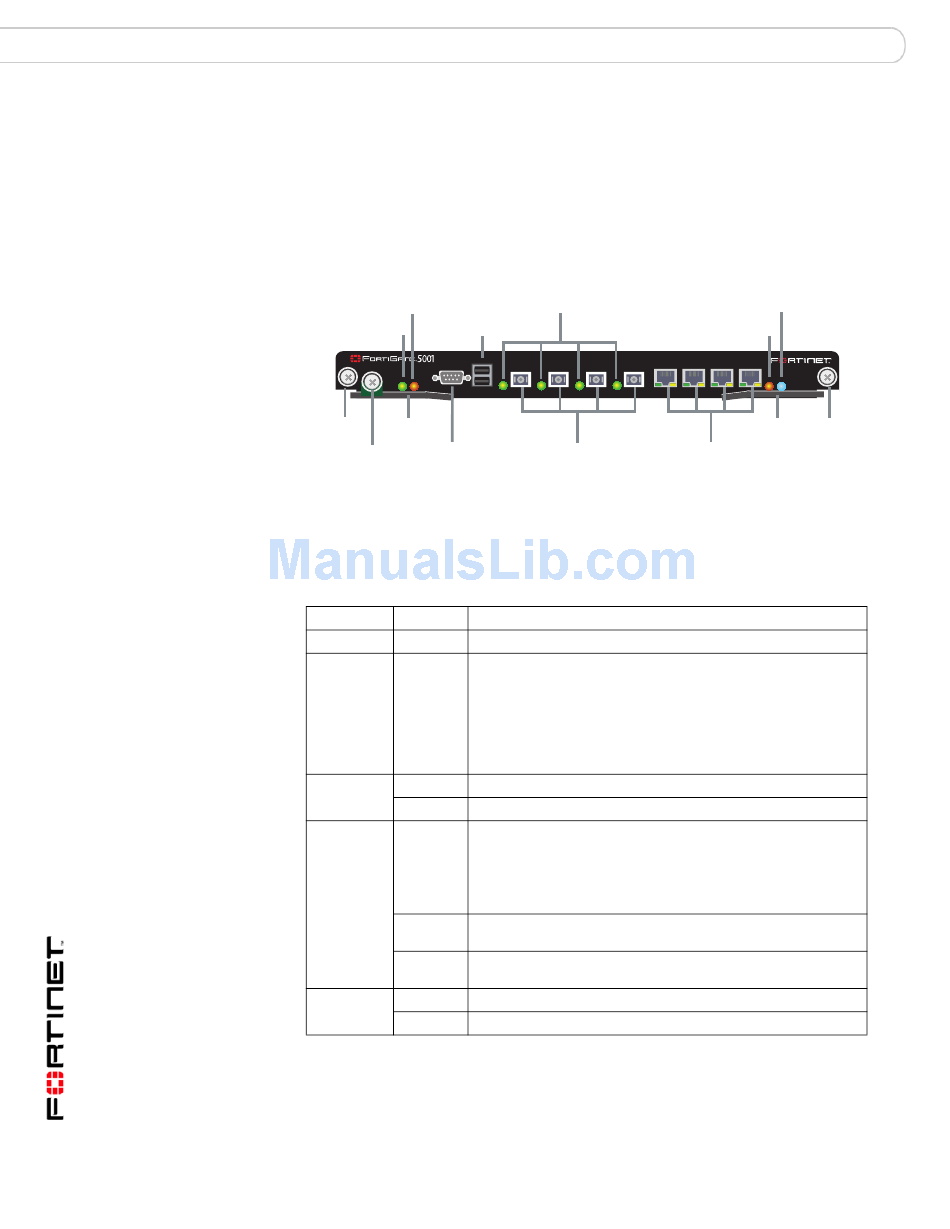

Figure 26: FortiGate-5001SX front panel
Flash Disk
Access
Power USB
USB
CONSOLE
PWR ACC
Mounting
Extraction
Knot
Lever
RS-232
Locking
Serial
Screw
Table 4 lists and describes the FortiGate-5001SX module LEDs.
Table 4: FortiGate-5001SX LEDs
LED State Description
PWR Green The FortiGate-5001SX module is powered on.
ACC Off or The ACC LED flashes red when the FortiGate-5001SX module
Flashing access the FortiOS flash disk. The FortiOS flash disk stores the
red current FortiOS firmware build and configuration files. The
system accesses the flash disk when starting up, during a
firmware upgrade, or when an administrator is using the CLI or
GUI to change the FortiOS configuration. Under normal
operating conditions this LED flashes occasionally, but is
mostly off.
STA Green Normal operation.
Red The FortiGate-5001SX is starting or a fault condition exists.
IPM Blue The FortiGate-5001SX is ready to be hot-swapped (removed
from the chassis). If the IPM light is blue and no other LEDs are
lit the FortiGate-5001SX module has lost power, possibly
because of a loose or incorrectly aligned left extraction lever.
See
page 51
Flashing The FortiGate-5001SX is changing from hot swap to running
Blue mode or from running mode to hot swap.
Off Normal operation. The FortiGate-5001SX module is in contact
with the chassis backplane.
1, 2, 3, 4 Green The correct cable is connected to the gigabit SPF interface.
Flashing Network activity at the gigabit SPF interface.
FortiGate-5001SX security system
Link/Traffic
1 2 3 4 5
1 2 3 4
SFP Gigabit fiber Gigabit Copper
or copper
"Inserting a FortiGate-5001SX module into a chassis" on
for more information.
FortiGate-5000 Series Hardware Guide
Module
Position
Status
6 7 8
STA IPM
Mounting
Extraction
Knot
Lever
5 6 7 8
01-00000-0293-20060315
