FortiGate-5001SX security system

Inserting a FortiGate-5001SX module into a chassis

FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315

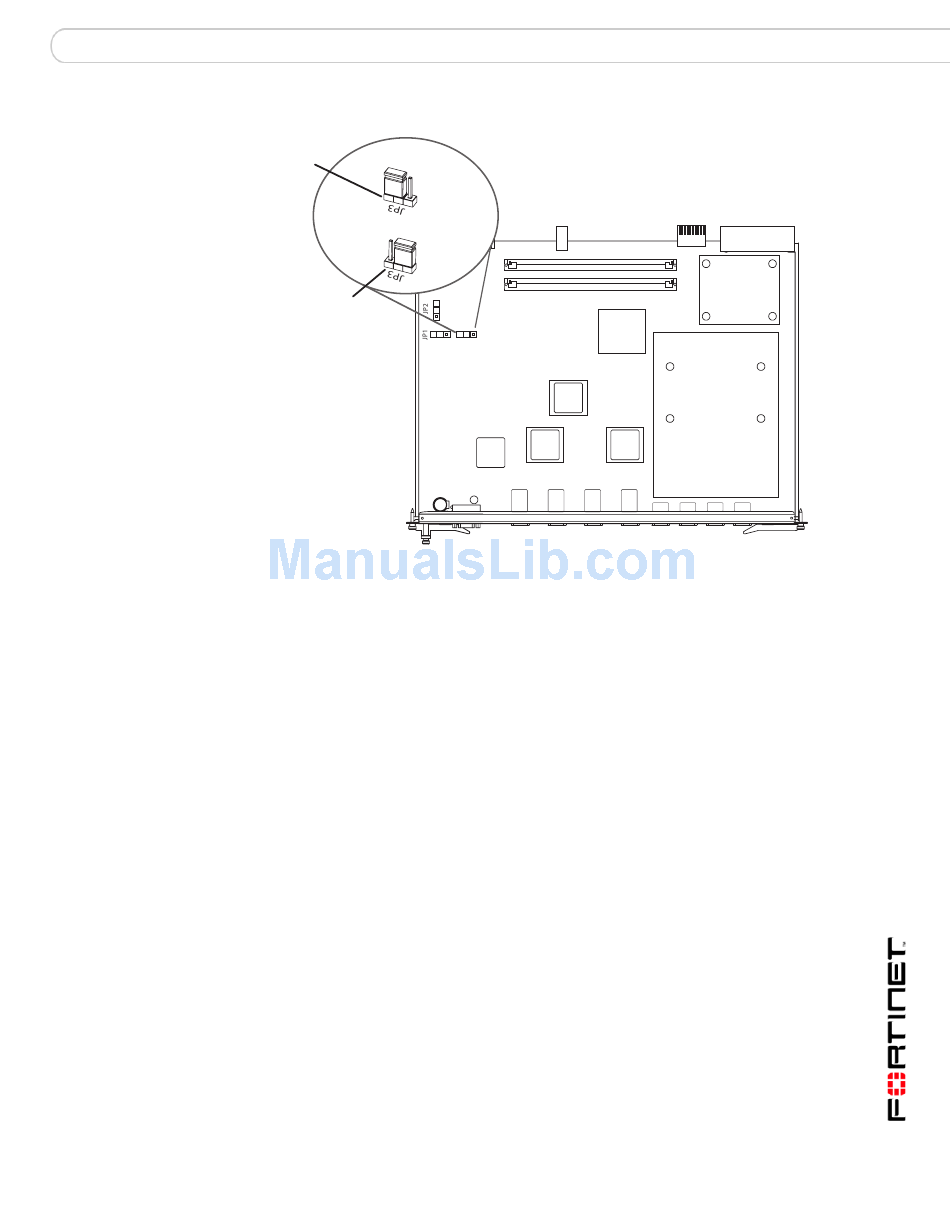

Figure 28: FortiGate-5001SX jumper positions
Pins 2 and 3
5050 and 5140 chassis
5020 chassis
Pins 1 and 2
The following procedure describes how to correctly use the FortiGate-5001SX
mounting components shown in
into a FortiGate-5000 series chassis slot.
The FortiGate-5001SX module left extraction lever contacts to a hidden power
switch. The module must be fully installed in a chassis slot and this extraction
lever must be closed and locked for the FortiGate-5001SX module to receive
power and operate normally. If the FortiGate-5001SX module is not receiving
power, the IPM LED glows blue and all other LEDs remain off.
Inserting a FortiGate-5001SX module into a chassis
JP3
Front Faceplate
Figure 29 to insert a FortiGate-5001SX module
