FortiGate-5020 back panel

FortiGate-5020 back panel
42

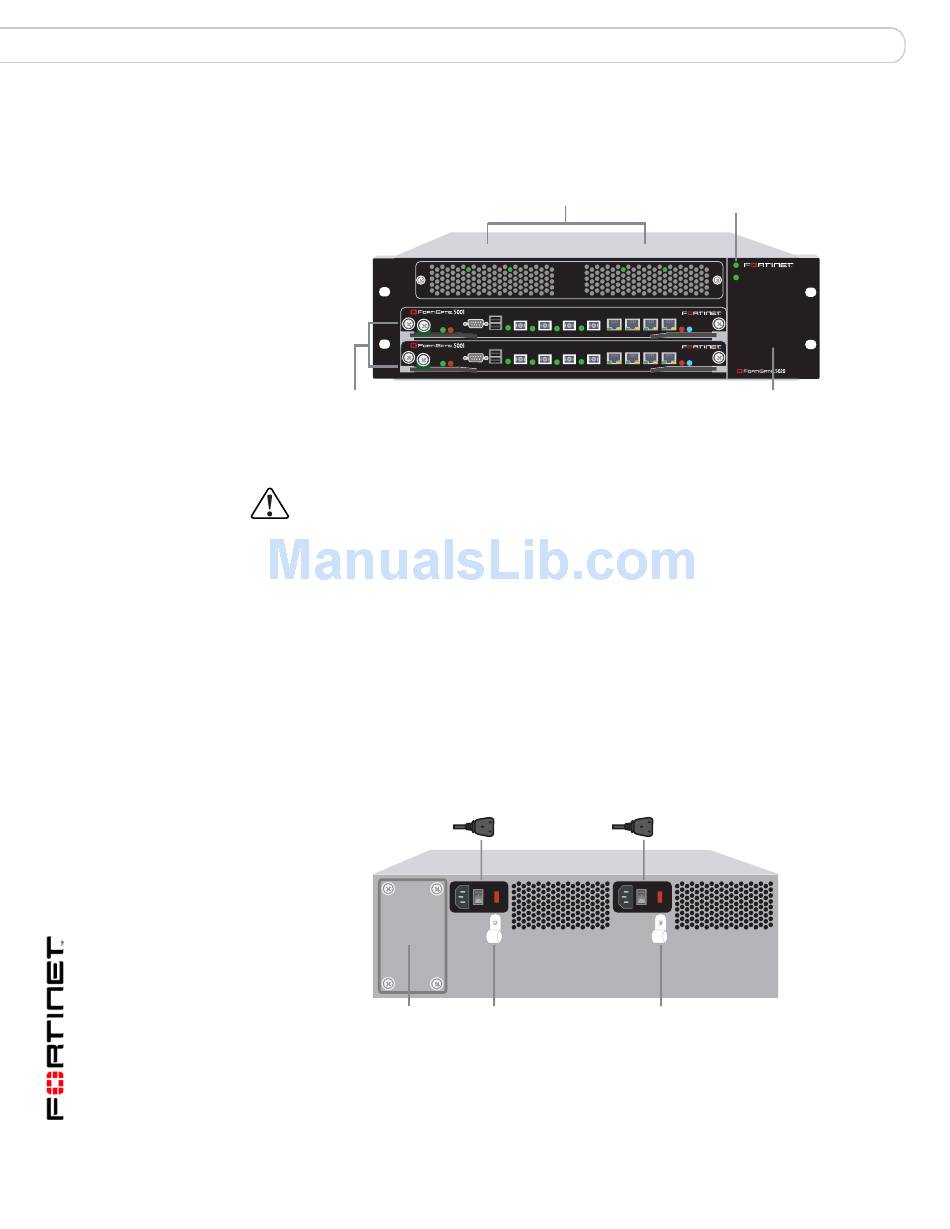

Figure 24: FortiGate-5020 front panel with two FortiGate-5001SX modules
FortiGate-5020/5050
PSU A
CONSOLE
PWR ACC
CONSOLE
PWR ACC
FortiGate-5001SX
modules
Caution: Do not operate the FortiGate-5020 chassis with open slots on the front panel. For
optimum cooling performance and safety, the slots must contain a FortiGate-5000 series
module or a cover and the removable power supply panel must be installed.
Figure 25 shows the back of a FortiGate-5020 chassis. The chassis back panel
includes two redundant AC power connectors and provides access to the hot
swappable cooling fan tray. Each AC power connector includes a 25 Amp circuit
breaker that also functions as the on/off switch for the AC power connector. You
can use the power wire fixtures to secure AC power wires to prevent the power
wires from being accidently disconnected.
Figure 25: FortiGate-5020 chassis back panel
AC power
connector
Hot swappable Power
cooling fan tray wire
fixture
Hot-swappable
power supplies
(behind panel)
PSU B
USB
1 2 3 4 5 6 7 8
USB
1 2 3 4 5 6 7 8
AC power
connector
Power
wire
fixture
FortiGate-5000 Series Hardware Guide
FortiGate-5020 chassis
Power LEDs
PSU A
PSU B
STA IPM
STA IPM
Hot swappable
cooling fan tray
(accessable from
back panel)
