FortiGate-5002FB2 security system
Inserting a FortiGate-5002FB2 module into a chassis
Before inserting the FortiGate-5002FB2 module in a chassis
Insertion procedure
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315
The following procedure describes how to correctly use the FortiGate-5002FB2
mounting components shown in
into a FortiGate-5000 series chassis slot.
The FortiGate-5002FB2 module left extraction lever contacts to a hidden power
switch. The module must be fully installed in a chassis slot and this extraction
lever must be closed and locked for the FortiGate-5002FB2 module to receive
power and operate normally. If the FortiGate-5002FB2 module is not receiving
power, the IPM LED glows blue and all other LEDs remain off.

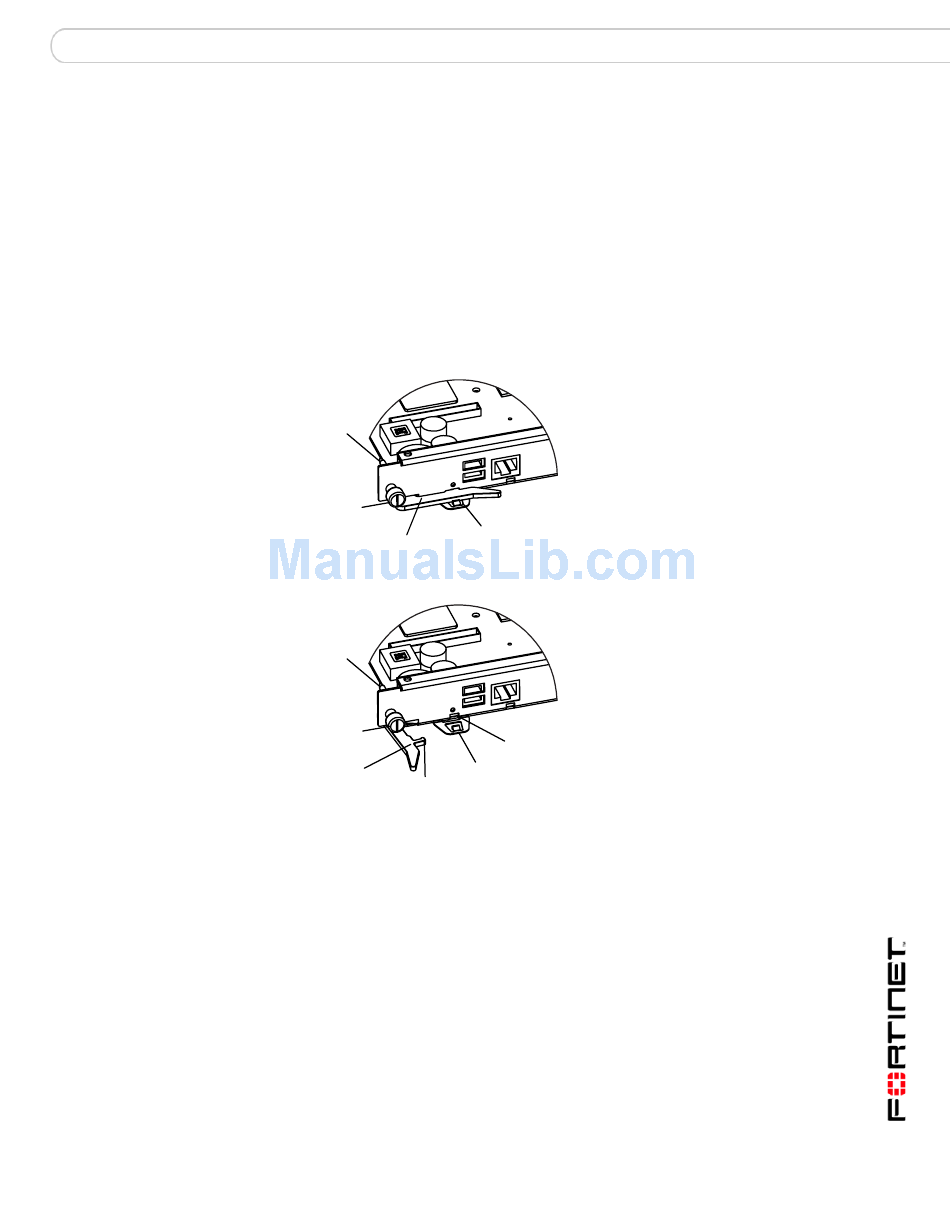

Figure 38: FortiGate-5002FB2 module mounting components
Closed
Alignment Pin
Mounting
Knot
Extraction Lever
Extraction
Lever
Open
Alignment Pin
Mounting
Knot
Extraction Lever
Extraction
Switch
Lever
Contact
Before installing the FortiGate-5002FB2 module in a chassis you must have
installed RAM DIMMs. See
FortiGate-5002FB2 modules are hot swappable. The procedure for inserting the
FortiGate-5002FB2 module into a FortiGate-5000 series chassis slot is the same
whether or not the FortiGate-5000 series chassis is powered on or not.
Inserting a FortiGate-5002FB2 module into a chassis
Figure 38
to insert a FortiGate-5002FB2 module
Lock
Power
Switch
Lock
"Installing the RAM DIMMs" on page
75.
77
