Troubleshooting
Troubleshooting
56
5

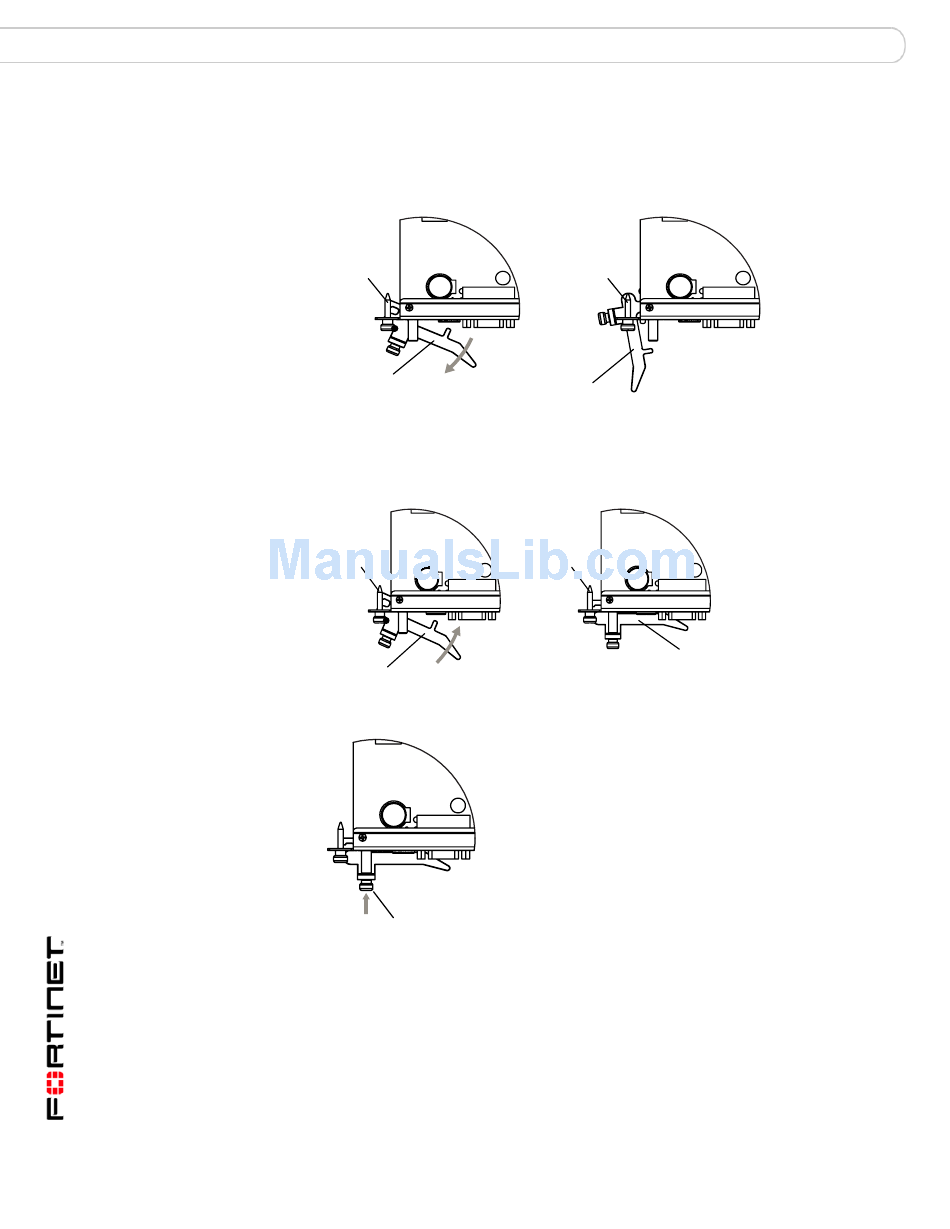

Turn both extraction levers to their fully open positions.
Opening the extraction levers slides the module a short distance out of the slot,
disconnecting the module from the chassis backplane.
The IPM LED turns blue. All other LEDs turn off.
Alignment Pin
Open
Left Extraction
Lever
6
Pull the module about half way out.
All LEDs turn off.
7
Turn both extraction levers to their fully-closed positions.
Alignment Pin
Left Extraction
Close
Lever
8
Fully tighten the left extraction lever locking screw to lock the left extraction lever.
.
Tighten
Locking Screw
9
Carefully slide the module completely out of the slot.
This section describes the following troubleshooting topics:
•
FortiGate-5001SX does not startup
FortiGate-5001SX security system
Alignment Pin
Fully Open
Left Extraction
Lever
Alignment Pin
Left Extraction
Fully Closed
FortiGate-5000 Series Hardware Guide
Lever
01-00000-0293-20060315
