Troubleshooting
FortiSwitch-5003 module
7
Carefully slide the module completely out of the slot.
Troubleshooting
This section describes the following troubleshooting topics:
•
FortiSwitch-5003 does not startup
FortiSwitch-5003 does not startup
Positioning of FortiSwitch-5003 extraction levers may prevent a FortiSwitch-5003
module for starting up correctly.
All chassis: left extraction lever not contacting power switch
The left extraction lever activates the FortiSwitch-5003 module power switch.

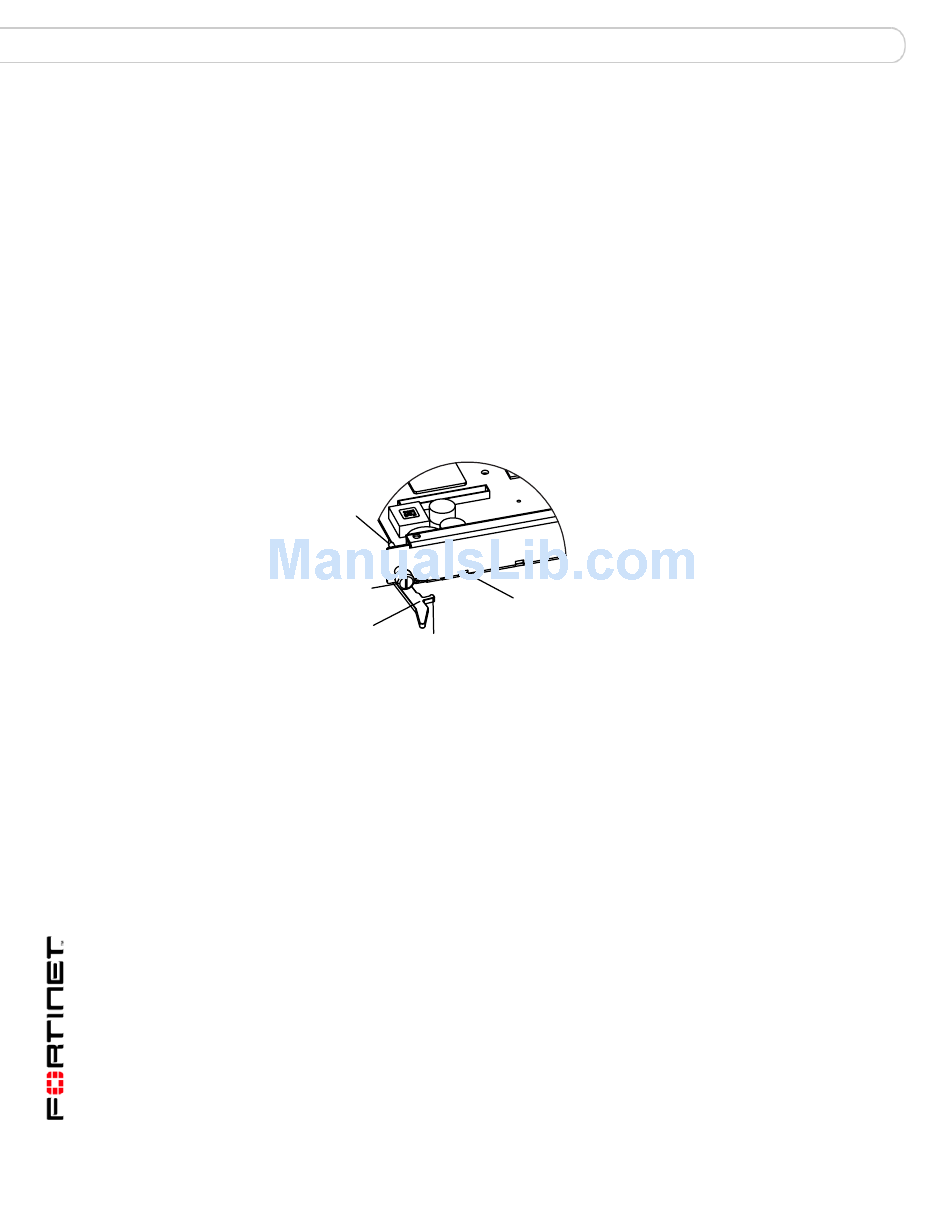

Figure 42: Location of FortiSwitch-5003 power switch
Alignment
Pin
Mounting
Power
Knot
Switch
Left Extraction
Switch
Lever
Contact
If the left extraction lever is damaged or positioned incorrectly the
FortiSwitch-5003 module does not receive power and will not start up. Make sure
the left extraction lever is correctly aligned, fully inserted and locked. Sometimes
you may have to make small adjustments to the extraction lever to achieve
contact with the switch.
FortiGate-5000 Series Hardware Guide
92
01-00000-0293-20060315
