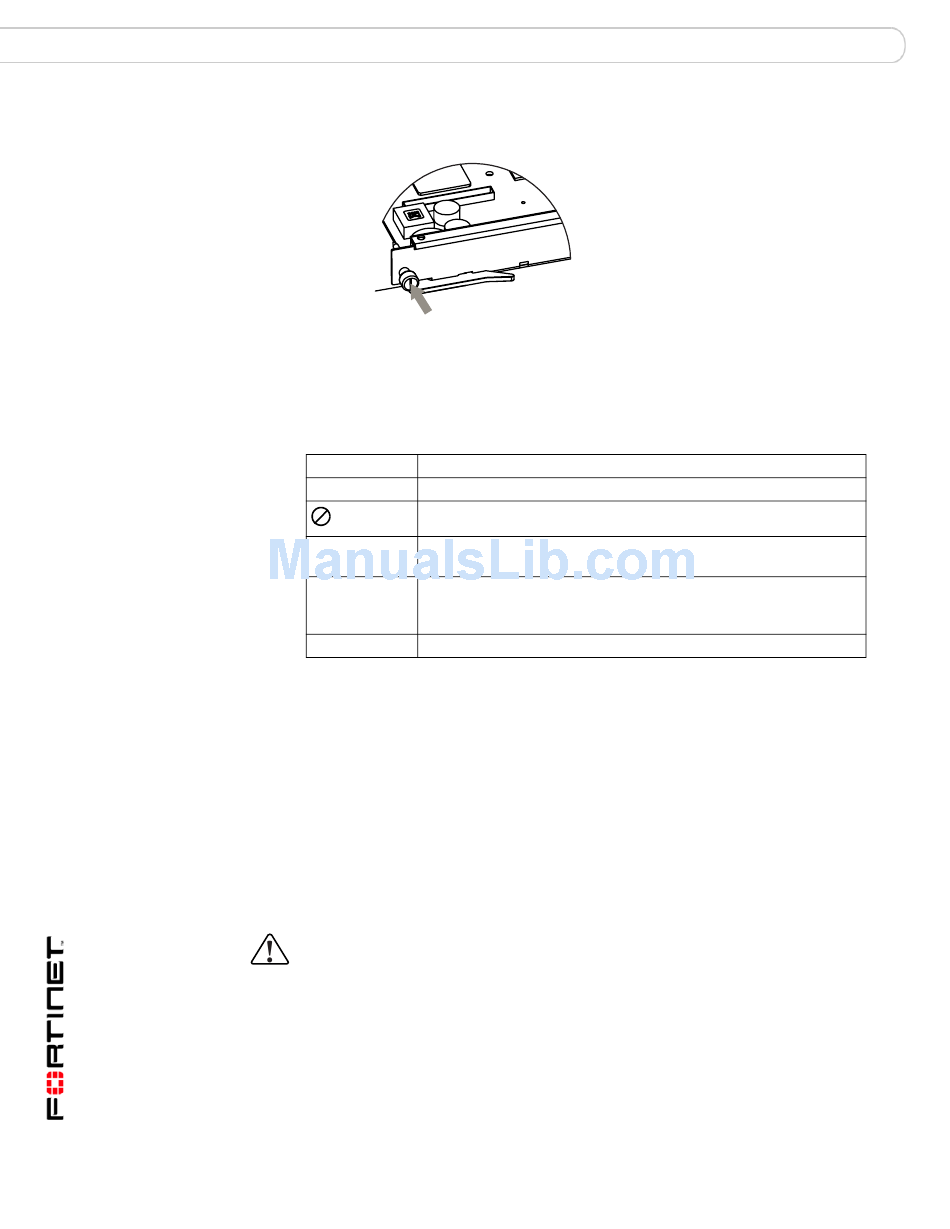

7 Fully tighten the left and right mounting knots to lock the FortiSwitch-5003 module
into position in the chassis slot.
.
Mounting
Knot
Tighten
If the chassis is powered on the FortiSwitch-5003 LEDs go through a power up
cycle. After a few minutes, if the module is operating correctly the front panel
LEDs are lit as described in
Table 17: FortiSwitch-5003 normal operating LEDs
LED State
+ Green
Off
+
System Green
Console
Network Off unless FortiGate-5000 series modules are operating in HA mode.
activity LEDs
0-15
OK Green
The following procedure describes how to correctly use the FortiSwitch-5003
mounting components shown in
from a FortiGate-5000 series chassis slot.
To remove a FortiSwitch-5003 module from a FortiGate-5000 series chassis
FortiSwitch-5003 modules are hot swappable. The procedure for removing the
FortiSwitch-5003 module from a FortiGate-5000 series chassis slot is the same
whether or not the FortiGate-5000 series chassis is powered on or not.
Caution: Do not carry the FortiSwitch-5003 module by holding the extraction levers. When
inserting or removing the FortiSwitch-5003 module from a chassis slot, handle the module
by the front panel. The extraction levers are designed for positioning and locking the
FortiSwitch-5003 module into a slot in a chassis only and should not be used for handling
the module. If the extraction levers become bent or damaged the FortiSwitch-5003 module
may not align correctly in the chassis slot and the left extraction lever may not activate the
power switch.
Table 17.
Figure 41 to remove a FortiSwitch-5003 module
FortiGate-5000 Series Hardware Guide
FortiSwitch-5003 module
01-00000-0293-20060315
