Inserting a FortiGate-5001FA2 module into a chassis
68
7 Turn both extraction levers to their fully-closed positions.
The extraction levers should hook into the sides of the chassis slot. Closing the
extraction levers draws the FortiGate-5001FA2 module into place in the chassis
slot and into contact with the chassis backplane. The FortiGate-5001FA2 front
panel should be in contact with the chassis front panel. When the extraction levers
are fully-closed they lock into place.

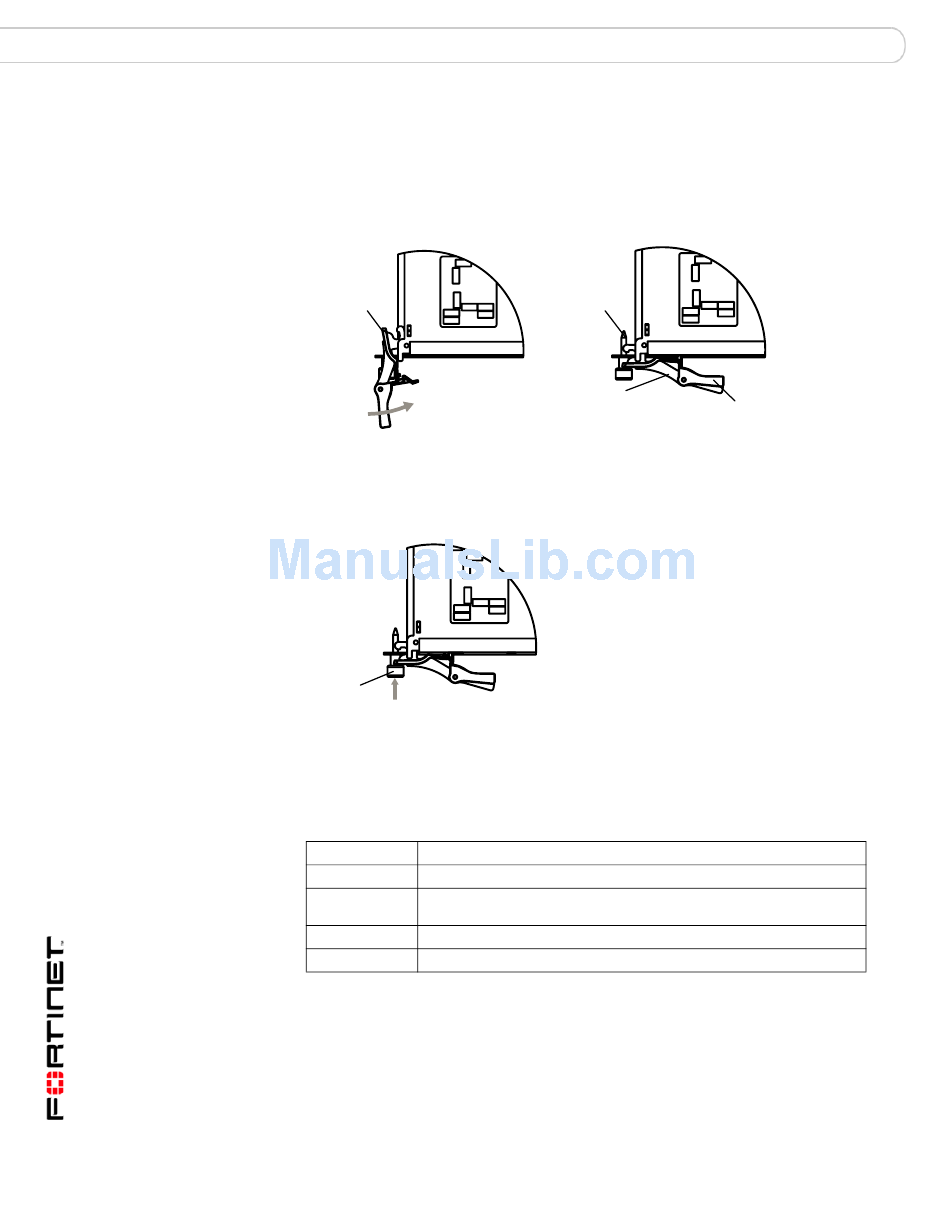

Alignment Pin
Close
If the chassis is powered on, as the module slides into place the IPM LED starts
flashing blue.
8 Fully tighten the left and right mounting knots to lock the FortiGate-5001FA2
module into position in the chassis slot.
.
Mounting
Knot
Tighten
If the chassis is powered on the PWR LED turns green and the STA LED turns
RED. The ACC LED also starts flashing red. After a few minutes, if the module is
operating correctly the front panel LEDs are lit as described in
Table 11: FortiGate-5001FA2 normal operating LEDs
LED State
PWR Green
ACC Off (Or flashing red when the system accesses the FortiGate-5001FA2
flash disk.)
STA Green
IPM Off
FortiGate-5001FA2 security system
Alignment Pin
Extraction
Fully Closed
Lever
and Locked
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315
Table 11.
