Inserting a FortiGate-5001FA2 module into a chassis

Before inserting the FortiGate-5001FA2 module in a chassis

Insertion procedure

66

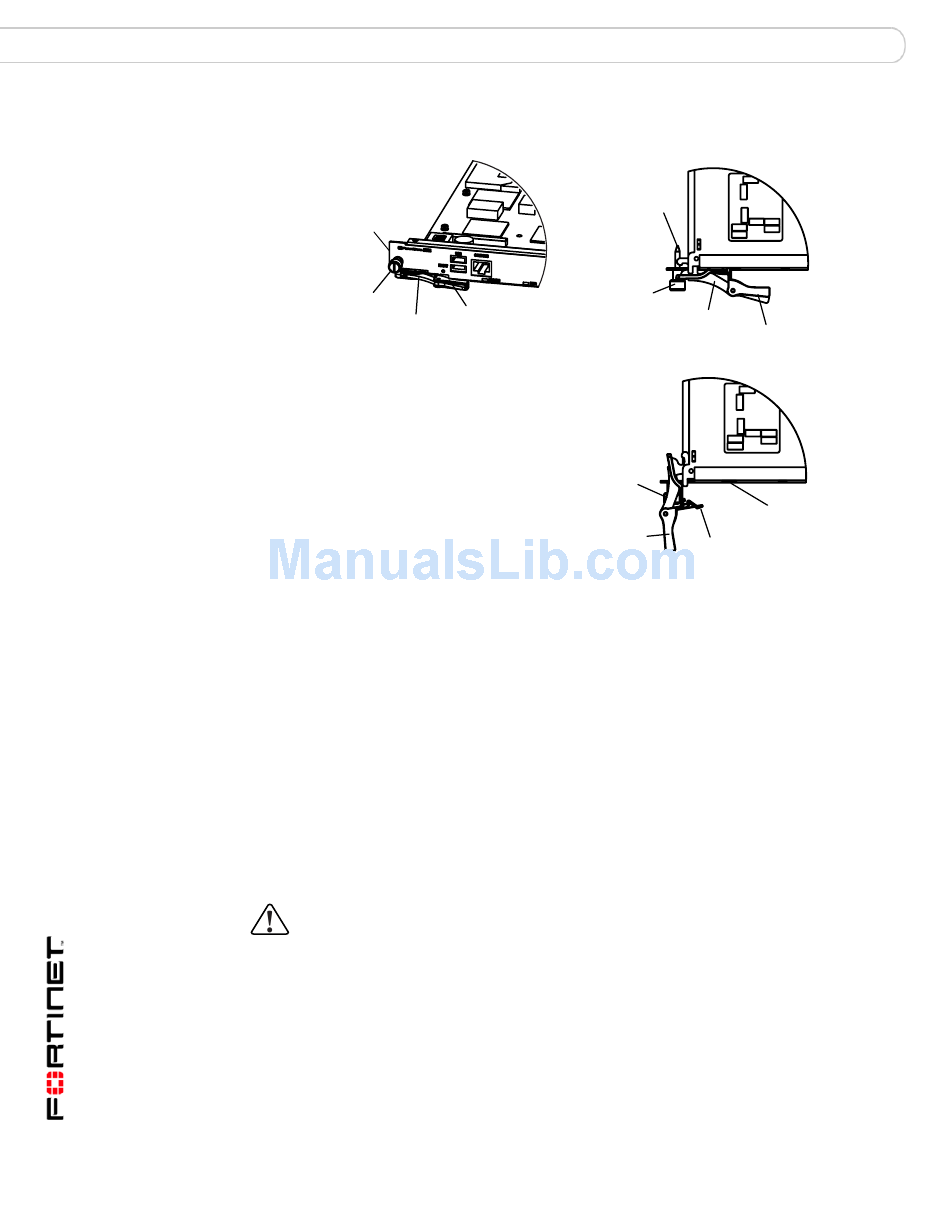

Figure 34: FortiGate-5001FA2 module mounting components
Alignment Pin
Mounting
Lock
Knot
Extraction
Lever
Before installing the FortiGate-5001FA2 module in a chassis you must have
installed RAM DIMMs the verified the JP3 jumper setting. You can also install the
SPF transceivers before inserting the module.
• "Installing the RAM DIMMs" on page 61
• "Installing SFP transceivers" on page 63
• "Changing jumper settings" on page 63
FortiGate-5001FA2 modules are hot swappable. The procedure for inserting the
FortiGate-5001FA2 module into a FortiGate-5000 series chassis slot is the same
whether or not the FortiGate-5000 series chassis is powered on or not.
To insert a FortiGate-5001FA2 module into a FortiGate-5000 series chassis
Caution: Do not carry the FortiGate-5001FA2 module by holding the extraction levers.
When inserting or removing the FortiGate-5001FA2 module from a chassis slot, handle the
module by the front panel. The extraction levers are designed for positioning and locking
the FortiGate-5001FA2 module into a slot in a chassis only and should not be used for
handling the module. If the extraction levers become bent or damaged the
FortiGate-5001FA2 module may not align correctly in the chassis slot and the extraction
levers may not activate the power switch.
To complete this procedure, you need:
• A FortiGate-5001FA2 module
• A FortiGate-5000 series chassis with an empty slot
FortiGate-5001FA2 security system
Closed
Alignment Pin
Mounting
Knot
Extraction
Lever
Open
Left Extraction
Lever
Lock
Switch Contact
FortiGate-5000 Series Hardware Guide
01-00000-0293-20060315
Lock
Power
Switch
