Hayward OmniLogic Troubleshooting Manual page 16

How To: Connect Via Wi-Fi (cont.)
PoE (Power over Ethernet): the cable plugged into the injector's "PoE" port should
NEVER terminate at the MSP. Power from the injector goes to the HLWLAN ONLY.

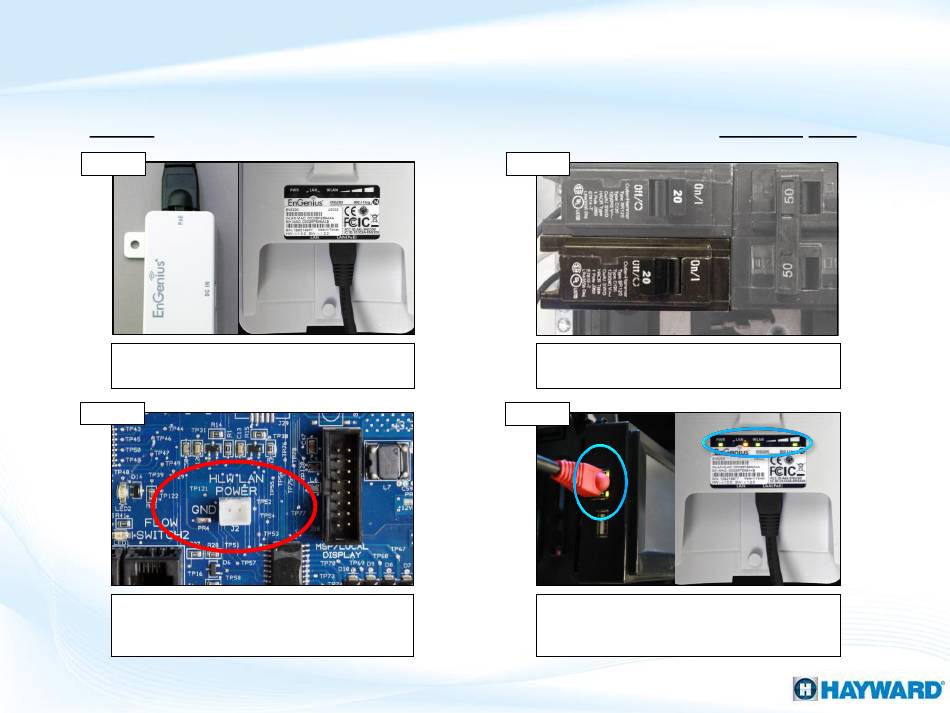

Step 4 Step 5
Plug the longer cable into "PoE" on the injector Power down the OmniLogic at the breaker and
into the "LAN (PoE)" of the HLWLAN. remove the dead front.
Step 6 Step 7
Plug the injector's power cable, into the Restore power to the OmniLogic. Verify the
"HLWLAN POWER" found on the OmniLogic's MSP's Ethernet LEDs are illuminated as well as
MPP (main board). the "PWR" and "LAN" from the HLWLAN.
