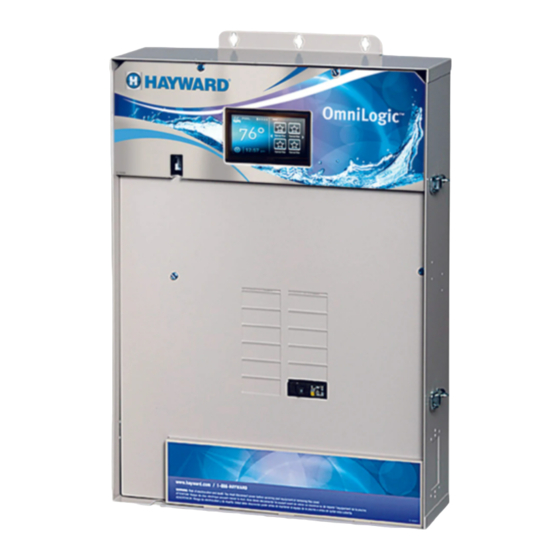

Hayward OmniLogic Quick Reference Manual

Wired network setup

Hide thumbs Also See for OmniLogic:

Quick Reference Guide

Wired Network Setup

Ethernet Cable to

Router LAN Port

Home Router

Computers,

and other devices

2. Con gure wired connection by selecting:

For dynamic (DHCP):

select "dynamic" on text bar

con rm and save with check mark

Note: Network status (top left)

should be in "ON" position

For static (Fixed IP):

select "static" on text bar

enter IP for each eld

con rm and save with check mark

Note: Network status (top left)

should be in "ON" position

Con g>Wired Networking>

MSP

Internet

Connection

Table of Contents

Do you have a question about the OmniLogic and is the answer not in the manual?

Page 1 Quick Reference Guide Wired Network Setup 1. Connect MSP to Home Router Ethernet Cable to Router LAN Port Home Router Computers, Internet and other devices Connection 2. Con gure wired connection by selecting: Con g>Wired Networking> For dynamic (DHCP): select “dynamic” on text bar con rm and save with check mark Note: Network status (top left) should be in “ON”...
Page 2 Check connection and signal strength using another Wi-Fi ready device Verify network encryption through router To view OmniLogic tutorials please visit: www.hayward.com/omnivideos To take a closer look or see other Hayward products please go to: www.hayward.com or call 1-844-365-6442 QRG-OLNETSf...
