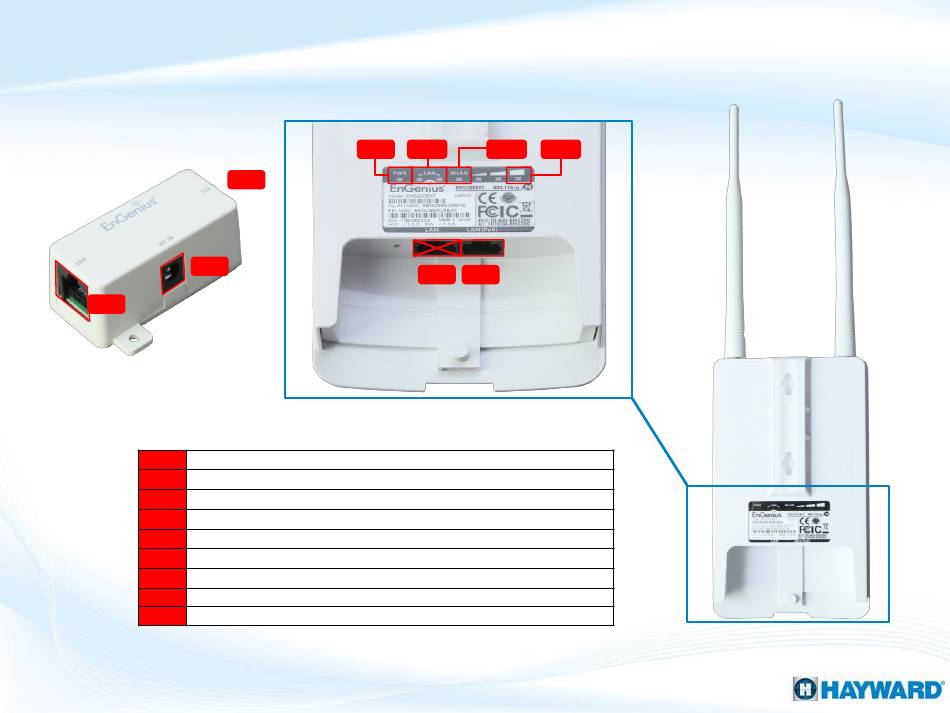

OmniLogic: Wi-Fi Bridge (HLWLAN)
Injector
B3
A3
A3
LAN Port (Ethernet cable from LAN port to MSP)
B3
Power to Injector (power cable plugs into the MPP)
C3
PoE Port (Ethernet cable from PoE to LAN (PoE) of the HLWLAN)
D3
UNUSED
E3
LAN (PoE) Port (Ethernet cable from the LAN (PoE) to PoE of the injector)
F3
PWR LED (indicates HLWLAN has Power over Ethernet from injector)
G3
LAN LEDs (indicate connection with local area network)
H3
WLAN (should only appear when SSIDs are available)
I 3
Signal LED (should only appear when connected to Wi-Fi network)
8
F3
C3
G3
H3
I3
D3
E3
HLWLAN
