Unpacking and Installing Your SmartSTACK Ethernet ELS10-27
Table 2-3. General Considerations for Mounting a
Consideration
Mechanical Loading
Circuit Overloading
Grounding
(Earthing)
The SmartSTACK Ethernet ELS10-27 can be rack-mounted in a standard
19-inch equipment cabinet. To mount the SmartSTACK Ethernet
ELS10-27 in a rack assembly, apply the following steps:
1. Attach the rackmount brackets to both sides of the SmartSTACK
Ethernet ELS10-27 chassis, as shown in Figure 2-3.
2. Place the SmartSTACK Ethernet ELS10-27 chassis in the cabinet.
SmartSTACK Ethernet ELS10-27 (Continued)
Do not place equipment on top of a rack-
mounted SmartSTACK Ethernet ELS10-27.
Make sure the power supply circuit to the
rack assembly is not overloaded.
Rack-mounted equipment should be
grounded. In addition to the direct
connections to the main power supplies, make
sure all the other supply connections are also
grounded.
ETHERNET SWITCH
PORT STATUS MODE
STATUS
ELS10-27TX
PWR
TX ACT FDX MON
COM
RESET CPU
RX COL 100 USR
2X 4X 6X

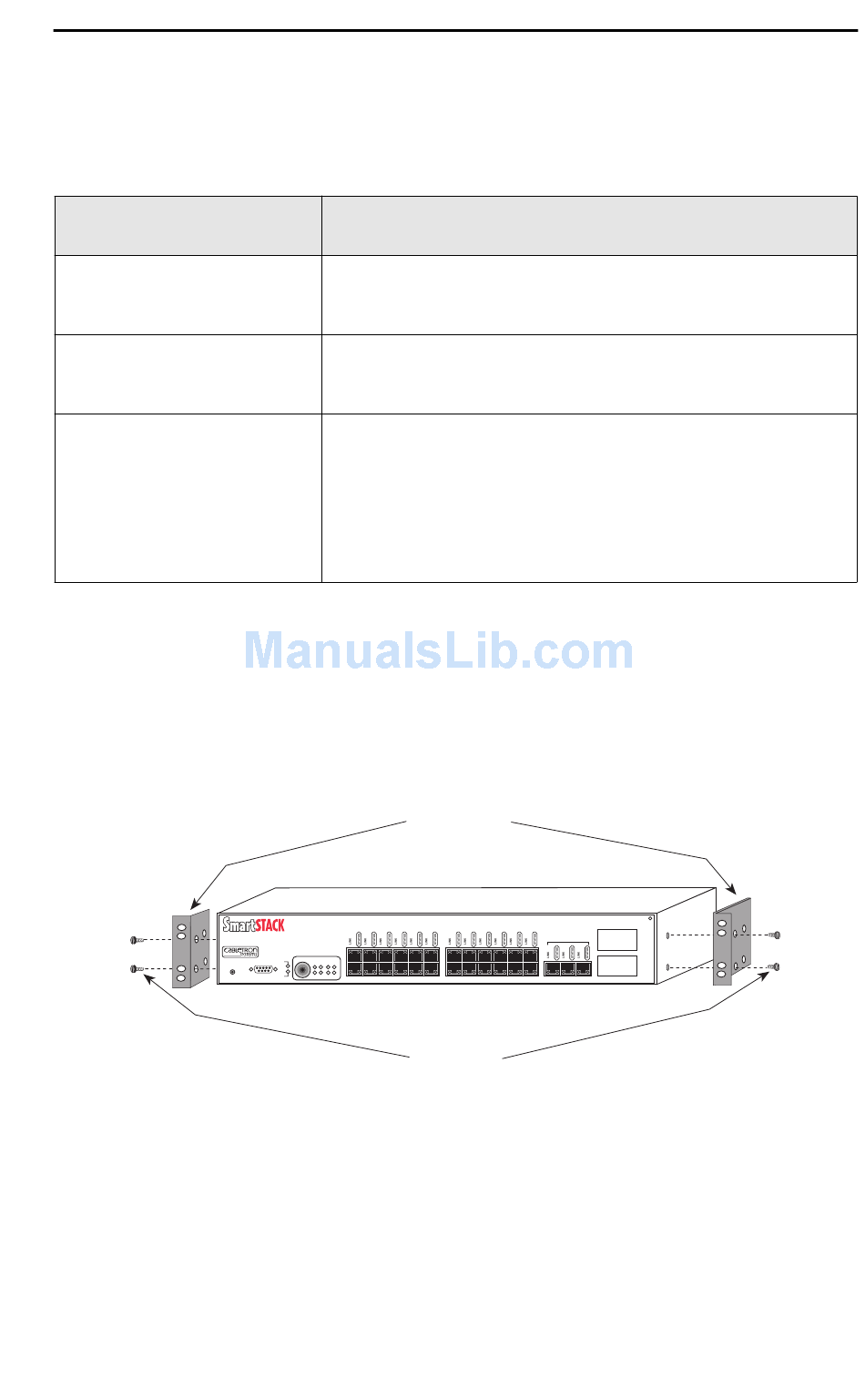

Figure 2-3. Attaching Rackmount Brackets
Discussion
Rackmount
Brackets (2)
10BASE-T/100BASE-TX
8X 10X 12X 14X 16X 18X 20X 22X 24X 25X
Screws (4)
EPIM100
26
26X 27X 27
