Unpacking and Installing Your SmartSTACK Ethernet ELS10-27
10BASE-T/100BASE-TX
25X
Note: Installing an EPIM replaces one of the 100TX ports.
2.3 INSTALLING THE SMARTSTACK ETHERNET
ELS10-27
Rack-mounting a SmartSTACK Ethernet ELS10-27
Table 2-3 describes some general considerations you should be aware of
before mounting a SmartSTACK Ethernet ELS10-27 in a rack assembly.
Table 2-3. General Considerations for Mounting a
Consideration
Temperature
Air Flow
2-6
26X 27X

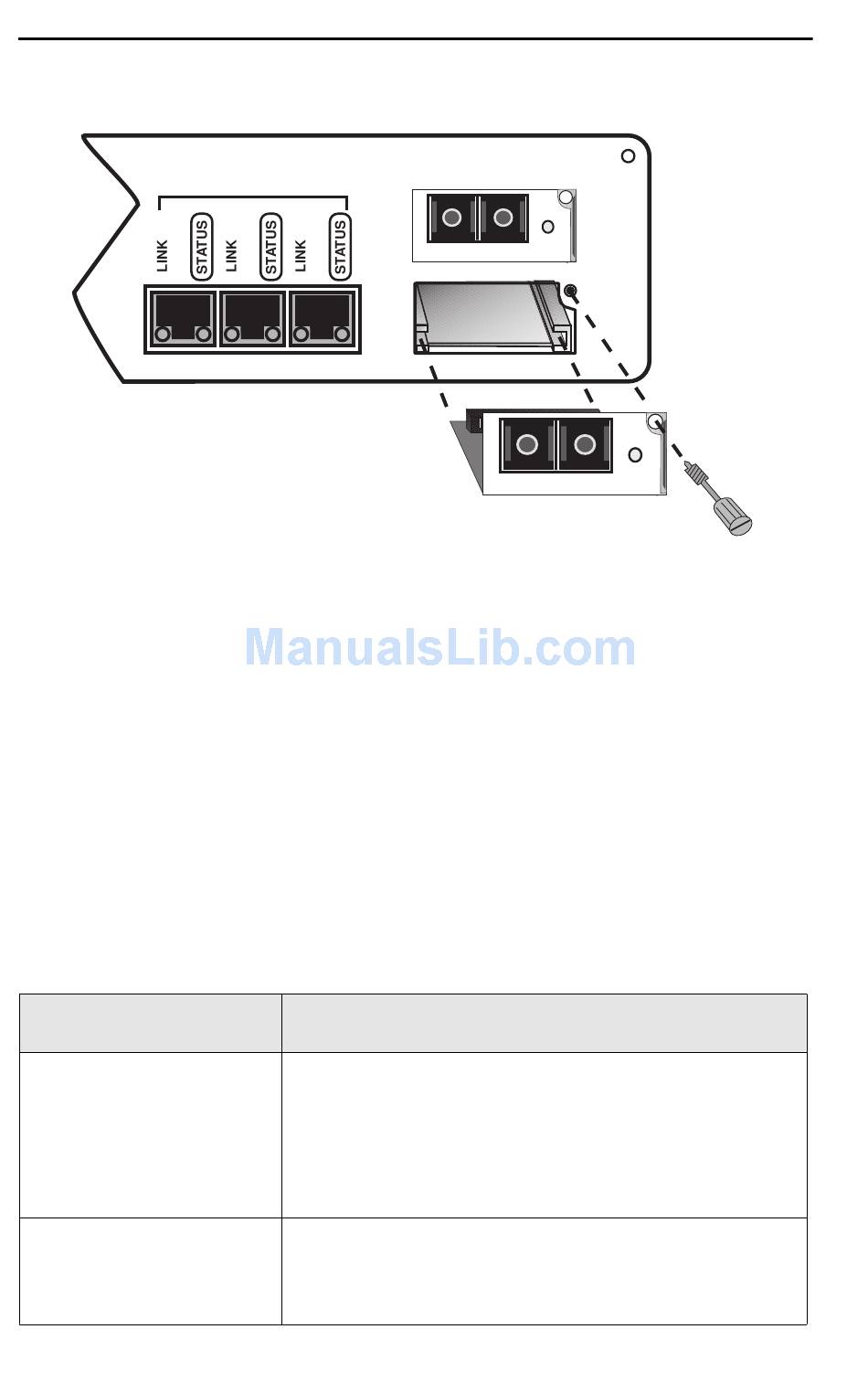

Figure 2-2. Installing an EPIM
SmartSTACK Ethernet ELS10-27
Since the temperature within a rack assembly
may be higher than the ambient room
temperature, make sure the rack environment
temperature is within the Operating
Temperature range speciÞed in Appendix A.
Make sure there is at least 2 inches (or more)
on both sides of the SmartSTACK Ethernet
ELS10-27 to allow for adequate air ßow.
EPIM100
LNK
EPIM-100FX
EPIM100
LNK
EPIM-100FX
