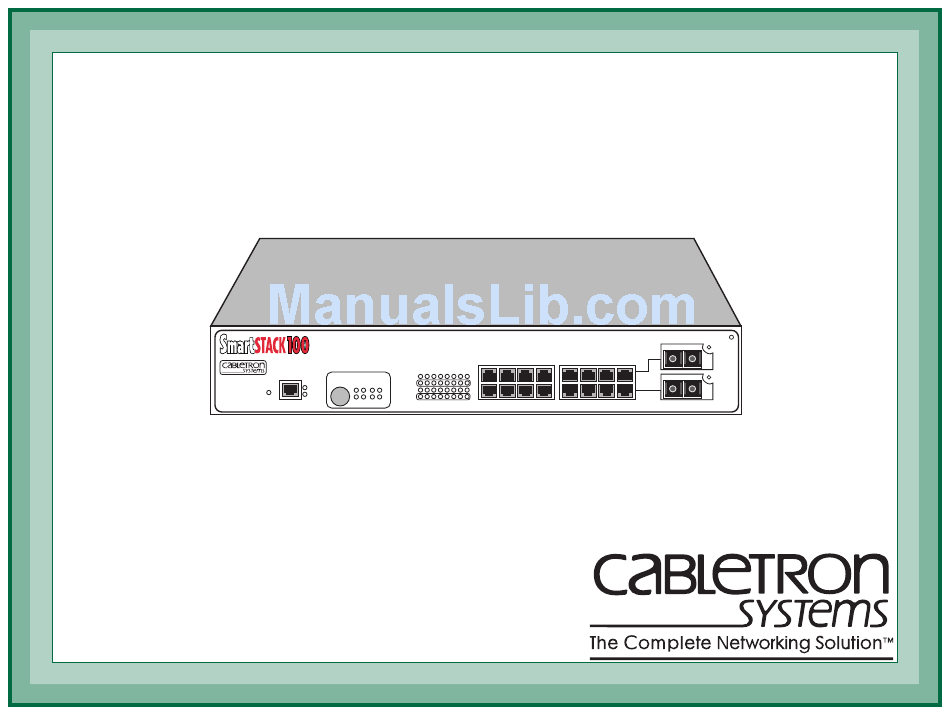

Getting Started with the SmartSTACK 100 ELS100-16TX
ELS100-16TX
9032406-01
PORT STATUS MODE
1
3
5
7
LINK
STATUS
STATUS
TX ACT
FDX MON
PWR
LINK
CPU
STATUS
RESET
RX COL
100 USR
COM
2
4
6
8 10 12 14 16
1X
3X
5X
7X
9X
11X
13X
15X
9 11 13 15
2X
4X
6X
8x
10X
12X
14X
16X
EPIM100
EPIM100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSTACK 100 ELS100-16TX and is the answer not in the manual?

Questions and answers

Summary of Contents for Cabletron Systems SmartSTACK 100 ELS100-16TX

  • Page 1 Getting Started with the SmartSTACK 100 ELS100-16TX RESET ELS100-16TX 9032406-01 PORT STATUS MODE 9 11 13 15 LINK STATUS STATUS TX ACT FDX MON LINK STATUS RX COL 100 USR 8 10 12 14 16 EPIM100 EPIM100...
  • Page 3: Fcc Notice

    NOTICE Only qualified personnel should perform installation procedures. Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made.
  • Page 4 CABLETRON SOFTWARE PROGRAM LICENSE LICENSE. You have the right to use only the one (1) copy of the Program provided in this package subject to the terms and conditions of this License Agreement. You may not copy, reproduce or transmit any part of the Program except as permitted by the Copyright Act of the United States or as authorized in writing by Cabletron.
  • Page 5: Table Of Contents

    Contents Welcome to the SmartSTACK 100 ELS100-16TX... 1 Getting Help ...1 Setting Up and Powering Up the ELS100-16TX ...2 Attaching Power Cord and Connecting to a Power Source ... 2 Checking the Power-up Diagnostics Sequence ...2 Connecting UTP Cables ...4 Installing an Ethernet Port Interface Module (EPIM) ...5...
  • Page 6 – iv –...
  • Page 7: Welcome To The Smartstack 100 Els100-16Tx

    ELS100-16TX into your network. This guide will provide you with what you need to know to: • set up and power up the SmartSTACK 100 ELS100-16TX • connect devices to the SmartSTACK 100 ELS100-16TX •...
  • Page 8: Setting Up And Powering Up The Els100-16Tx

    ELS100-16TX. The ELS100-16TX is not equipped with an on/off switch. To power- up the unit, connect the power cord to a 120 VAC or 240 VAC single-phase stress grounded outlet.
  • Page 9 3. After several seconds, the CPU LED will stay on and only one Port Status LED is lit. This indicates the power-up diagnostics sequence is complete. Note: If a critical component fails diagnostics, the CPU LED will turn off and the ELS100-16TX will attempt to reboot. If the CPU LED does not stay on, contact the Cabletron Systems Global Call Center.
  • Page 10: Connecting Utp Cables

    ELS100-16TX RJ-45 Note: RX+/RX- and TX+/TX- must share a common color pair. – 4 – Connecting UTP Cables Before connecting a segment to the ELS100-16TX, check each end of the segment to verify wire crossover. Caution: To establish a link, you must have an odd number of crossovers (preferably one) between 10BASE-T devices of the same type (i.e., from repeater to repeater or transceiver to transceiver).
  • Page 11: Installing An Ethernet Port Interface Module (Epim)

    Installing an Ethernet Port Interface Module (EPIM) Only qualified personnel should perform installation procedures. The ELS100-16TX provides two slots for a Cabletron EPIM-100FX (Ethernet Port Interface Module). The ELS100-16TX is shipped without EPIMs. To install an EPIM, follow the procedure below: 1.
  • Page 12: Connecting A Multimode Segment To The Epim-100Fx

    Connecting a Multimode Segment to the EPIM-100FX The EPIM-100FX has an SC style network port. Cabletron Systems supplies fiber optic cable that uses SC style connectors that are keyed to ensure proper crossing over of the transmit and receive fibers. Caution: An odd number of crossovers (preferably one) must be maintained between devices so that the transmit port of one device is connected to the receive port of the other device and vice...
  • Page 13: Connecting The Local Console Manager To A Terminal

    Connecting the Local Console Manager to a Terminal The Local Console Manager (LCM) is a command-line interface for configuring, monitoring, and managing the ELS100-16TX through the out-of-band RS232C connection on the front panel. To connect LCM: 1. Connect your VT series terminal or terminal emulator to the out-of-band management RS232C port on the front panel of the ELS100-16TX using the twisted pair cable with RJ45 connectors shipped with the unit.
  • Page 14: Lcm Commands

    LCM Commands addresses display Displays learned addresses. Options: ADDRESS MASK Example: address display any Enter arp display Displays the ARP table. Example: arp display Enter baud Displays the current baud rate of your LCM console connection, and allows you to change the baud rate. Options: 2400 4800...
  • Page 15 help Displays the available LCM commands. You can also type a question mark (?) to display the available LCM commands. Example: help Enter ident Displays the ELS100-16TX serial number, the EPIM up-link module number (if installed), power-up test codes, and diagnostic information. Example: ident Enter ipaddr...
  • Page 16 traplog Displays the traps messages captured by the ELS100-16TX. Example: traplog Enter trunk Displays the current trunking status for all monitored ports, and allows you to set trunking for a specific port or range of ports. Options: Example: trunk 7-10, 15 on Enter workgroups Allows you to display or set workgroups.
