Chapter 10: BGP Configuration Guide
Figure 16
AS-64900
SSR8
EBGP
Peer
SSR9
IBGP
Cluster
Client
In this example, there are two clusters. Router SSR10 is the route reflector for the first
cluster and router SSR11 is the route reflector for the second cluster. Router SSR10 has
router SSR9 as a client peer and router SSR11 as a non-client peer.
The following line in router SSR10's configuration file causes it to be a route reflector.
bgp set peer-group SSR9 reflector-client
160
shows a sample configuration that uses route reflection.
AS-64901
SSR10
IBGP
Non-Cluster
Client

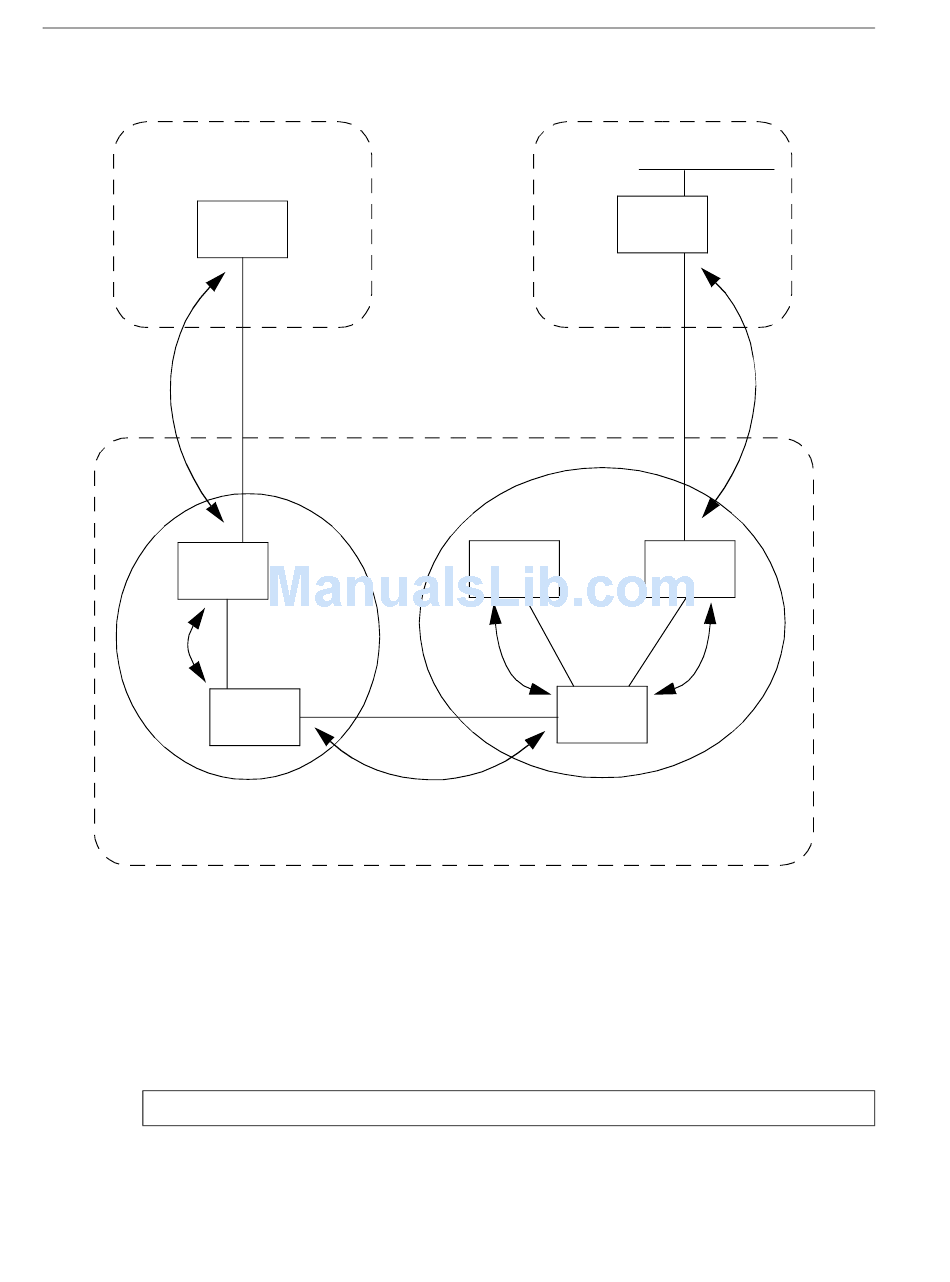

Figure 16. Sample BGP Configuration (Route Reflection)
AS-64902
192.68.20.2
192.68.20.1
SSR12
172.16.30.2
IBGP
Cluster
Client
SSR11
SmartSwitch Router User Reference Manual
192.68.222.1
SSR14
EBGP
Peer
SSR13
IBGP
Cluster
Client
