7H02-06 Fast Ethernet
™
SmartSWITCH
Interface
Module User's Guide
9031924

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartSWITCH 7H02-06 and is the answer not in the manual?

Questions and answers

Related Manuals for Cabletron Systems SmartSWITCH 7H02-06

Summary of Contents for Cabletron Systems SmartSWITCH 7H02-06

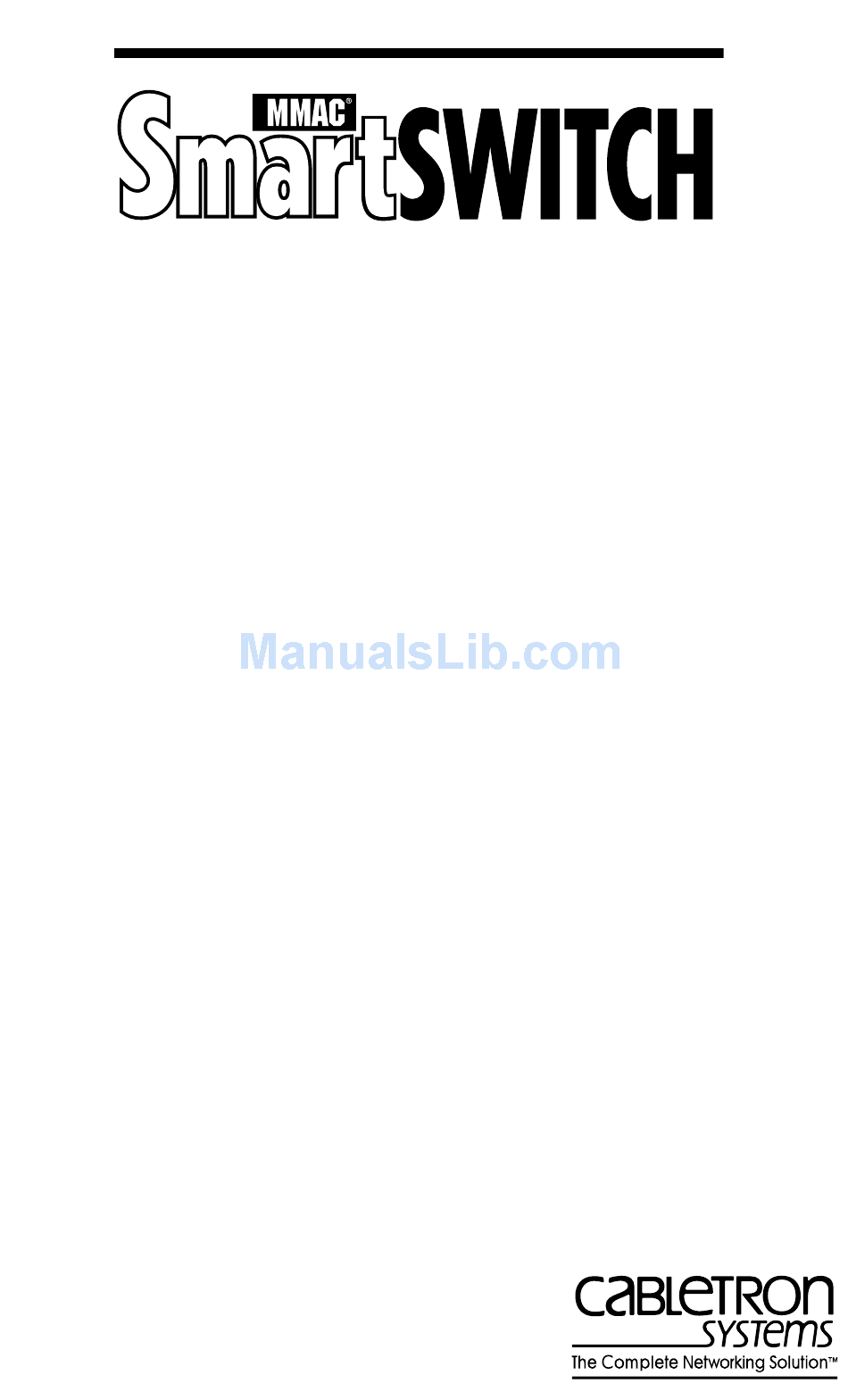

  • Page 1 7H02-06 Fast Ethernet ™ SmartSWITCH Interface Module User’s Guide 9031924...
  • Page 3 Notice NOTICE Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made.

  • Page 4: Fcc Notice

    Notice FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Vcci Notice

    Notice brouillage radioélectrique édicté par le ministère des Communications du Canada. VCCI NOTICE This equipment is in the 1st Class Category (information equipment to be used in commercial and/or industrial areas) and conforms to the standards set by the Voluntary Control Council for Interference by Information Technology Equipment (VCCI) aimed at preventing radio interference in commercial and/or industrial areas.
  • Page 6 Notice EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including Its documentation and media). CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO YOU BY CABLETRON IN WRITING, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABLITY...

  • Page 7: Table Of Contents

    CHAPTER 3 INSTALLATION 3.1 UNPACKING THE 7H02-06 MODULE...3-1 3.2 INSTALLING FEPIMS...3-1 3.3 INSTALLING/REMOVING THE 7H02-06 MODULE...3-3 3.3.1 Installing the 7H02-06 Module in a 7C03 MMAC SmartSwitch...3-3 3.3.2 Removing the 7H02-06 Module from a 7C03 MMAC SmartSwitch...3-5 3.3.3 Installing the 7H02-06 Module in a 7C04 or 7C04-R Chassis ...3-6...
  • Page 8 Contents 5.3 SAFETY...5-1 5.4 EMI ...5-1 5.5 IMMUNITY...5-2 5.6 NETWORK INTERFACES ...5-2 5.7 SERVICE ...5-2 5.8 PHYSICAL ...5-2 5.8.1 Dimensions ...5-2 5.8.2 Weight ...5-2 5.8.3 Environmental ...5-3 APPENDIX A A.1 FE-100TX ... A-1 A.2 FE-100FX... A-1...

  • Page 9: Chapter 1 Introduction

    Before installing the module, carefully read this manual to gain a full understanding of its capabilities. The 7H02-06 Module is a six port Fast Ethernet module that supports 10/100 operation in both half and full duplex. The 7H02- 06 Module supports auto negotiation allowing it to automatically use the fastest link both it and the attached device are capable of.

  • Page 10: The 7H02-06 Module

    Introduction 1.2 THE 7H02-06 MODULE The 7H02-06 Module provides six Fast Ethernet ports via 5 RJ45 connectors and one FEPIM. The 7H02-06 Module can be installed • The 7C03 MMAC SmartSwitch • The 7C04 Workgroup SmartSwitch Chassis • The 7C04-R Workgroup SmartSwitch Redundant Chassis The 7H02-06 Module has one backplane connection and six front panel connections.

  • Page 11: 7C03 Mmac Smartswitch, The 7C04 Workgroup Smartswitch And The 7C04-R Workgroup Smartswitch

    1.2.2 7C03 MMAC SmartSwitch, the 7C04 Workgroup SmartSwitch and the 7C04-R Workgroup SmartSwitch The 7H02-06 Module is designed to be installed in the 7C03 MMAC SmartSwitch, the 7C04 Workgroup SmartSwitch or the 7C04-R Workgroup SmartSwitch. The modular design of the 7C03 MMAC SmartSwitch allows other...

  • Page 12: Features

    Introduction Ring to be used with the 7H02-06 Module. These modules provide the capability to share data without the use of external bridges or routers. The 7C03 MMAC SmartSwitch is a unique module that can be installed in an MMAC Series chassis. The 7C04 Workgroup SmartSwitch and the 7C04-R Workgroup SmartSwitch are stand- alone chassis that provide the same functions.

  • Page 13: Fepims

    Refer to Appendix A of this manual for the specifications for these FEPIMs. 1.3.3 Connectivity The 7H02-06 Module has one backplane connection and five front panel RJ45 connections and one FEPIM connection. The backplane connection provides power to the 7H02-06 Module and a channel for communication with the 7X00 SmartSwitch Control Module.

  • Page 14: Related Manuals

    7C04-R Workgroup SmartSwitch Installation Guide 1.5 GETTING HELP If you need additional support related to the Cabletron Systems 7H02-06 Module, or if you have any questions, comments or suggestions related to this manual, contact Cabletron Systems Technical support: By phone:...

  • Page 15: Chapter 2 Network Requirements

    Before installing Cabletron Systems 7H02-06 Module, review the network requirements outlined in this chapter. All requirements included in this chapter should be met to ensure satisfactory performance of the 7H02-06 Module. Failure to do so may result in unsatisfactory network performance. 2.1 FEPIM MODULE SPECIFICATIONS...

  • Page 16: Fe-100Tx And Fixed Rj45 Ports

    Network Requirements Transmitter power parameters are listed in Table 2-2. Table 2-2. Transmitter Power Parameters Typical Parameter Value 50/125 m -13.0 dBm fiber 62.5/125 -10.0 dBm m fiber 100/140 -7.0 dBm m fiber Error Rate Better than The link distance is up to 2 kilometers on the multimode fiber-optic cable as specified by ANSI MMF-PMD.
  • Page 17 Pin Number The link distance is up to 100 meters on unshielded Category 5 twisted pair cable as specified by ANSI TP-PMD. Table 2-3. FEPIM Pinouts Represents Pin Number Transmit+ Transmit- Receive+ Network Requirements Represents Receive-...
  • Page 18 Network Requirements...

  • Page 19: Chapter 3 Installation

    DO NOT install the module; contact Cabletron Systems Technical Support. 3.2 INSTALLING FEPIMS The 7H02-06 module is shipped without an FEPIM. To install an FEPIM, follow the procedure below: 1. Remove the module if it is installed in the 7C03 MMAC SmartSwitch chassis (follow the procedure in Section 3.3.2.)
  • Page 20 Installation Ejector Tab Figure 3-1. Module Bottom View 3. Remove the blank front cover over the FEPIM slot. 4. Install the FEPIM as shown in Figure 3-2. Ensure that the rear connector is seated firmly before tightening the three mounting screws.

  • Page 21: Installing/Removing The 7H02-06 Module

    Installation Figure 3-2. Installing an FEPIM 3.3 INSTALLING/REMOVING THE 7H02-06 MODULE The 7H02-06 Module is installed in: the 7C03 MMAC SmartSwitch, the 7C04 Workgroup SmartSwitch or the 7C04-R Workgroup SmartSwitch by using the following steps and referring to the appropriate figure.
  • Page 22 (PCB) is between the card guides, slides in straight, and engages the backplane connectors properly. 3. Use a slotted screwdriver to tighten the module’s front panel screws. MAC ADR Figure 3-3. Installing the 7H02-06 Module in the TPRMIM-20 TPRMIM-20 7C03 MMAC SmartSwitch...

  • Page 23: Removing The 7H02-06 Module From A 7C03 Mmac Smartswitch

    4. Grasp both ejector tabs and carefully slide the module out of the chassis. Screws Figure 3-4. Removing the 7H02-06 Module from a 7C03 MMAC SmartSwitch Installation Ejector Tabs...

  • Page 24: Installing The 7H02-06 Module In A 7C04 Or 7C04-R Chassis

    To install the 7H02-06 Module in a 7C04 or 7C04-R Chassis, follow the listed steps and refer to Figure 3-5 and Figure 3-6, respectively. Notes: The 7H02-06 Module cannot be installed in the top slot of the 7C04 Chassis. The top slot is reserved for the 7X00 SmartSwitch Module.
  • Page 25 Figure 3-5. Installing the 7H02-06 Module in the 7C04 Workgroup Figure 3-6. Installing the 7H02-06 Module in the 7C04-R Workgroup SmartSwitch SmartSwitch Installation POWER IN POWER OUT OVERLOAD FANS X X X -X X X -X X X X -X X X -X...

  • Page 26: Removing The 7H02-06 Module From A 7C04 Or 7C04-R Chassis

    Installation 3.3.4 Removing the 7H02-06 Module from a 7C04 or 7C04-R Chassis To remove the 7H02-06 Module from a 7C04 or 7C04-R Chassis, follow the listed steps and refer to Figure 3-7 and Figure 3-8 respectively. Note: Before removing the 7H02-06 Module, attach the wrist strap included with the module (instructions are printed on the packet).
  • Page 27 Screws Ejector Tabs Figure 3-8. Removing the 7H02-06 Module from the 7C04-R Workgroup SmartSwitch. Installation XXX -X XX-X XX XXX -X XX-X XX...
  • Page 28 Installation 3-10...

  • Page 29: Chapter 4 Troubleshooting

    With LANVIEW LEDs the status of each transmit and receive port on the 7H02-06 Module can be determined, at a glance. This section discusses the function and purpose of the LEDs on the 7H02-06 Module.
  • Page 30 Troubleshooting Table 4-1 indicates the state of the receive port. LED Color Green Green (Flashing) Yellow (Flashing) Table 4-2 indicates the state of the transmit port. LED Color Green (Flashing) Yellow (Blinking) Red (Flashing) Table 4-1. Port Receive LEDs Link, no activity, port enabled Link, port disabled Link, activity, port enabled (flashing to steady-on indicates receive rate).

  • Page 31: Chapter 5 Technical Specifications

    TECHNICAL SPECIFICATIONS This chapter includes the technical specifications for Cabletron Systems 7H02-06 module. Cabletron Systems reserves the right to change these specifications at any time without notice. 5.1 SYSTEM RESOURCES Internal Processor: Intel i960 running at 33 MHz Read Only Memory: 256K bytes...

  • Page 32: Immunity

    Technical Specifications • VCCI Class I 5.5 IMMUNITY The 7H02-06 Module meets the requirements of EN50082-1 including: • IEC 801-2 ESD • IEC 803-1 radiated immunity • IEC 801-4 EFT/B 5.6 NETWORK INTERFACES 5 RJ45 connectors and 1 FEPIM. 5.7 SERVICE...

  • Page 33: Environmental

    Technical Specifications 5.8.3 Environmental Operating Temperature +5 to +40 C (+41 to +104 F) Storage Temperature -30 to +80 C (-22 to +160 F) Relative Humidity 5 to 95% (non-condensing)
  • Page 34 Technical Specifications...

  • Page 35: Fe-100Tx

    Pair (UTP) cabling. The slide switch on the FE-100TX determines the crossover status of the cable pairs. If the switch is on the X side, the pairs are internally crossed over. If the switch is on the = side, the pairs are not internally crossed over.
  • Page 36 The transmitter power levels listed in Table A-1 are peak power levels after optical overshoot. A peak power meter must be used to correctly compare the values given below to those measured on any particular port. If power levels are being measured with an average power meter, add 3 dBm to the measurement to compare the measured values to the values listed below.
