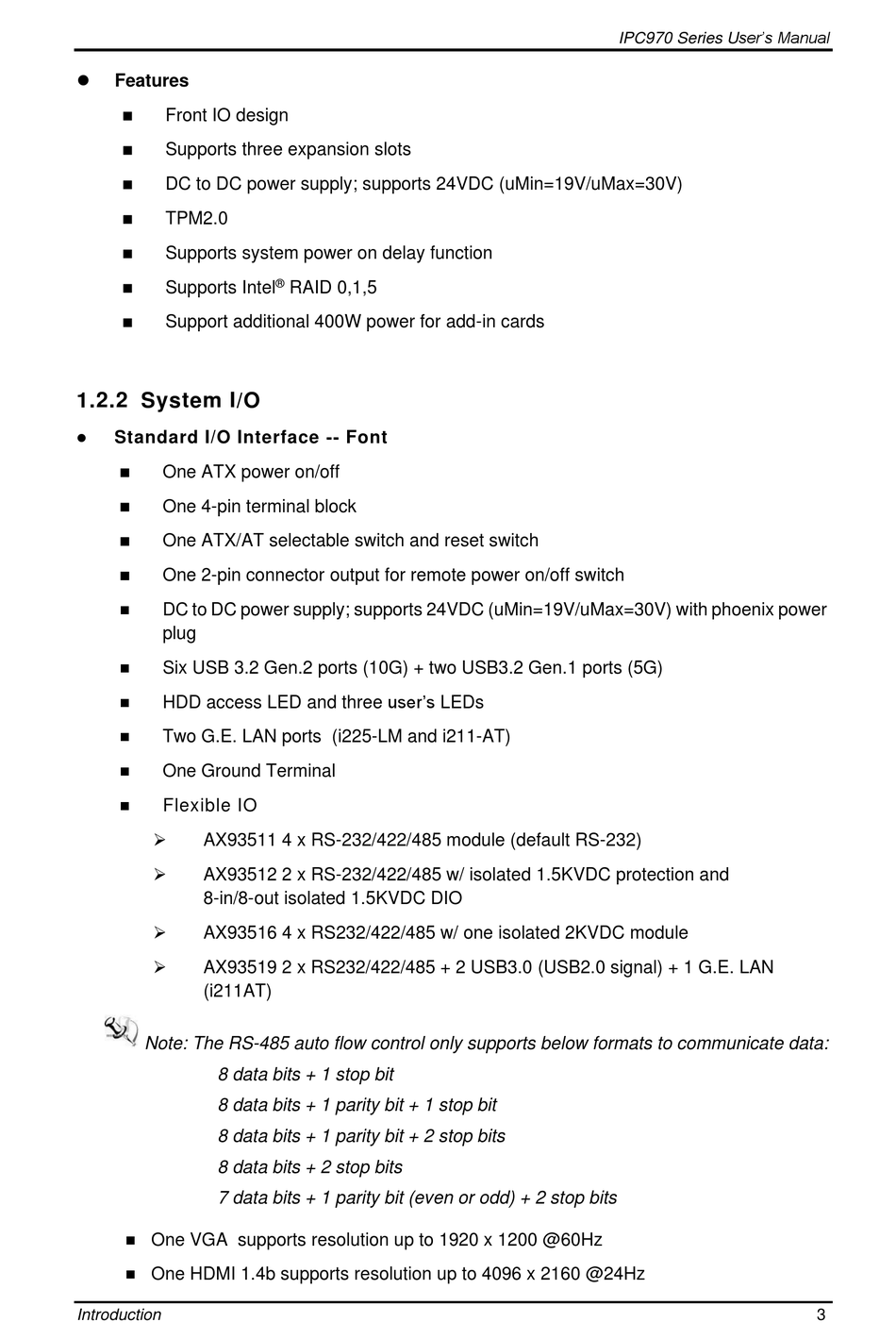

Features
◼ Front IO design
◼ Supports three expansion slots
◼ DC to DC power supply; supports 24VDC (uMin=19V/uMax=30V)
◼ TPM2.0
◼
Supports system power on delay function
◼ Supports Intel
◼
Support additional 400W power for add-in cards

1.2.2 System I/O

⚫ Standard I/O Interface -- Font
◼ One ATX power on/off
◼ One 4-pin terminal block
◼ One ATX/AT selectable switch and reset switch
◼ One 2-pin connector output for remote power on/off switch
◼ DC to DC power supply; supports 24VDC (uMin=19V/uMax=30V) with phoenix power
plug
◼ Six USB 3.2 Gen.2 ports (10G) + two USB3.2 Gen.1 ports (5G)
HDD access LED and three user's LEDs
◼
◼ Two G.E. LAN ports (i225-LM and i211-AT)
◼
One Ground Terminal
◼ Flexible IO
➢
AX93511 4 x RS-232/422/485 module (default RS-232)
➢
AX93512 2 x RS-232/422/485 w/ isolated 1.5KVDC protection and
8-in/8-out isolated 1.5KVDC DIO
➢
AX93516 4 x RS232/422/485 w/ one isolated 2KVDC module
➢
AX93519 2 x RS232/422/485 + 2 USB3.0 (USB2.0 signal) + 1 G.E. LAN
(i211AT)
Note: The RS-485 auto flow control only supports below formats to communicate data:
8 data bits + 1 stop bit
8 data bits + 1 parity bit + 1 stop bit
8 data bits + 1 parity bit + 2 stop bits
8 data bits + 2 stop bits
7 data bits + 1 parity bit (even or odd) + 2 stop bits
◼ One VGA supports resolution up to 1920 x 1200 @60Hz
◼ One HDMI 1.4b supports resolution up to 4096 x 2160 @24Hz
Introduction
®
RAID 0,1,5
IPC970 Series User's Manual
3
