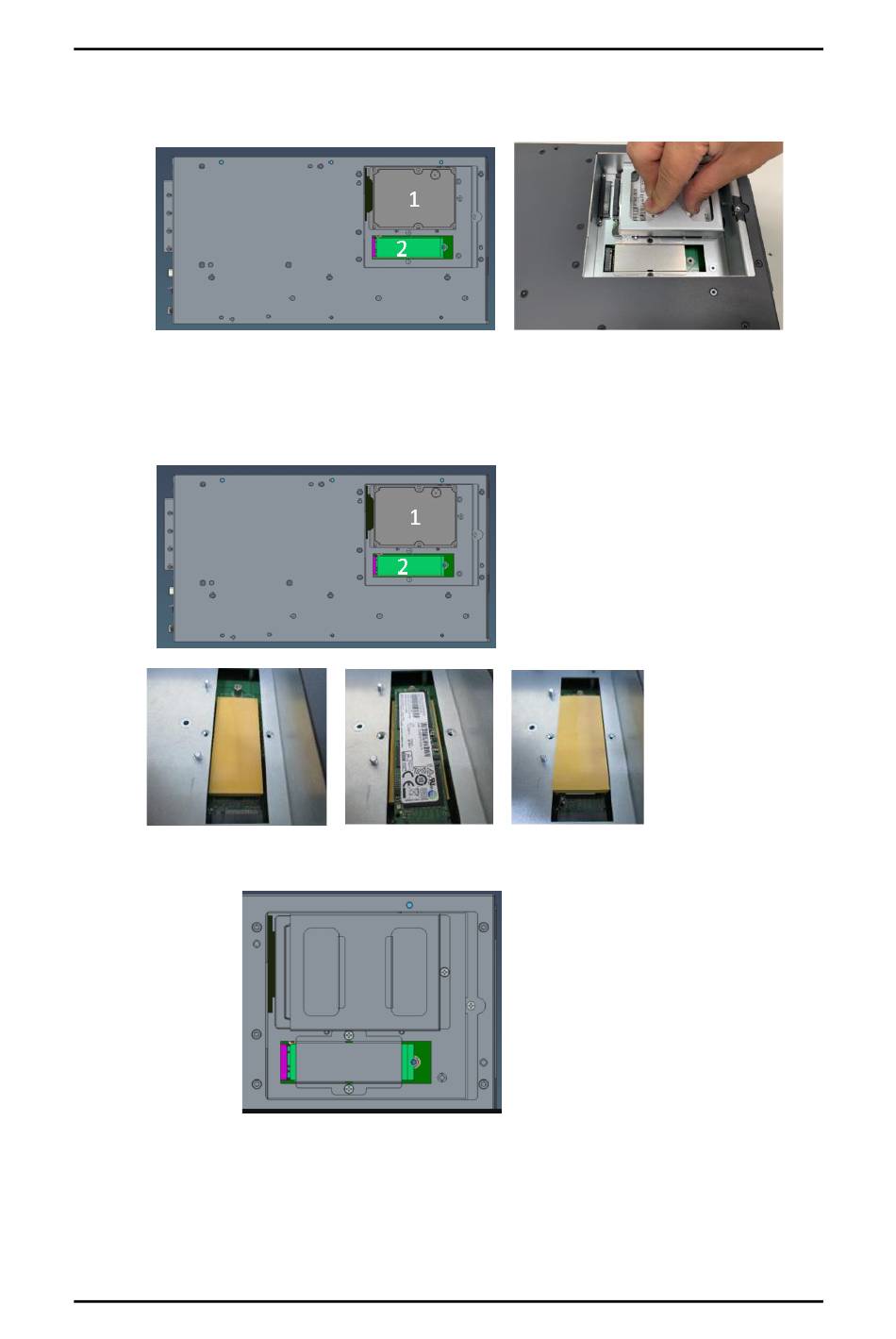

Step 3 Align the connector of the SSD/HDD with the SATA slot (#1), then insert the SSD/HDD
into the bay and screw the bracket. Installation is complete.
Step 4 Take the NVMe bracket, thermal pads and its screws from the accessory box and
stick a thermal pad on socket, then insert the SSD into the socket (#2) and
screw it. Stick another pad on SSD.
Step 5 Screw the bracket with 2 screws. Installation is complete.
