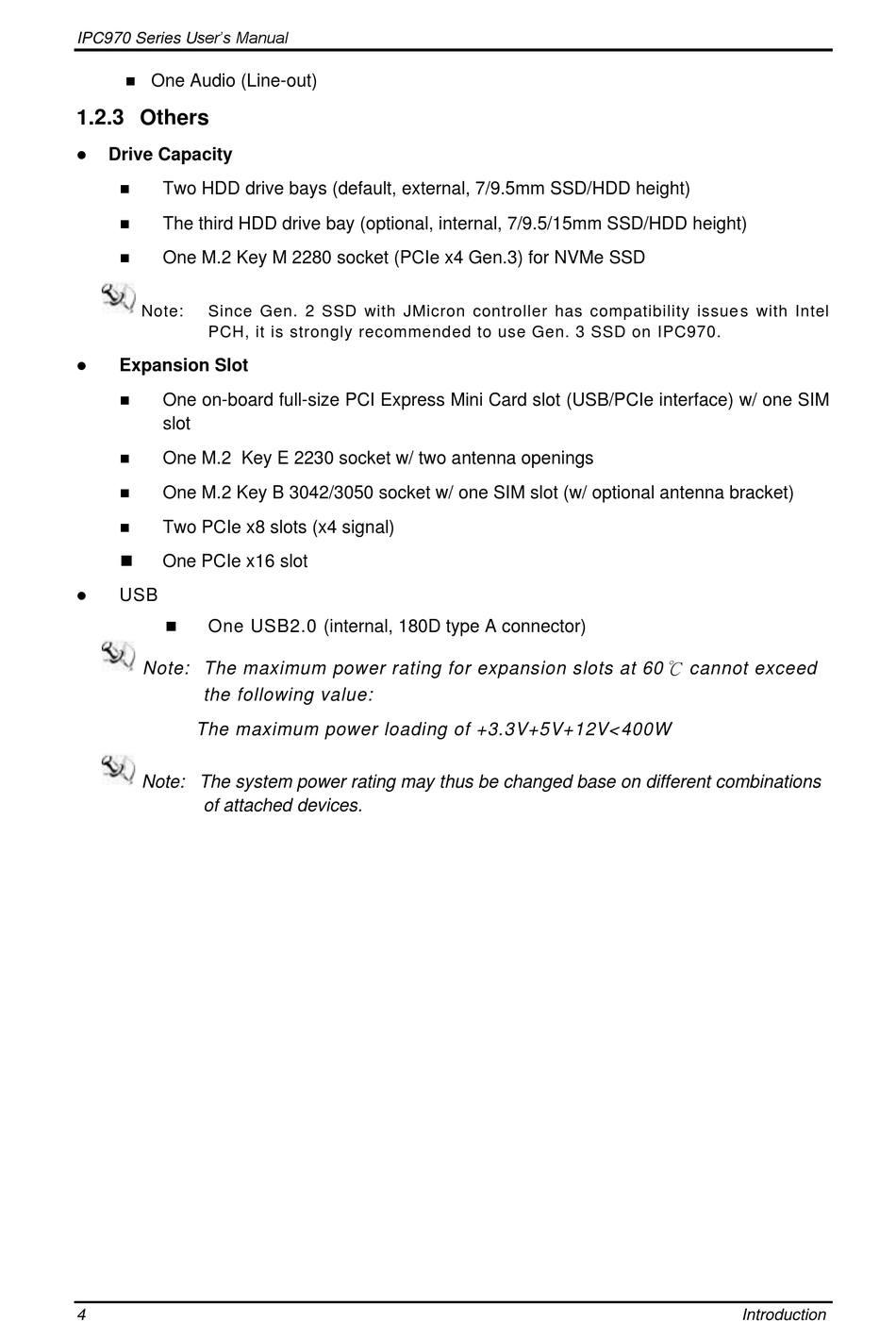

IPC970 Series User's Manual
◼ One Audio (Line-out)
1.2.3 Others
⚫ Drive Capacity
◼ Two HDD drive bays (default, external, 7/9.5mm SSD/HDD height)
◼ The third HDD drive bay (optional, internal, 7/9.5/15mm SSD/HDD height)
◼
One M.2 Key M 2280 socket (PCIe x4 Gen.3) for NVMe SSD
Note: Since Gen. 2 SSD with JMicron controller has compatibility issue s with Intel
PCH, it is strongly recommended to use Gen. 3 SSD on IPC970.
⚫ Expansion Slot
◼ One on-board full-size PCI Express Mini Card slot (USB/PCIe interface) w/ one SIM
slot
◼ One M.2 Key E 2230 socket w/ two antenna openings
◼ One M.2 Key B 3042/3050 socket w/ one SIM slot (w/ optional antenna bracket)
◼ Two PCIe x8 slots (x4 signal)
◼
One PCIe x16 slot
⚫ USB
◼
One USB2.0 (internal, 180D type A connector)
Note: The maximum power rating for expansion slots at 60
the following value:
The maximum power loading of +3.3V+5V+12V< 400W
Note: The system power rating may thus be changed base on different combinations
of attached devices.
4
℃
cannot exceed
Introduction
