Installing the PCIe Card and External Fan Module

The IPC970 provides three PCIe slots for expansion. The procedure of installing the optional
fan module and the PCIe expansion card into the system is described below.
Step 1 Turn off the system.
Step 2 Disconnect the power connector.

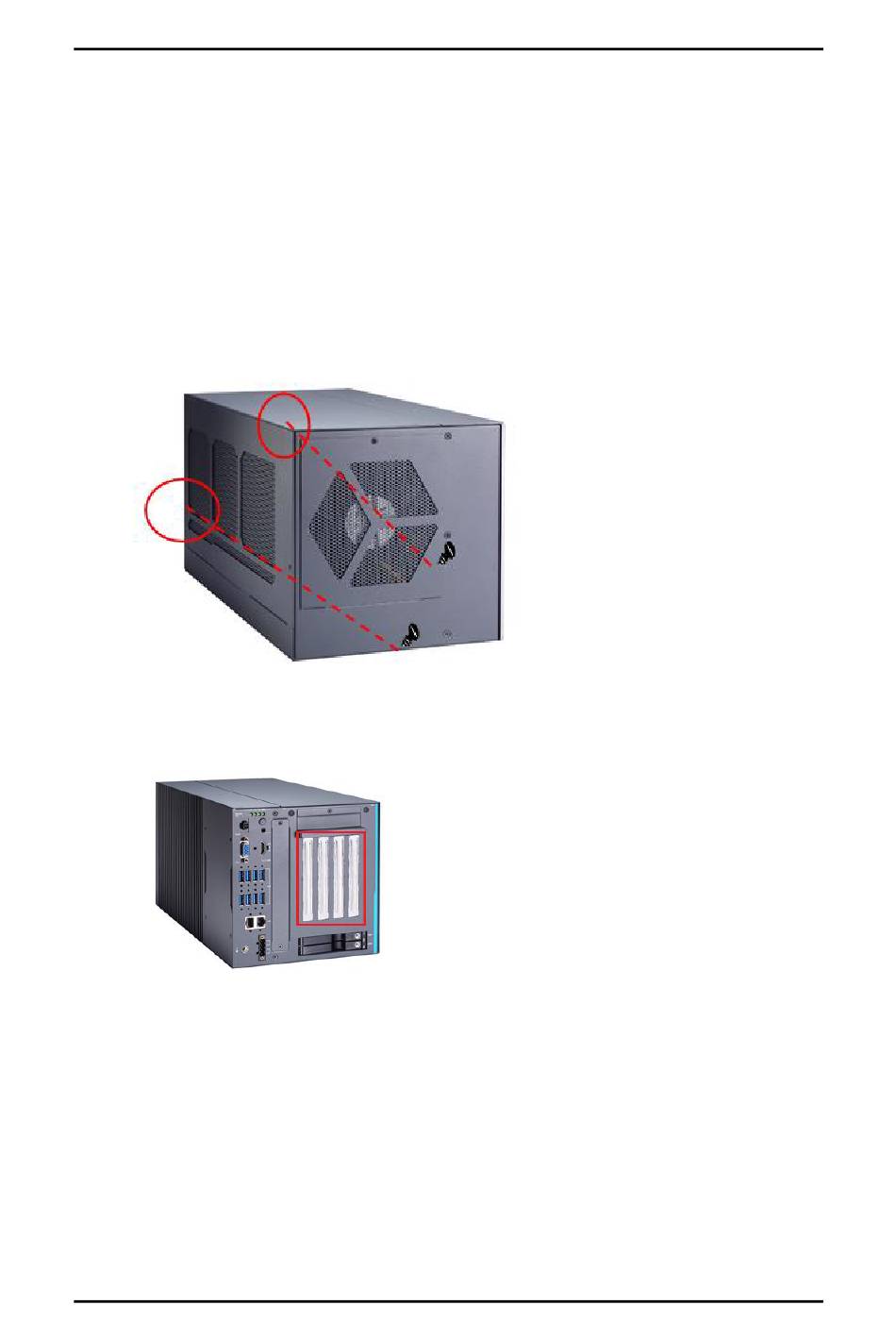

Step 3 Loosen 7 screws to remove the side cover from the chassis.

2.6.1 Installing PCIe add-on card

Step 1 Locate the PCIe slots where you want to add the card and remove the slot bracket.
Step 2 Align the PCIe card with the slot, press the card into the slot until it is firmly seated
and screw it.
