IPC970 Series User's Manual

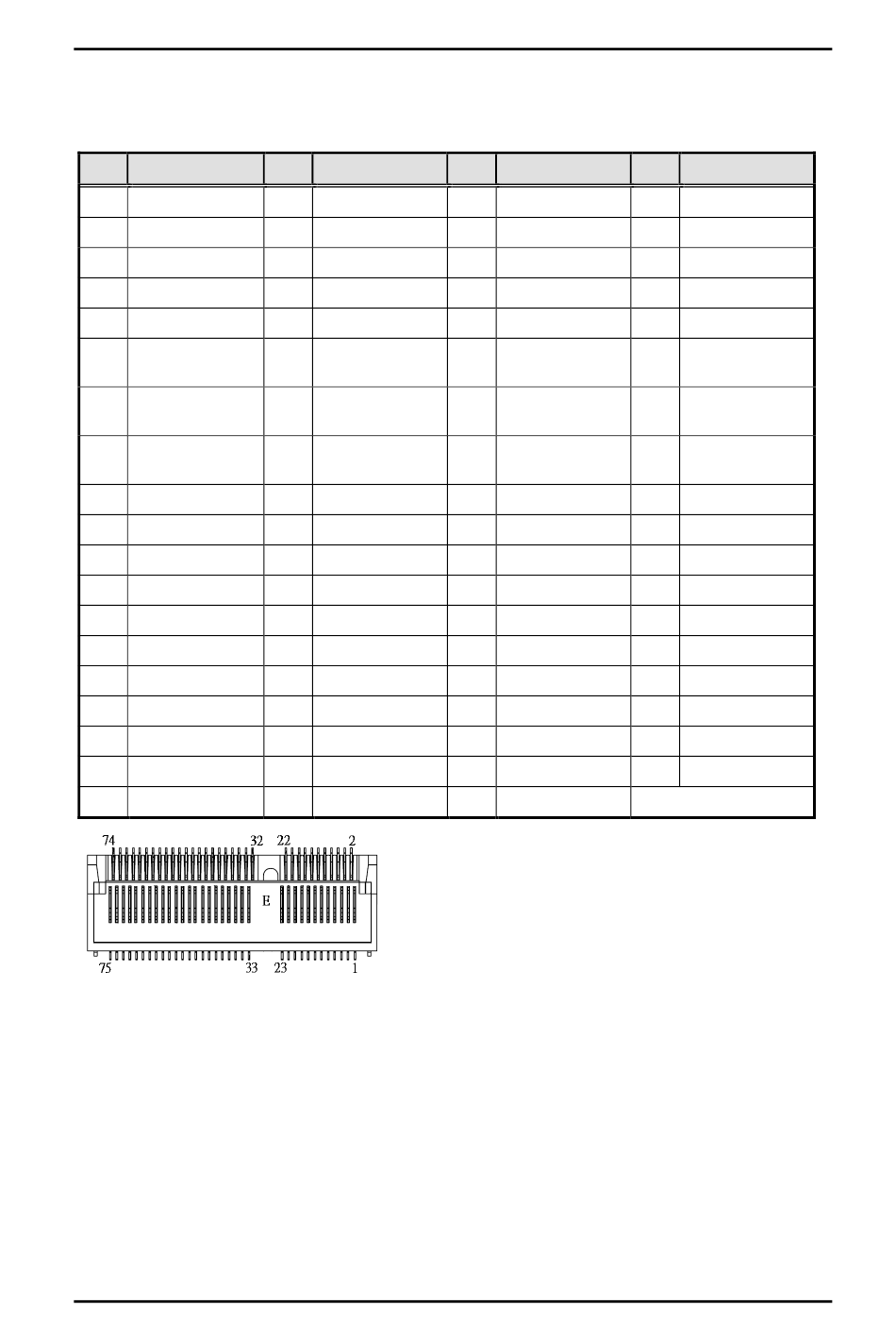

1.7.9 M.2 2230 Key E Wi-Fi & Bluetooth (CN12)
CN4 is used for interfacing PCI-Express and USB signals, supporting Socket 1, Key E, and type
2230.
Pin Signal
1 GND
5 USB_D-
9 NC
13 NC
17 NC
21 NC
CONNECTOR
25
KEY E
CONNECTOR
29
KEY E
33 GND
37 PETn0
41 PERp0
45 GND
49 REFCLKn0
53 CLKREQ0#
57 GND
61 NC
65 NC
69 GND
73 NC
22
Pin Signal
2 +3.3V
6 NC
10 NC
14 NC
18 GND
22 NC
CONNECTOR
26
KEY E
CONNECTOR
30
KEY E
34 NC
38 NC
42 NC
46 NC
50 SUSCLK
54 W_DISABLE2# 55
58 I2C_DATA
62 ALERT#
66 NC
70 NC
74 +3.3V
Pin Signal
3 USB_D+
7 GND
11 NC
15 NC
19 NC
23 NC
CONNECTOR
27
KEY E
CONNECTOR
31
KEY E
35 PETp0
39 GND
43 PERn0
47 REFCLKp0
51 GND
PEWAKE0#
59 NC
63 GND
67 NC
71 NC
75 GND
Pin Signal
4 +3.3V
8 NC
12 NC
16 NC
20 NC
CONNECTOR
24
KEY E
CONNECTOR
28
KEY E
32 NC
36 NC
40 NC
44 NC
48 NC
52 PERST0#
56 W_DISABLE1#
60 I2C_CLK
64 NC
68 NC
72 +3.3V
