IPC970 Series User's Manual

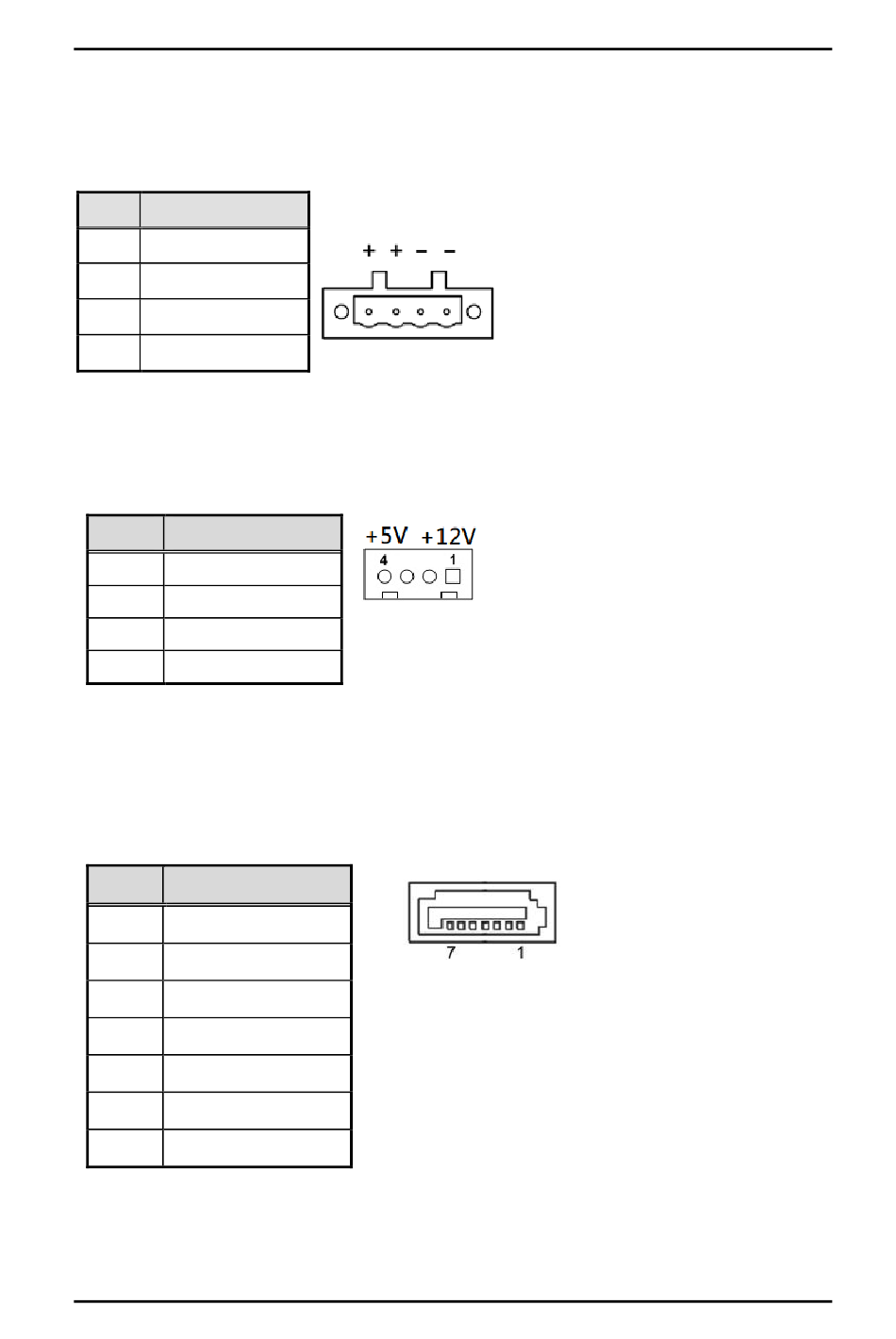

1.7.11 DC-in Phoenix Power Connector (CN14)

The system supports a 24VDC (uMin=19V/uMax=30V) Phoenix DC-in connector for system
power input.
Pins Signals
1 DC+
2 DC+
3 DC-
4 DC-
1.7.12 SATA Power Connector (SCN2、SCN3、SCN4)
Use SCN1、SCN2 for interfacing to SATA 2.5" HDD power supply.
Pins Signals
1 +12V level
2 GND
3 GND
4 +5V level

1.7.13 SATA Connector (SATA1~SATA2)

These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are used as
high-speed SATA interfaces. They are computer bus interfaces for connecting to devices such
as hard disk drives. This board has two SATA 3.0 ports with 6Gb/s performance.
Pins Signals
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
