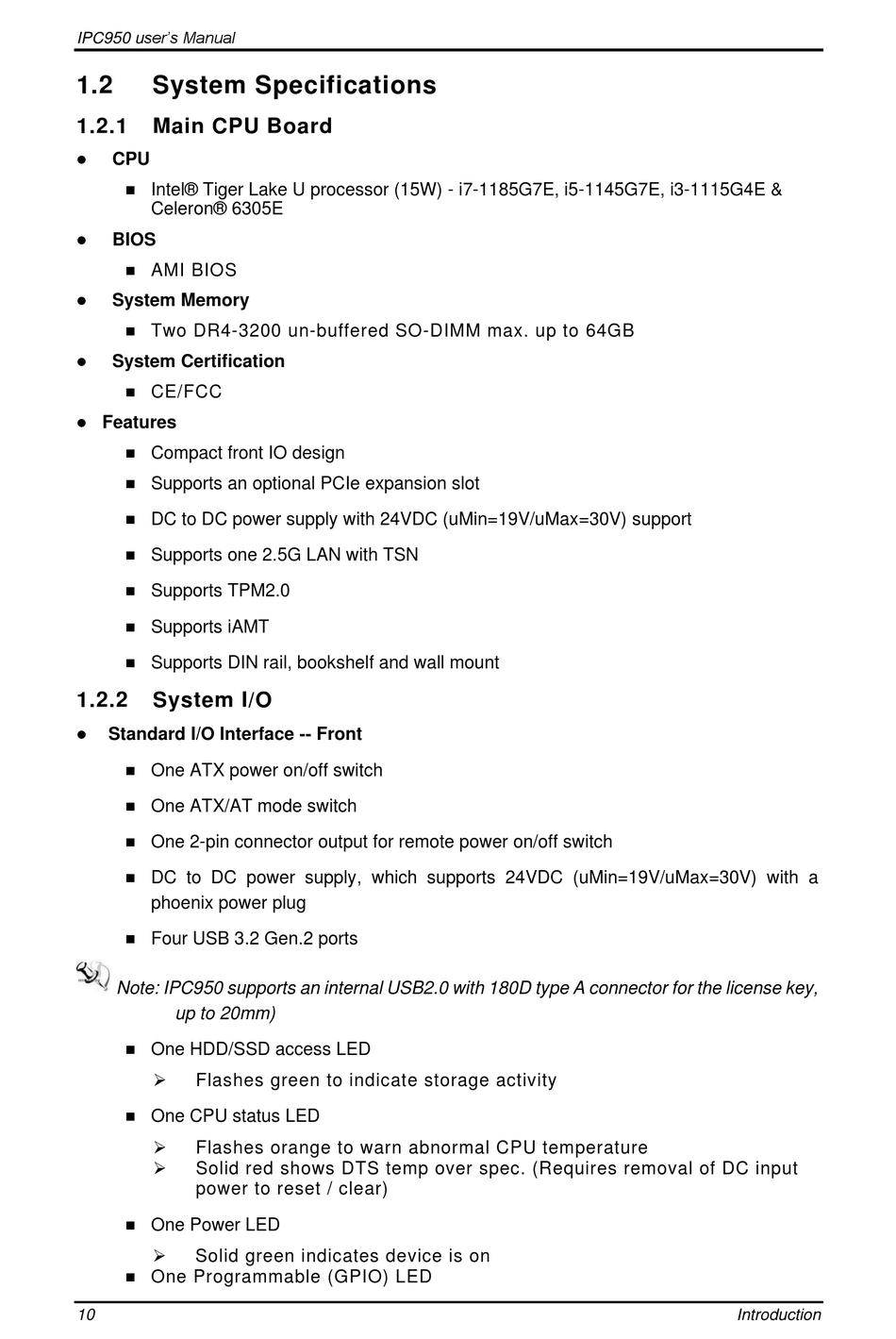

System Specifications

1.2.1

Main CPU Board

⚫ CPU
◼ Intel® Tiger Lake U processor (15W) - i7-1185G7E, i5-1145G7E, i3-1115G4E &
Celeron® 6305E
⚫ BIOS
◼
AMI BIOS
⚫ System Memory
◼ Two DR4-3200 un-buffered SO-DIMM max. up to 64GB
⚫ System Certification
◼
CE/FCC
⚫ Features
◼ Compact front IO design
◼
Supports an optional PCIe expansion slot
◼
DC to DC power supply with 24VDC (uMin=19V/uMax=30V) support
◼ Supports one 2.5G LAN with TSN
◼
Supports TPM2.0
◼
Supports iAMT
◼ Supports DIN rail, bookshelf and wall mount
1.2.2

System I/O

⚫
Standard I/O Interface -- Front
◼ One ATX power on/off switch
◼
One ATX/AT mode switch
◼
One 2-pin connector output for remote power on/off switch
◼ DC to DC power supply, which supports 24VDC (uMin=19V/uMax=30V) with a
phoenix power plug
◼ Four USB 3.2 Gen.2 ports
Note: IPC950 supports an internal USB2.0 with 180D type A connector for the license key,
up to 20mm)
◼ One HDD/SSD access LED
➢
Flashes green to indicate storage activity
◼
One CPU status LED
➢
Flashes orange to warn abnormal CPU temperature
➢
Solid red shows DTS temp over spec. (Requires removal of DC input
power to reset / clear)
◼ One Power LED
➢
Solid green indicates device is on
◼
One Programmable (GPIO) LED
