Function Display - multivac C200 Instruction Manual

Fig. 11: Evacuation status display (047)
Fig. 12: Gas flushing status display (049)
Fig. 13: Sealing status display (050)
2.3.3

Function display

Depending on the access rights, the function display will offer the
following options:
• View values.
• Enter values.
• Switch functions on and off.
Example of a function display with values:

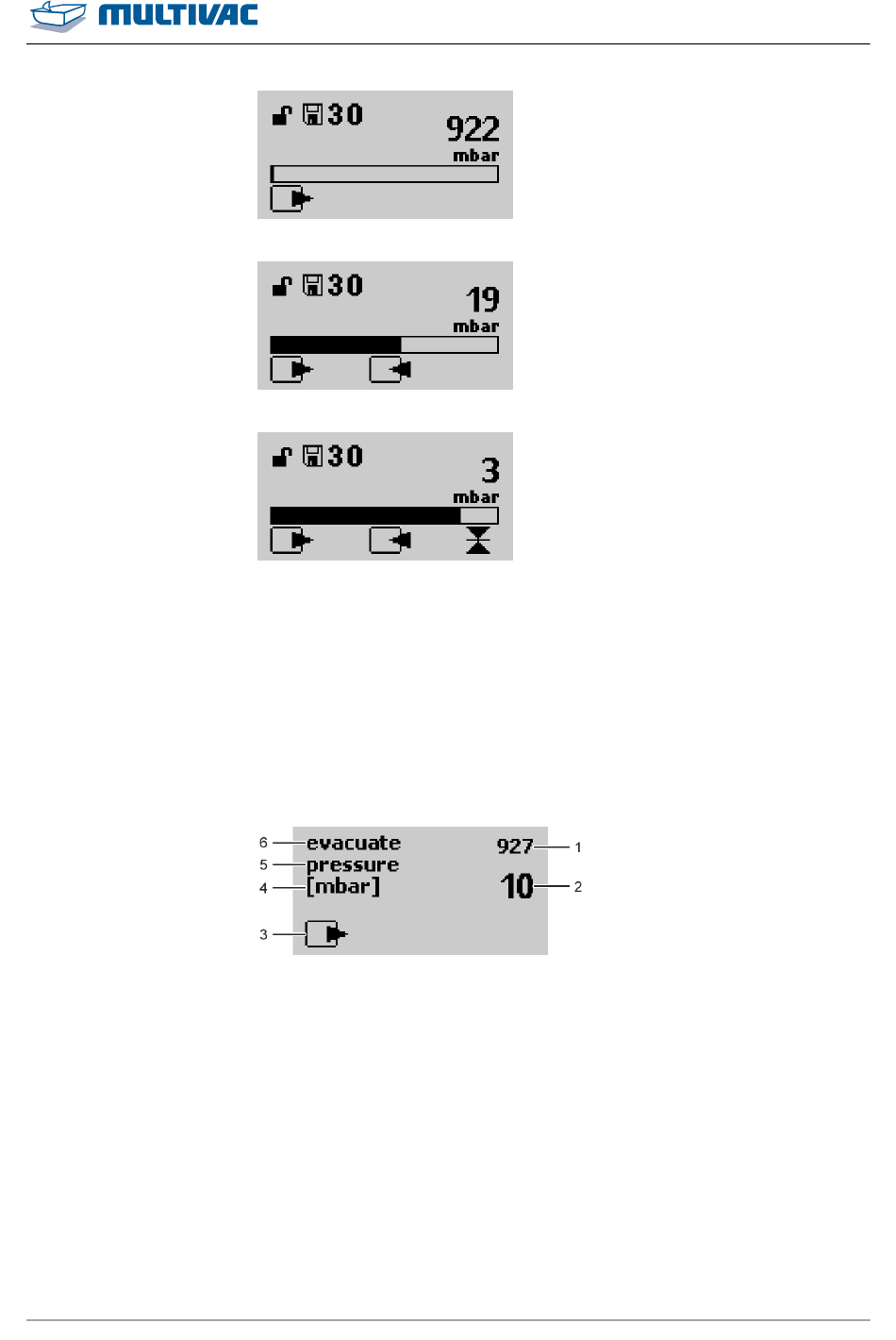

Fig. 14: Function display with value (052)
1 Actual value
2 Setting
3 Symbol of function (e.g. evacuation)
4 Measurement
5
Selected parameter
6 Selected function
Example of a function display for switching a function on and off:
03.06.2014
Description
Display
25
