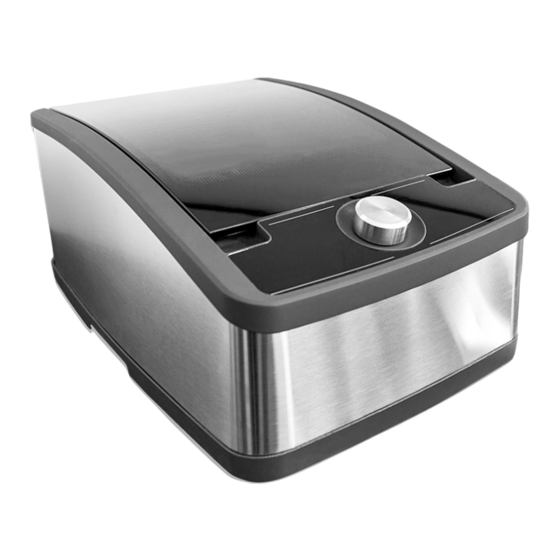

INSTRUCTION MANUAL
C 010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Home C 010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for multivac Home C 010

Summary of Contents for multivac Home C 010

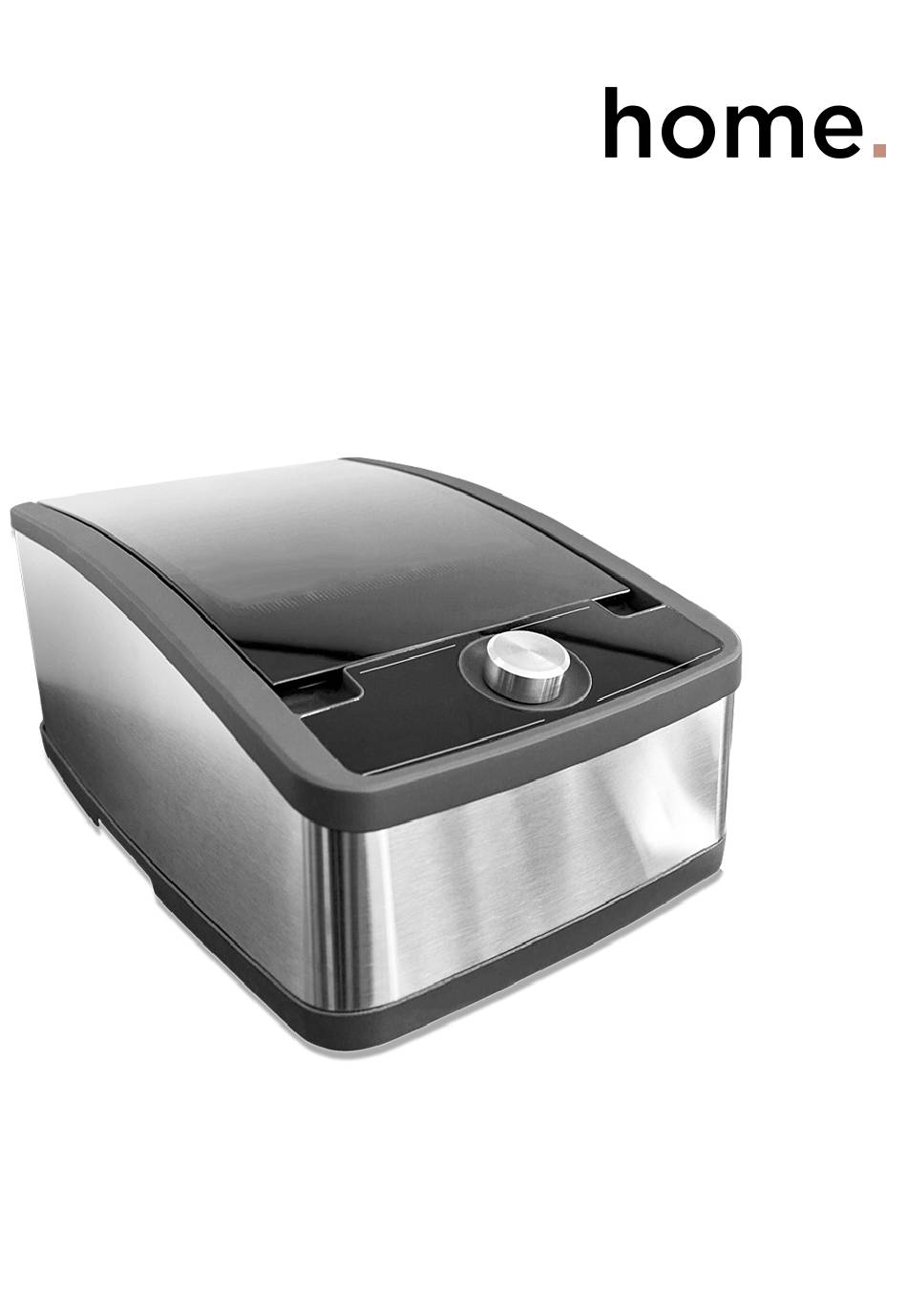

  • Page 1 INSTRUCTION MANUAL C 010...

  • Page 2: Table Of Contents

    Content Scope of delivery........................ 3 Safety .......................... 4 Intended use ...................... 4 Safety instructions .................... 4 Description ........................ 7 Description of the machine ...................  7 Control panel ...................... 9 Unpacking and setting up the machine................  10 Switching the machine on or off ...................  12 Tips and tricks ........................

  • Page 3: Scope Of Delivery

    Scope of delivery Scope of delivery Machine Power cord Quick Start Guide Instruction manual Film pouch starter set Sloping insert with support angle Vacuum hose Vacuum stopper (2 items) This instruction manual is an important part of the machine. Keep the instruction manual near the machine for future reference and provide it to others if you sell or loan the machine.

  • Page 4: Safety

    Safety Intended use Safety Intended use • The machine is intended for domestic use. • The machine can be used to pack and marinate products in film pouches. – Only suitable, pre-made film pouches may be used for the packing and marinating of products. See Section 5.4 "F " on page 13 POUCH •...
  • Page 5 Safety Safety instructions Protection from electric shock • Do not touch damaged power cords or damaged mains plugs. Replace the power cord immediately. • The mains voltage of the machine must match the mains voltage of the mains electricity. Compare the mains voltage on the type plate of the machine with the mains voltage of the mains electricity before inserting the mains plug of the machine into the socket.
  • Page 6 Safety Safety instructions • The sealing bar reaches a temperature of approx. 140 °C (284 °F) during operation. The seal seam of the sealed film pouch is also hot just after sealing. Do not touch the sealing bar or the seal seam. Eye injuries •...

  • Page 7: Description

    Description Description of the machine Description Description of the machine Chamber lid Vacuum hose for the evacuation of vacuum boxes and bottles Suction opening Sloping insert with support angle Sealing bar Rotary knob Control panel Handle 19.09.2018 7 / 36...
  • Page 8 Description Description of the machine Handle Mains switch Fuse with cover Cord storage compartment for the power cord Connection for the power cord Type plate 8 / 36 19.09.2018...

  • Page 9: Control Panel

    Description Control panel Control panel Function Description Stand-by The control light illuminates after a prolonged period of machine stoppage, and it signals that the machine is operational. Low vacuum This function can be used to evacuate soft and pressure-sensitive products, e.g. cooked noodles, pastries and fruit. Maximum vacuum This function can be used to evacuate products that are less pressure-sensitive, such as meat, sausages and root vegetables.

  • Page 10: Unpacking And Setting Up The Machine

    Unpacking and setting up the machine Unpacking and setting up the machine Lift the machine out of the box and place it on a clean and even work surface. Ensure that there is enough free space above the machine to be able to open the chamber lid.
  • Page 11 Unpacking and setting up the machine Insert the sloping insert and the support angle for supporting the film pouch in the chamber. 19.09.2018 11 / 36...

  • Page 12: Switching The Machine On Or Off

    Switching the machine on or off Switching the machine on or off Switch the machine on or off using the mains switch. ü When the machine is switched on two clicking sounds are emitted one after the other. 12 / 36 19.09.2018...

  • Page 13: Tips And Tricks

    Tips and tricks Hygiene Tips and tricks Hygiene • A clean and hygienic work environment is the basis for high-quality packed food. For this reason, it is very important to regularly clean the machine, the work environment and your hands before and after each use and to keep them hygienically clean.
  • Page 14 • The film pouch must be frost-resistant. For optimum packaging results, the use of MULTIVAC film pouches is recommended. 14 / 36...

  • Page 15: Operation

    Operation Selecting function and setting values Operation Selecting function and setting values A function can be selected by turning the rotary knob. The selected function is immediately active and is performed by the machine as soon as the chamber lid is closed. Pressing the rotary knob switches to the respective sub-menu.
  • Page 16 Operation Packing products Open the chamber lid. Place the film pouch in the chamber. Place the opening of the film pouch centrally on the sealing bar and smooth it flat. ü The opening of the film pouch should be inside the chamber. ü...
  • Page 17 Operation Packing products Select the function required. Close the chamber lid, firmly press it closed and hold pressed for 2 to 3 seconds. ü The packaging procedure starts and runs automatically. ü The packaging procedure takes up to 90 seconds. Open the chamber lid.

  • Page 18: Evacuating Vacuum Boxes Or Bottles

    Operation Evacuating vacuum boxes or bottles Remove the pack from the chamber and detach the excess length of the film pouch. If no further products are to be packaged, switch the machine off. Evacuating vacuum boxes or bottles Open the chamber lid. 18 / 36 19.09.2018...
  • Page 19 Operation Evacuating vacuum boxes or bottles Plug the vacuum hose into the suction opening. If a bottle is to be evacuated, clean the vacuum stopper and in- sert it into the bottle. Select the External vacuum function. Insert the other end of the vacuum hose onto the vacuum stop- per or the valve of the vacuum box and hold firmly during the evacuation process.

  • Page 20: Cancelling Evacuation

    Operation Cancelling evacuation Press the <rotary knob>. ü The evacuation starts. The pressure in the bottle or the va- cuum box is shown on the display. ü The machine stops when the optimum vacuum has been achieved. If no further bottles or vacuum boxes are to be evacuated, switch the machine off.

  • Page 21: Changing Favourites 1, 2 Or 3

    Operation Changing favourites 1, 2 or 3 ü The packing is immediately cancelled. ü The film pouch is not sealed. Changing favourites 1, 2 or 3 Select the desired favourite 1, 2 or 3 under Favourites. Press and hold the <rotary knob>, until the vacuum value flashes on the display.

  • Page 22: Cleaning

    Cleaning Cleaning the machine Cleaning A clean and hygienic work environment is the basis for high-quality packed food. For this reason, it is very important to regularly clean the machine, the work environment and your hands before and after each use and to keep them hygienically clean.

  • Page 23: Cleaning Vacuum Stopper For Bottles

    Cleaning Cleaning vacuum stopper for bottles Insert the sealing bar into the machine. ü The marking points towards the front. Close the chamber lid. Plug the mains plug into the socket. ü The machine is ready for operation. Cleaning vacuum stopper for bottles Remove the valve of the vacuum stopper.

  • Page 24: What To Do If

    What to do if ... What to do if ... Symptom Cause Solution The machine cannot be The mains plug is unplugged. Plug in the mains plug. switched on. The fuse is defective. Insert a new fuse. See Section 9 "S " on PARE PARTS AND ACCESSORIES...
  • Page 25 What to do if ... Symptom Cause Solution The film pouch should not pro- trude beyond the ends of the sealing bar. The film pouch was not com- Place the film pouch in the centre pletely sealed. of the sealing bar. The film pouch should not pro- trude beyond the ends of the sealing bar.
  • Page 26 What to do if ... Symptom Cause Solution An unsuitable film pouch was Use a suitable film pouch. See used. Section 5.4 "F " on ILM POUCH page 13 The pack swells up dur- The food is fermenting. This food is not suitable for va- ing storage.

  • Page 27: Spare Parts And Accessories

    Spare parts and accessories Spare parts and accessories Use only original MULTIVAC spare parts and original MULTIVAC ac- cessories. The spare parts and the accessories are available from the MULTI- VAC home webshop. Quick Start Guide Film pouch Instruction manual...

  • Page 28: Changing The Sealing Bar

    Spare parts and accessories Changing the sealing bar Changing the sealing bar Pull out the sealing bar. Insert the sealing bar into the machine. ü The marking points towards the front. 28 / 36 19.09.2018...

  • Page 29: Changing Chamber Lid Gasket

    Spare parts and accessories Changing chamber lid gasket Changing chamber lid gasket Remove the chamber lid gasket from the groove. Press the chamber lid gasket into the groove. When doing this, do not stretch the chamber lid gasket. ü The opening of the chamber lid gasket points outwards. Smooth the chamber lid gasket flat.

  • Page 30: Disposal

    Disposal Disposal • Packaging The packaging material is recyclable. Feeding the packaging ma- terial back into the material cycle saves on raw materials. Return the packaging material to the appropriate collection point or the manufacturer. • Old machine Old electrical and electronic machines contain materials that are still valuable.

  • Page 31: Technical Specifications

    Technical specifications Technical specifications Machine technical specifications Mains voltage 220V to240V 50 Hz / 60 Hz Rated power 0.1kW Machine dimensions (width x 310 mm (12 1/4 in) x 225 mm (9 height x length) in) x 480 mm (19 in) Usable chamber size (width x 200 mm (7 3/4 in) x 230 mm (9 height x length) in) x 100 mm (3 15/16 in)

  • Page 32: Eu Declaration Of Conformity

    EU Declaration of Conformity EU Declaration of Conformity EU DECLARATION OF CONFORMITY Manufacturer MULTIVAC Sepp Haggenmüller SE & Co. KG Bahnhofstraße 4 87787 Wolfertschwenden, Germany Designation Packaging machine Type C010 The manufacturer declares with sole responsibility, that the packaging machine described above fulfils the following relevant harmonisation legislation of the European Union: •...
  • Page 33 EU Declaration of Conformity • EN 60335-2-45:2002 + A1:2008 + A2:2012 Safety of electrical ap- pliances for household use and similar purposes - Part 2-45: Spe- cial requirements for portable electrical heating equipment and similar appliances • EN 62233:2008 Procedure for measuring the electromagnetic fields of household appliances and similar electrical units with re- gard to the safety of persons in electromagnetic fields Wolfertschwenden, 01/07/2016...

  • Page 34: Keyword Index

    EU Declaration of Conformity Keyword index Accessories  27 Rated power  31 Air humidity  31 Relative air humidity  31 Ambient conditions  31 Ambient temperature  31 Sealing bar, changing  28 Sealing length  31 Bottles, evacuating  18 Sloping insert, inserting  11 Boxes, evacuating  18 Spare parts ...
  • Page 35 EU Declaration of Conformity 19.09.2018 35 / 36...
  • Page 36 MULTIVAC Sepp Haggenmüller SE & Co. KG Bahnhofstr. 4 87787 Wolfertschwenden Germany Tel.: +49 8334 601-0 www.multivac.com...
