Description
Display
Process data status
display
Process sequence

status display

24

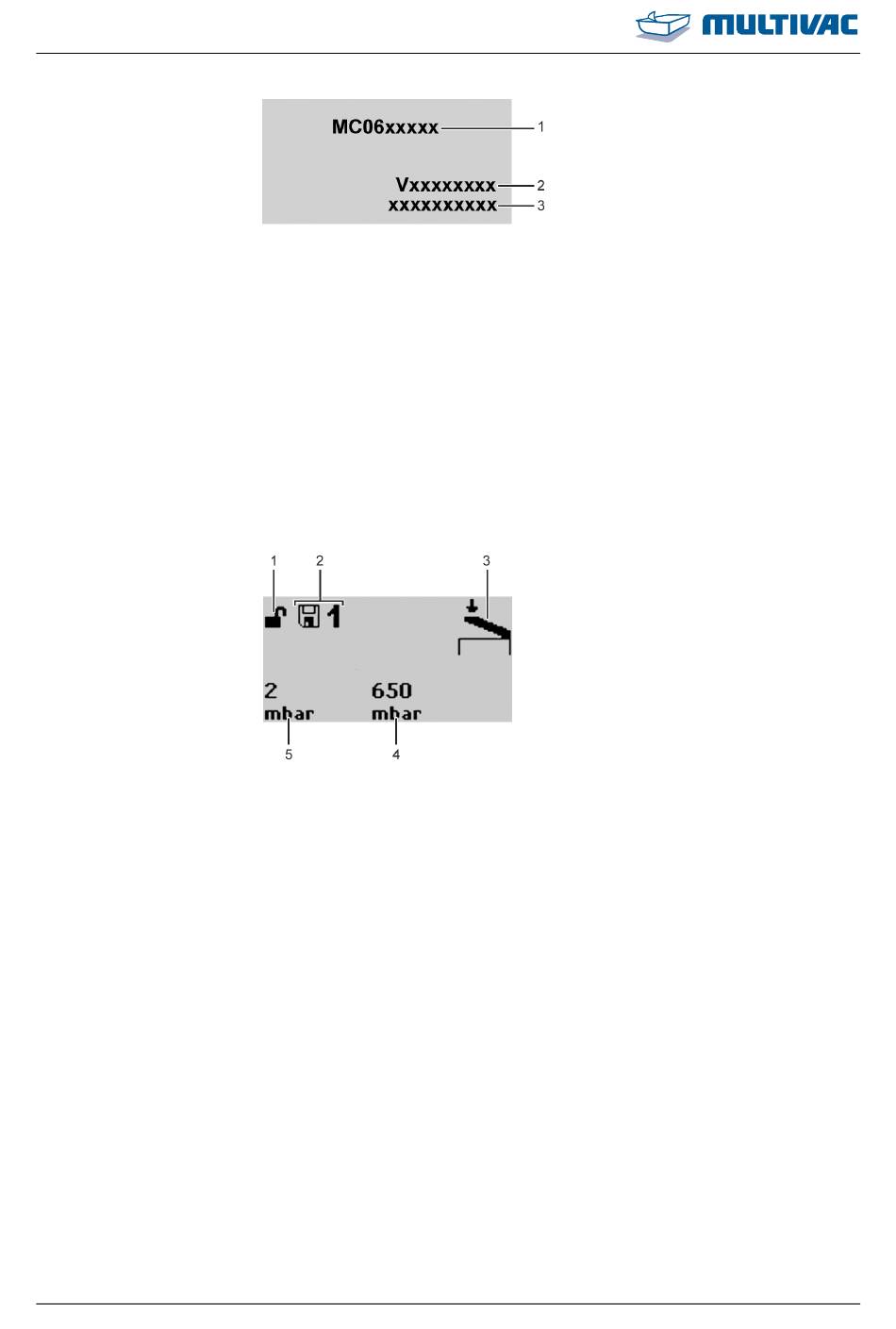

Fig. 9: Startup display
1 Type designation of machine control
2 Software version
3 Configuration code
2.3.2 Status display
The process data status display shows information on the last pack-
aging procedure.
Fig. 10: Process data status display
1 Current access right (lock closed = user; lock open = set-up personnel)
2 Currently loaded recipe
3 Chamber lid symbol, machine is ready.
4 Gas pressure
5 Evacuation pressure
The process sequence status display shows the progress of the cur-
rently running process, e.g. evacuation. During the process the corre-
sponding symbol flashes on the display. If time runs out during a
process, then a clock with the remaining time will flash in place of the
symbol.
