Description

Control terminal

22
2.2 Control terminal

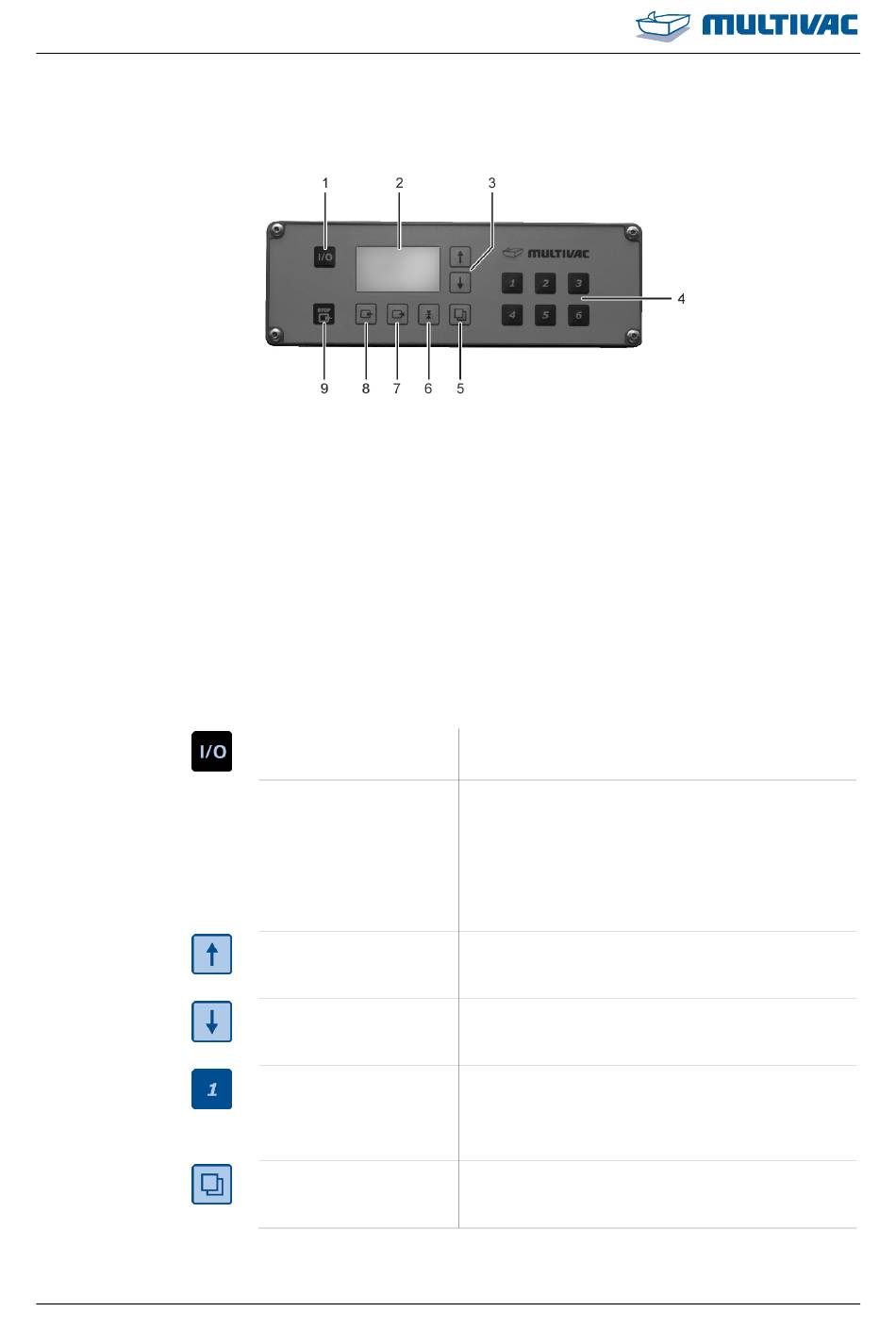

Fig. 8: Control terminal
1 <Machine control On/Off> key
2 Display
3 Keys <Arrow key>
4 Keys <1> to <6>
5
<Function selection> key
6 <Sealing> key
7 <Gas flushing> key
8 <Evacuation> key
9 <Stop> key
<Machine control
On/Off>
Display
<Arrow key>
<Arrow key>
Keys <1> to <6>
<Function selection>
03.06.2014
• Switch machine control on and off.
• Display process data.
• Show menus.
• Show parameters and functions.
• Graphic support.
• Display diagnostic messages.
• Increase values.
• Navigation within menus.
• Decrease values.
• Navigation within menus.
• Load and save recipes.
• Enter password.
• Enter the configuration code.
• Call up additional menus.
• Scroll to previous screen.
