Construction of the machine

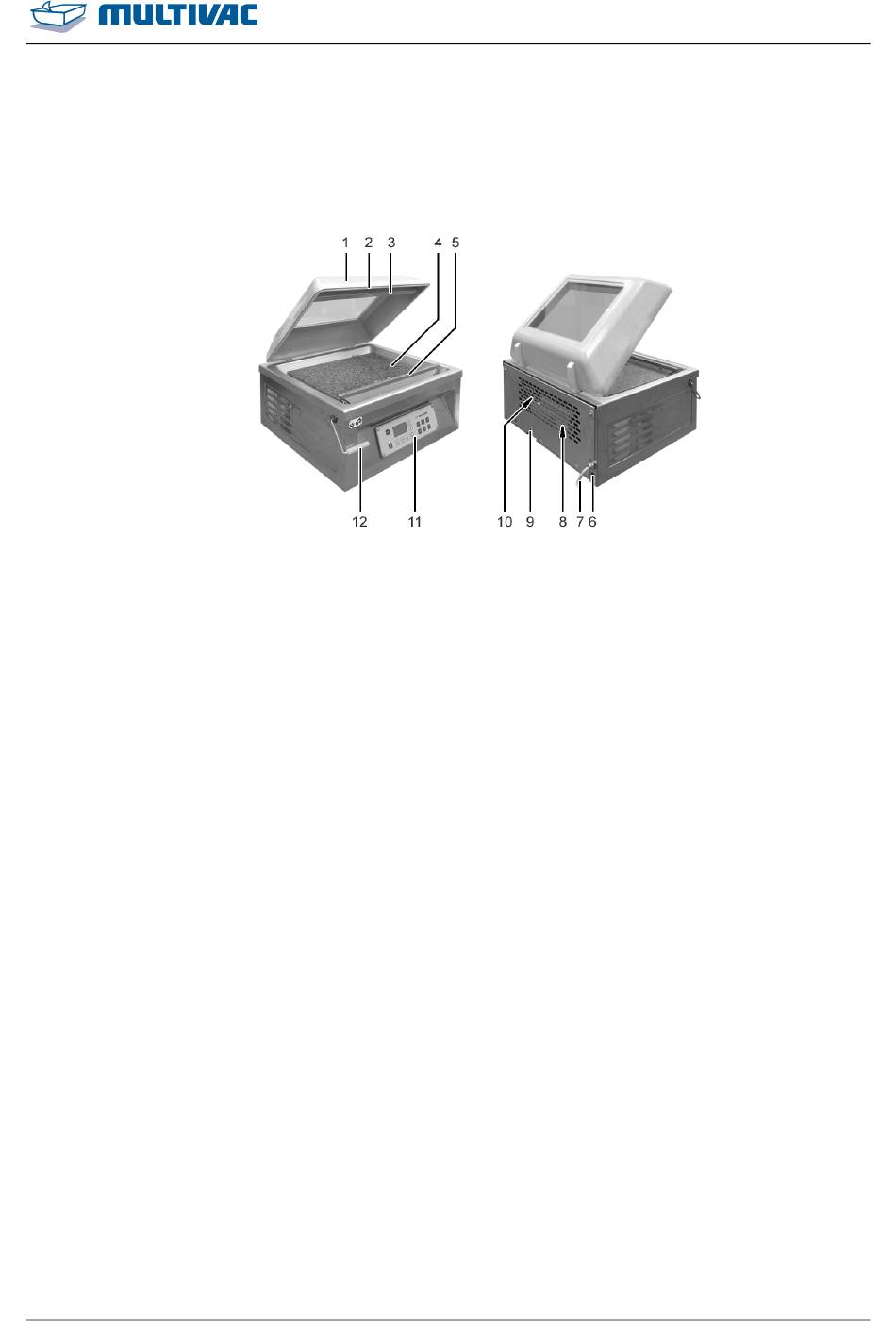

Fig. 7:
Construction of the machine
1
Chamber lid
2
Chamber lid gasket
3
Counter-pressure bar
4
Chamber with spacer plates and sloping insert with support angle
5
Sealing bar with inert gas nozzles (optional)
6
(Optional) Inert gas connection
7
Power supply
8
Vacuum pump
9
Oil sight glass
10 Screw plug of fill opening
11 Control terminal
12 Locking device for chamber lid
