on the Ethernet TCP/IP network. If you connect directly to one of the Master
Nodes using USB, a modem, or a COM port, you will be able to configure that
device but not any other device.
Card Access Controller
(Master Node)
Figure 3.
Notes:
UL Listed TX3-CX Card Access System Installation Manual
10
LT-6906
Copyright 2019
Card Reader A
Card Reader B

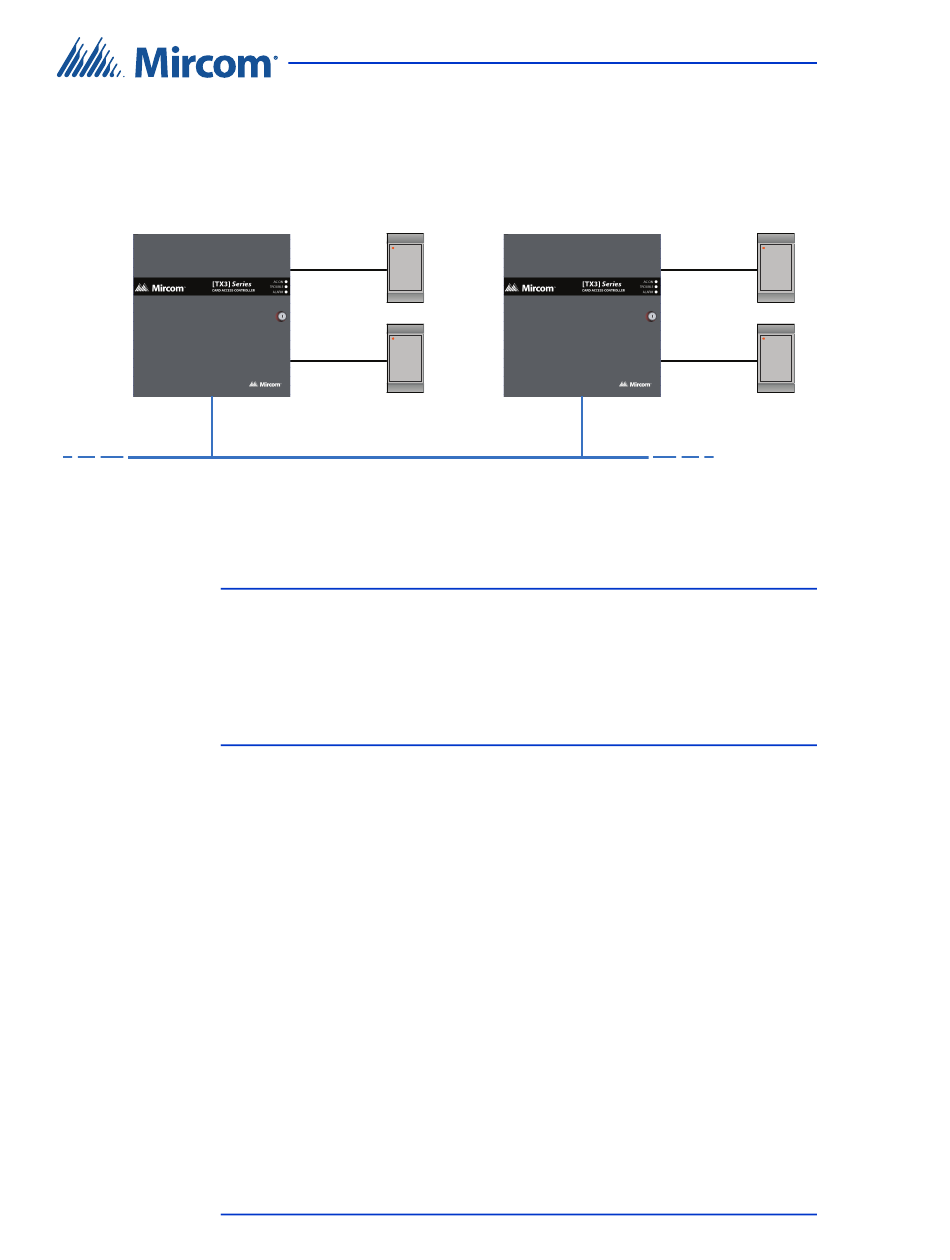

Ethernet Network
Card Access System using an Ethernet TCP/IP network
In order for a panel to be a Master Node:
•
It must be IP capable. Panels that are IP capable have "-A",
"-B", or "-C" at the end of their model names.
•
It must have a TX3-IP IP Module installed if it is a Touch
Screen.
Card Access Controller
(Master Node)
Welcome
Card Reader A
Card Reader B
Version 2
